The Vault Edge is a contemporary style wall mounted hood designed with the Westin Edge baseplate. It features LCD touch controls and an extended filter area which improves performance. Available in stainless steel with powerful 800 cmph airflow and variable warmth dimmable LED light blades, it offers flexible installation with top or rear duct positions and options for internal, remote or recirculating motor configurations.

Key Features

Contemporary wall mounted design with the Westin Edge baseplate.
LCD touch controls with 4 speed push button operation.
Optional 4 speed remote control for added convenience.
Extended filter area designed to improve performance.
Stainless steel finish for a sleek, modern appearance.
2 × 14.4W variable warmth (2700 – 6250K) dimmable LED light blades for adaptable lighting.
Concealed aluminium mesh filters suitable for dishwashers.
Flexible duct position with top or rear connection.
Multiple motor options including internal, remote or recirculating configurations.
High airflow performance of 800 cmph (internal motor).
Maximum 71dB noise level on speed 4 – boost (internal motor).
Energy rating B for the internal motor.
Energy rating A for the remote motor.
Customisable options in finish, lighting, dimensions, power and controls.
Available widths of 900mm or 1200mm to suit different hob sizes.
Adjustable height with 595mm – 970mm telescopic chimney.
Depth of 550mm for effective canopy coverage.

Technical Specifications

Product name	Vault Edge
Type	Contemporary style wall mounted hood
Width	900mm or 1200mm
Depth	550mm
Height	595mm – 970mm telescopic
Finish	Stainless steel
Controls	LCD display with 4 speed push button; optional 4 speed remote control
Lighting	2 × 14.4W variable warmth (2700 – 6250K) dimmable LED light blades
Filters	Concealed aluminium mesh, suitable for dishwashers
Duct position	Top or rear
Motor options	Internal, remote or recirculating
Airflow rating (internal motor)	800 cmph
Maximum dB level (speed 4 – boost)	71dB (internal motor)
Energy rating (internal motor)	B
Energy rating (remote motor)	A
Power supply requirement	3 amp (internal); 5 amp (remote)
Customisable options	Finish, lighting, dimensions, power, controls

Additional Details

The design includes an extended filter area which improves performance, helping to maximise extraction across the width and depth of the hood. Concealed aluminium mesh filters maintain clean lines while remaining suitable for dishwashers.

Variable warmth dimmable LED light blades, adjustable between 2700 – 6250K, allow the lighting to be tailored to suit different kitchen environments. The telescopic height adjustment from 595mm to 970mm supports flexible installation above the cooking area.

Motor configuration options include internal, remote or recirculating, with top or rear duct positions to suit different kitchen layouts and ventilation requirements.

Frequently Asked Questions

What widths is the Vault Edge hood available in?

The hood is available in widths of 900mm or 1200mm.

What type of lighting does the hood use?

It uses 2 × 14.4W variable warmth (2700 – 6250K) dimmable LED light blades.

Are the filters dishwasher safe?

Yes. The hood uses concealed aluminium mesh filters which are suitable for dishwashers.

What motor options are available?

Motor options include internal, remote or recirculating configurations.

What is the airflow performance of the hood?

The airflow rating for the internal motor is 800 cmph.

What is the maximum noise level?

The maximum noise level on speed 4 – boost is 71dB for the internal motor.

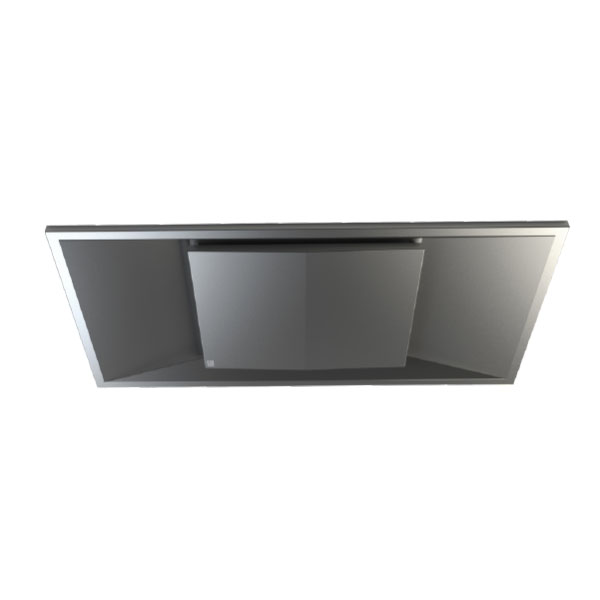

VAULTEDGE900IM

Westin Vault Edge 900 Chimney Hood
