The Vault wall mounted hood is a classic design with contemporary styling, available in 900mm or 1200mm widths. It features sleek tuneable dimmable LED strip lighting, industrial style stainless steel baffle filters and an angled fume catchment area to maximise fume capture. With an LCD display, 4 speed push button controls, optional remote control and flexible motor and ducting options, it offers powerful extraction and modern functionality in a stainless steel finish.

Key Features

Classic wall mounted hood with contemporary styling for a modern yet timeless kitchen look.
Available in 900mm or 1200mm width to suit different hob and kitchen sizes.
Stainless steel finish for a sleek, durable and cohesive appearance.
LCD display with 4 speed push button controls for clear, simple operation.
Optional 4 speed remote control for added convenience in managing extraction settings.
2 x 14.4W variable warmth (2700 – 6250K) dimmable LED light blades providing tuneable strip lighting.
Industrial style stainless steel baffle filters that are suitable for dishwashers for easier cleaning.
Angled fume catchment area designed to maximise fume capture during cooking.
Top or rear duct position for flexible installation to suit kitchen layout.
Multiple motor options including internal, remote or recirculating configurations.
Airflow rating of 800 cmph (internal motor) for effective extraction performance.
Maximum 71dB at speed 4 (boost) with internal motor for clearly stated noise performance.
Internal motor energy rating A for clearly classified efficiency.
Remote motor energy rating B as indicated for remote installation option.
3 amp power requirement (internal) and 5 amp power requirement (remote) for straightforward electrical planning.
Customisable options for finish, lighting, dimensions, power and controls.

Technical Specifications

Product name	Vault wall mounted hood
Width	900mm or 1200mm
Depth	550mm
Height	595mm – 970mm telescopic
Finish	Stainless steel
Controls	LCD display with 4 speed push button, optional 4 speed remote control
Lighting	2 x 14.4W variable warmth (2700 – 6250K) dimmable LED light blades
Filters	Stainless steel baffle, suitable for dishwashers
Duct position	Top or rear
Motor options	Internal, remote or recirculating
Airflow rating (internal motor)	800 cmph
Maximum dB level (speed 4 – boost)	71dB (internal motor)
Energy rating (internal motor)	A
Energy rating (remote motor)	B
Power supply requirement (internal)	3 amp
Power supply requirement (remote)	5 amp
Customisable options	Finish, lighting, dimensions, power, controls

Additional Details and Usage

The wall mounted configuration and telescopic height of 595mm – 970mm allow the hood to be positioned appropriately above the cooking area. The angled fume catchment area is designed to maximise fume capture, helping to contain and extract cooking vapours effectively.

Stainless steel baffle filters are suitable for dishwashers, supporting straightforward cleaning and maintenance. Top or rear duct position options, combined with internal, remote or recirculating motor configurations, provide flexibility to match different installation and ventilation requirements.

Variable warmth dimmable LED light blades, rated at 2 x 14.4W and adjustable between 2700 – 6250K, offer tuneable lighting to suit different kitchen lighting preferences while illuminating the cooking area.

Frequently Asked Questions

What widths is the Vault wall mounted hood available in?

The Vault wall mounted hood is available in two widths: 900mm and 1200mm.

What type of filters does this hood use?

It uses industrial style stainless steel baffle filters, which are suitable for dishwashers.

What lighting is included and can it be adjusted?

The hood includes 2 x 14.4W variable warmth (2700 – 6250K) dimmable LED light blades, providing tuneable strip lighting.

What motor and ducting options are available?

Motor options include internal, remote or recirculating configurations. Ducting can be positioned at the top or rear of the hood.

What are the energy ratings for the internal and remote motors?

The internal motor has an energy rating of A, while the remote motor has an energy rating of B.

Are there any customisable options?

Yes. Customisable options include finish, lighting, dimensions, power and controls.

VAULT900SSEM

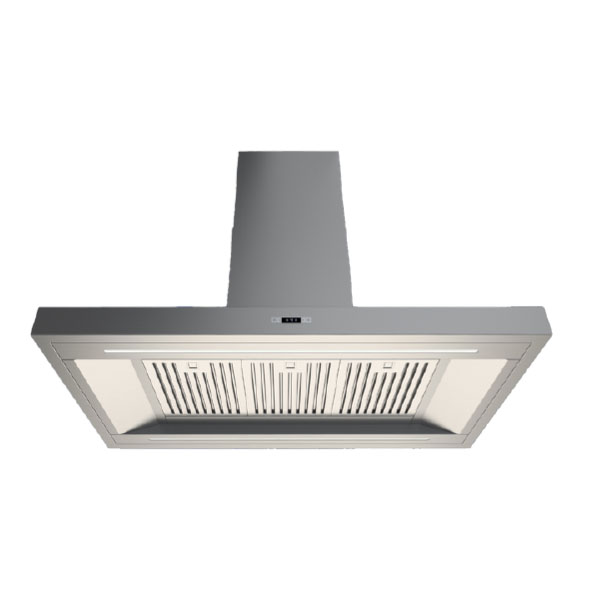

Westin Vault 900 Chimney Hood - External Motor
