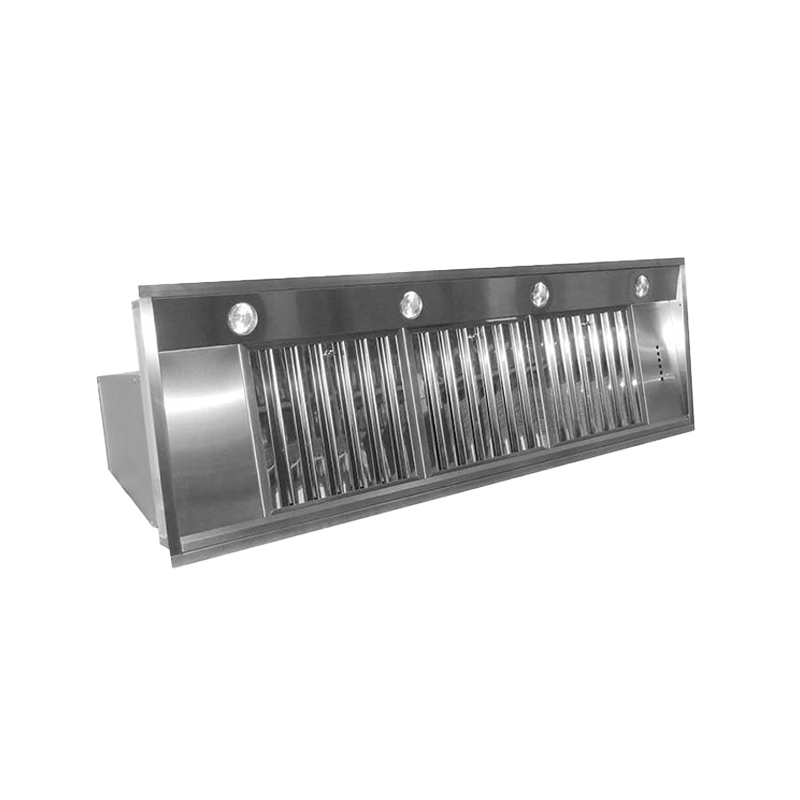

The Bloque is a robust ceiling hood designed to deliver a more industrial look with stainless steel baffle filters. Available in 860 mm or 1400 mm widths, it combines stainless steel construction, 4–speed push button controls and tunable LED light bars. With an internal motor airflow rating of 800 cmph and top or rear duct position, it suits users seeking strong extraction performance and durable, easy–to–clean filters.

Key Features

Robust industrial design – described as a robust unit offering a more industrial look with stainless steel baffle filters.
Two width options – available in 860 mm or 1400 mm to suit different ceiling and hob sizes.
Stainless steel finish – constructed in stainless steel for a premium, durable appearance.
4–speed push button controls – simple operation with four speeds and optional remote control.
Tunable LED light bars – 2700K–6500K light bars (1 on 860 mm, 2 on 1400 mm models) for adjustable lighting tone.
Stainless steel baffle filters – durable filters that are suitable for dishwashers for easier cleaning.
Flexible duct position – top or rear duct position for installation flexibility.
Internal motor configuration – internal motor option with 800 cmph airflow rating.
Noise level information – maximum 71 dB at speed 4 (boost) with internal motor.
Energy rating A – energy rating (internal motor) shown as A.
Dishwasher suitability – stainless steel baffle filters are stated as suitable for dishwashers.
Customisable options – finish, lighting, dimensions and power are listed as customisable options.

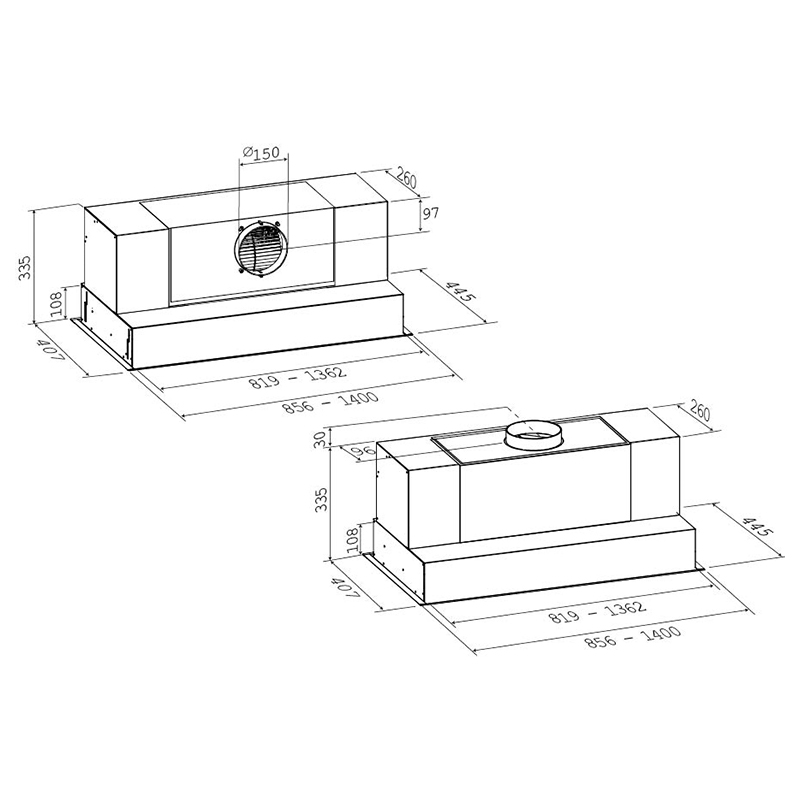

Technical Specifications

Product name	Bloque
Width	8600MM OR 1400MM
Depth	445MM
Height	335MM
Finish	STAINLESS STEEL
Controls	4 SPEED PUSH BUTTON, OPTIONAL REMOTE CONTROL
Lighting	TUNABLE LED LIGHT BARS 2700K–6500K (1 X ON 860MM, 2 X ON 1400MM)
Filters	STAINLESS STEEL BAFFLE, SUITABLE FOR DISHWASHERS
Duct position	TOP OR REAR
Motor option	INTERNAL ONLY
Energy rating (internal motor)	A
Energy rating (remote motor)	N/A
Airflow rating (internal motor)	800 CMPH
Maximum dB level (speed 4 – boost)	71DB (INTERNAL MOTOR)
Power supply requirement	3 AMP
Customisable options	FINISH, LIGHTING, DIMENSIONS, POWER
Cutout size	825MM/1365MM X 410MM

Additional Details & Usage

The Bloque ceiling hood is designed with stainless steel baffle filters that are suitable for dishwashers, supporting straightforward cleaning and maintenance. The tunable LED light bars provide adjustable lighting from 2700K to 6500K, with one light bar on the 860 mm model and two on the 1400 mm model. Top or rear duct positions allow for flexible installation with an internal motor configuration only.

Frequently Asked Questions

What widths is the Bloque ceiling hood available in?

The Bloque is available in 860 mm or 1400 mm widths.

What type of filters does the Bloque use?

It uses stainless steel baffle filters, which are stated as suitable for dishwashers.

How is the Bloque controlled?

The Bloque has 4–speed push button controls, with an optional remote control available.

What is the airflow and noise level of the internal motor?

The internal motor has an airflow rating of 800 cmph and a maximum noise level of 71 dB at speed 4 (boost).

Is the lighting adjustable?

Yes, the Bloque features tunable LED light bars adjustable from 2700K to 6500K, with one bar on the 860 mm model and two on the 1400 mm model.
