The Westin Prime is a versatile and discreet cooker hood designed to fit into a chimney or kitchen furniture. Available in a wide range of sizes and a stainless steel finish, it offers four-speed push button controls with optional remote control, variable warmth dimmable LED lighting and concealed aluminium mesh filters suitable for dishwashers. With flexible duct positions and internal, remote or recirculating motor options, it is intended for effective, built-in kitchen extraction.

Key Features

Discreet built-in design – designed to fit into a chimney or kitchen furniture for a subtle look.
Wide range of widths – available in 520mm, 700mm, 800mm, 900mm and 1100mm models.
Stainless steel finish – durable stainless steel construction for a sleek appearance.
4-speed push button controls – four extraction speeds, with optional remote control for added convenience.
Variable warmth LED lighting – 2 × 2.6W dimmable LEDs (3 × on 1100mm model) with 3000–6000K adjustable colour temperature.
Concealed aluminium mesh filters – filters are suitable for dishwashers and hidden within the hood.
Flexible duct position – top outlet with rear, left or right options that must be specified.
Motor configuration choice – internal, remote or recirculating motor options.
High airflow performance – airflow rating of 800 cmph with internal motor.
Maximum noise level – 71dB at speed 4 (boost) with internal motor.
Internal power requirement – 3 amp supply for internal motor configuration.
Remote power requirement – 5 amp supply for remote motor configuration.
Defined cut-out sizes – cut-out: 500mm/680mm/780mm/880mm/1080mm × 266mm.
Customisable options – finish, lighting, dimensions and power can be customised.
Energy rating information – energy rating for internal motor and remote motor is stated but specific class is not stated in source.

Technical Specifications

Product name	Prime
Width options	520mm, 700mm, 800mm, 900mm, 1100mm
Depth	292mm
Height	280mm
Finish	Stainless steel
Controls	4 speed push button, optional remote control
Lighting	2 × 2.6W variable warmth (3000–6000K) dimmable LED (3 × on 1100 model)
Filters	Concealed aluminium mesh, suitable for dishwashers
Duct position	Top (rear, left or right – must be specified)
Motor options	Internal, remote or recirculating
Energy rating (internal motor)	Not stated in source
Energy rating (remote motor)	Not stated in source
Airflow rating (internal motor)	800 cmph
Maximum dB level (speed 4 – boost)	71dB (internal motor)
Power supply requirement (internal)	3 amp (internal)
Power supply requirement (remote)	5 amp (remote)
Customisable options	Finish, lighting, dimensions, power
Cut-out size	500mm/680mm/780mm/880mm/1080mm × 266mm

Additional Details and Usage

This cooker hood is designed to be built into a chimney or kitchen furniture, providing a discreet extraction solution. The duct position is on the top of the unit, with rear, left or right options that must be specified to suit the kitchen layout.

Concealed aluminium mesh filters are suitable for dishwashers, allowing straightforward cleaning and maintenance. The 4 speed push button controls, with an optional remote control, provide flexible management of extraction levels.

Variable warmth dimmable LED lighting between 3000–6000K offers adjustable illumination over the cooking area, with two LEDs on most sizes and three LEDs on the 1100mm model.

Frequently Asked Questions

What widths is the Westin Prime cooker hood available in?

The hood is available in 520mm, 700mm, 800mm, 900mm and 1100mm widths, with corresponding cut-out sizes of 500mm, 680mm, 780mm, 880mm and 1080mm × 266mm.

Where is this cooker hood designed to be installed?

It is designed to fit into a chimney or kitchen furniture, providing a discreet built-in extraction solution.

What type of filters does the hood use and how are they cleaned?

The hood uses concealed aluminium mesh filters that are suitable for dishwashers, allowing easy cleaning.

What lighting is provided on the Westin Prime?

It features 2 × 2.6W variable warmth (3000–6000K) dimmable LED lights, with 3 × LEDs on the 1100mm model.

What motor and power supply options are available?

The hood can be configured with internal, remote or recirculating motor options. The internal motor requires a 3 amp power supply, while the remote motor requires a 5 amp supply.

How loud is the hood at maximum speed?

With the internal motor at speed 4 (boost), the maximum noise level is 71dB.

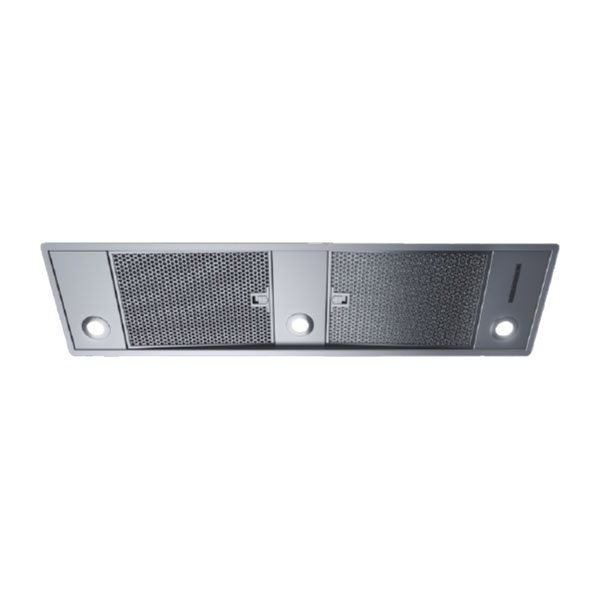

PRIME1100IM
