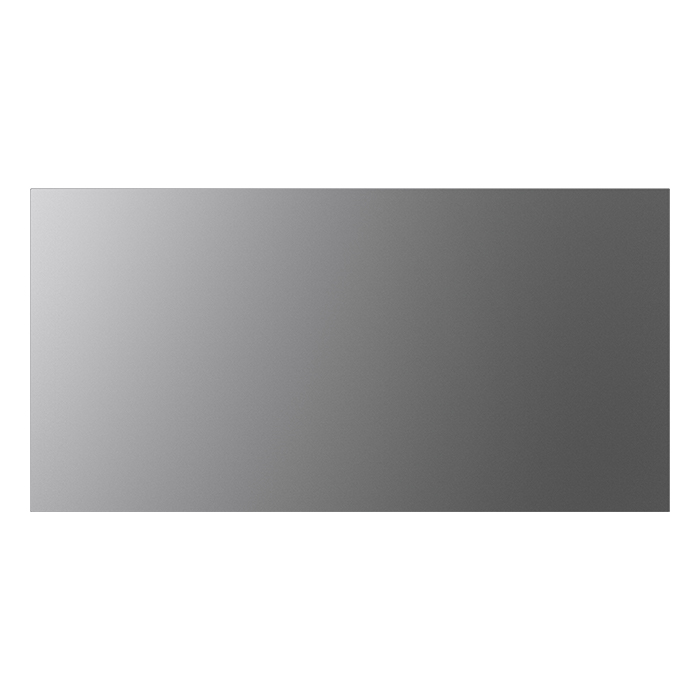

The V-ZUG WarmingDrawer V4000 31 is a 60 cm warming drawer with a platinum mirror glass front and push/pull handle. Designed for convenient plate, cup and food warming, it offers six temperature levels with electronic temperature control and a glass heating plate. With space for up to 40 plates and a stainless steel interior on a stable telescopic fully extending runner, it suits users seeking flexible warming, low temperature cooking and specialised functions such as yoghurt preparation and dough proving.

Key Features

60 cm warming drawer design with a platinum mirror glass front and push/pull handle.
Spacious capacity with capacity for crockery: 20 and capacity for plates: 40, volume 49.4 l.
Six temperature levels with electronic temperature control for flexible warming tasks.
Glass heating plate and stainless steel interior for efficient heat distribution.
Stable telescopic fully extending runner for smooth opening and access.
TouchControl operation for straightforward control of settings.
Dedicated warming functions including plate warming, cup warming and food warming.
Additional functions such as yoghurt preparation, proof dough and low tempurature cooking.
Sabbath mode listed as a kitchen drawer feature.
Indoor light to illuminate the drawer interior.
Safety switch-off function for added safety during operation.
Environmental footprint data including Ecopoints and carbon footprint for device and end of life.
Energy-efficient connection with connected load of 0.81 kW and consumption when off of 0 W.
Warranty: 2 + 8 years as stated under service and interfaces.

Technical Specifications

Product category	Drawer
Type	WDEE6V1C
Standard width	60 cm
Standard height	31.2 cm
Front design	Platinum mirror glass
Handle	Push/pull
Niche height	312 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	310 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	20
Capacity for plates	40
Volume	49.4 l
Declared weight	25 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable	1.7 m
Kitchen drawer features	Sabbath mode; Sabbath mode; Stable telescopic fully extending runner; Drawer type: warming drawer; Number of temperature levels: 6; Electronic temperature control; Glass heating plate; Stainless steel interior
Functions	Favourites; Plate warming; Food warming; Wire shelf; Cup warming; Yoghurt preparation; Indoor light; Proof dough; Low tempurature cooking; Safety switch-off
Warranty	2 + 8 years

Additional Details and Usage

The drawer is specified as a warming drawer with six temperature levels controlled electronically, using a glass heating plate and stainless steel interior. It runs on a 220-240 V~ connection with a connected load of 0.81 kW and 10 A fuse protection. Plug options listed include AS/NZS 3112, 1363/13A and CH1-10P, with a 1.7 m connection cable.

Kitchen drawer features include Sabbath mode (listed twice), a stable telescopic fully extending runner and indoor light. The appliance supports a range of functions: Favourites, plate warming, food warming, cup warming, wire shelf use, yoghurt preparation, proof dough, low tempurature cooking and safety switch-off.

Environmental footprint values are provided for Ecopoints and carbon footprint for both the device and end of life, along with corresponding monetary equivalents in CHF.

Frequently Asked Questions

What are the dimensions of the V-ZUG WarmingDrawer V4000 31?

The niche dimensions are 312 mm (height), 600 mm (width) and 550 mm (depth). The appliance itself has a height of 310 mm, width of 596 mm and depth of 547 mm. The standard width is 60 cm and the standard height is 31.2 cm.

How much crockery can the warming drawer hold?

The warming drawer has capacity for crockery: 20 and capacity for plates: 40, with a volume of 49.4 l and a declared weight of 25 kg.

Which functions does the WarmingDrawer V4000 31 offer?

Listed functions are Favourites, plate warming, food warming, wire shelf, cup warming, yoghurt preparation, indoor light, proof dough, low tempurature cooking and safety switch-off.

How is the drawer operated and what temperature control does it have?

The drawer uses TouchControl for operation. It offers six temperature levels with electronic temperature control and a glass heating plate.

What connection and power requirements does the appliance have?

The type of connection (1) is 220-240 V~ with frequency (1) of 50-60 Hz. Connected loads (1) are 0.81 kW with fuse protection (1) of 10 A. The output – standby off is 0.44 W, and consumption when off is 0 W.

What warranty is provided?

Under service and interfaces, a warranty of 2 + 8 years is stated.

WDV431P

V-Zug WDV431P WarmingDrawer V4000 31
