The V-ZUG WarmingDrawer V4000 31 is a 60 cm warming drawer with a black mirror glass front and push/pull handle. Designed for built-in kitchen niches, it offers electronic temperature control with six levels and a glass heating plate. It can warm plates, cups and food, prepare yoghurt, proof dough and support low temperature cooking. With a generous 49.4 l volume, telescopic runners and indoor light, it provides practical and flexible warming performance.

Key Features

Product category – warming drawer: Drawer type specifically designed as a warming drawer.
Standard 60 cm width: Fits a standard 600 mm kitchen niche with 312 mm niche height.

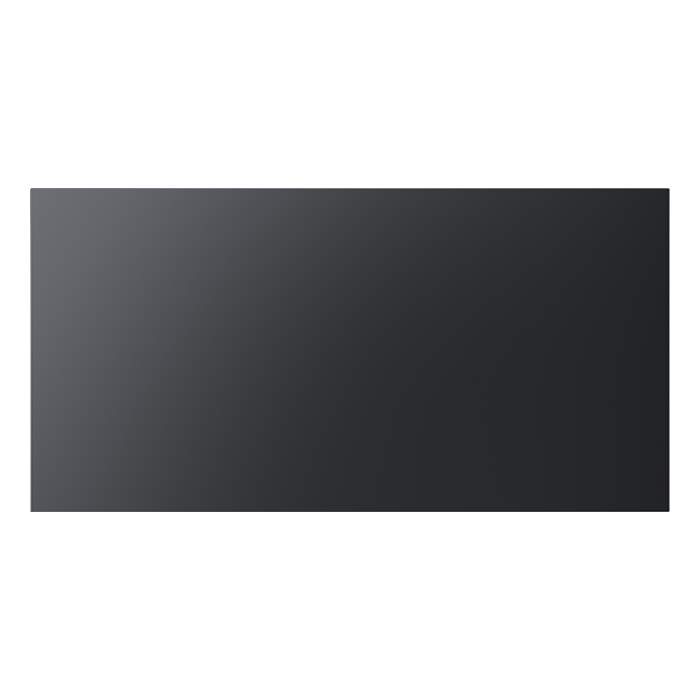

Black mirror glass front: Modern front design with a sleek black mirror glass finish.
Push/pull handle: Convenient push/pull handle operation.
TouchControl interface: Controls operated via TouchControl for simple use.
Six temperature levels: Number of temperature levels: 6 with electronic temperature control.
Glass heating plate: Even heat distribution via a glass heating plate.
Generous capacity: Capacity for crockery: 20 and plates: 40 with a volume of 49.4 l.
Stable telescopic fully extending runner: Drawer runs on stable, fully extending telescopic runners.
Versatile warming functions: Plate warming, food warming, cup warming and yoghurt preparation.
Low temperature cooking and dough proofing: Supports low tempurature cooking and proof dough functions.
Sabbath mode: Equipped with Sabbath mode.
Indoor light and wire shelf: Includes indoor light and a wire shelf for flexible loading.
Safety switch-off: Safety switch-off function for added security.
Extended warranty: Warranty: 2 + 8 years.
Multiple plug options: Plug type AS/NZS 3112, 1363/13A and CH1-10P.

Technical Specifications

Product category	Drawer
Type	WDEE6V1C
Article number	3403100002
EAN code	7630029446133
Standard width	60 cm
Standard height	31.2 cm
Front design	Black mirror glass
Handle	Push/pull
Niche height	312 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	310 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	20
Capacity for plates	40
Volume	49.4 l
Declared weight	25 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable	1.7 m
Warranty	2 + 8 years

Functions and Usage

This warming drawer offers a range of dedicated functions supported by electronic temperature control and a glass heating plate.

Plate warming
Food warming
Cup warming
Yoghurt preparation
Proof dough
Low tempurature cooking
Favourites function
Indoor light
Wire shelf
Sabbath mode
Safety switch-off

Frequently Asked Questions

What are the niche dimensions required for installation?

The required niche dimensions are a niche height of 312 mm, a niche width of 600 mm and a niche depth of 550 mm.

How much crockery can the warming drawer hold?

The drawer has a capacity for 20 pieces of crockery and 40 plates, with a total volume of 49.4 l.

How many temperature levels are available?

The warming drawer has 6 temperature levels and uses electronic temperature control.

Which warming and cooking functions are included?

Functions include plate warming, food warming, cup warming, yoghurt preparation, proof dough, low tempurature cooking, Favourites, indoor light and a wire shelf.

What safety and special modes does it provide?

The appliance is equipped with Sabbath mode and a safety switch-off function.

What is the warranty period?

The stated warranty is 2 + 8 years.
