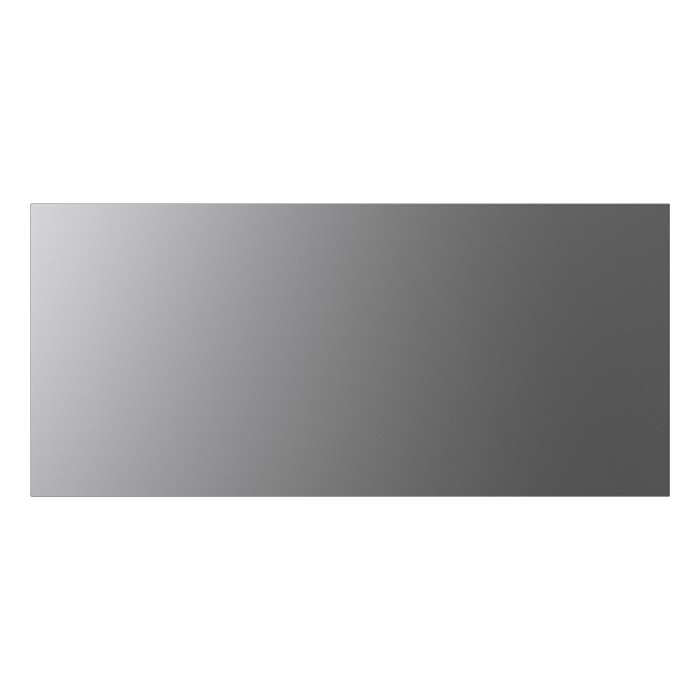

The V-ZUG WarmingDrawer V4000 28 is a 60 cm built-in warming drawer with a platinum mirror glass front and push/pull handle. It offers electronic TouchControl operation, six temperature levels and a glass heating plate in a stainless steel interior. With space for up to 40 plates and functions such as plate and food warming, yoghurt preparation and low temperature cooking, it is designed for convenient kitchen use and versatile warming applications.

Key Features

60 cm warming drawer in the drawer product category with type designation WDED6V1C.
Platinum mirror glass front with a push/pull handle for a handle-free look and easy opening.
Spacious interior with capacity for 20 sets of crockery and up to 40 plates, volume 49.4 l.
TouchControl operation for simple, electronic control of settings and functions.
Six temperature levels with electronic temperature control for flexible warming performance.
Glass heating plate and stainless steel interior for effective heat distribution.
Stable telescopic fully extending runner for smooth access to the contents of the drawer.
Versatile functions including plate warming, food warming, cup warming, proof dough, yoghurt preparation and low temperature cooking.
Convenience features such as Favourites function, indoor light and wire shelf.
Safety switch–off for added operational safety.
Sabbath mode available as a dedicated operating mode.
Warranty 2 + 8 years stated for service and support.
Multiple plug types (AS/NZS 3112, 1363/13A, CH1-10P) and 1.7 m connection cable for electrical connection.

Technical Specifications

Product category	Drawer
Type	WDED6V1C
Standard width	60 cm
Standard height	28.3 cm
Front design	Platinum mirror glass
Handle	Push/pull
Niche height	283 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	281 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	20
Capacity for plates	40
Volume	49.4 l
Declared weight	24 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220–240 V~
Frequency (1)	50–60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type A	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable length	1.7 m
Drawer type	Warming drawer
Number of temperature levels	6
Electronic temperature control	Yes
Warranty	2 + 8 years

Functions and Usage

The warming drawer is designed with a stable telescopic fully extending runner, making it easy to load and unload crockery, plates and cups. TouchControl allows straightforward selection of temperature levels and functions.

Plate warming
Food warming
Cup warming
Yoghurt preparation
Proof dough
Low tempurature cooking
Favourites function
Indoor light
Wire shelf
Sabbath mode
Safety switch–off

The glass heating plate and stainless steel interior support the various warming and low temperature applications listed above.

Frequently Asked Questions

What are the niche dimensions required for installation?

The required niche dimensions are a niche height of 283 mm, niche width of 600 mm and niche depth of 550 mm.

How many plates can the WarmingDrawer V4000 28 hold?

The drawer has capacity for 20 sets of crockery and up to 40 plates, with an internal volume of 49.4 l.

How is the warming drawer controlled?

The warming drawer uses TouchControl for operation and offers six temperature levels with electronic temperature control.

Which functions are available on this warming drawer?

Available functions include plate warming, food warming, cup warming, yoghurt preparation, proof dough, low tempurature cooking, Favourites, indoor light, Sabbath mode, safety switch–off and use of a wire shelf.

What is the electrical connection and power rating?

The drawer connects to 220–240 V~ at 50–60 Hz with a connected load of 0.81 kW and 10 A fuse protection. Output in standby off mode is 0.44 W and consumption when off is 0 W.

What warranty is provided?

The stated warranty for this warming drawer is 2 + 8 years.
