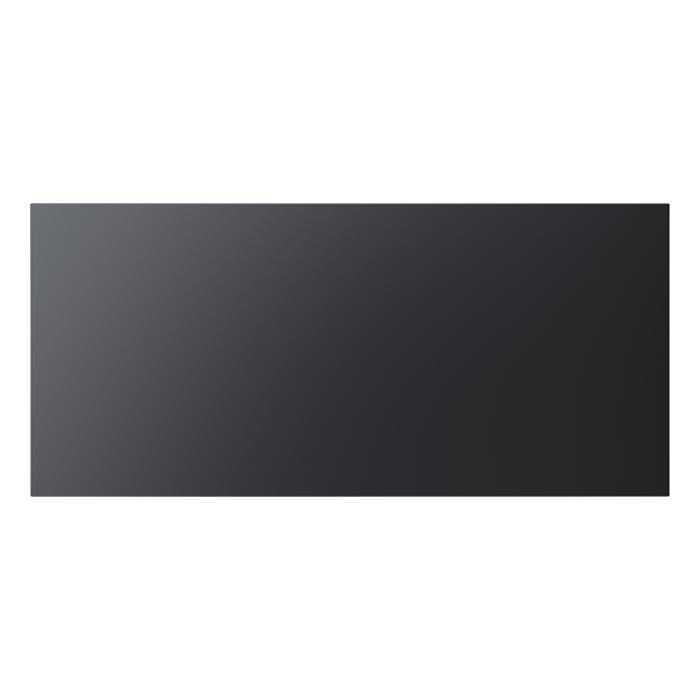

The V-ZUG WarmingDrawer V4000 28 (type WDED6V1C) is a 60 cm warming drawer with a black mirror glass front and push/pull handle. Designed for kitchens requiring integrated warming, it offers six temperature levels, electronic temperature control and a glass heating plate. With a 49.4 l volume and stainless steel interior, it can warm plates, cups and food, as well as support functions such as low temperature cooking, dough proving and yoghurt preparation.

Key Features

Product category: Drawer – warming drawer type
Design: Black mirror glass front with push/pull handle
Standard size: 60 cm width, 28.3 cm standard height
Generous capacity: 49.4 l volume, holds 20 pieces of crockery and 40 plates
Temperature control: Six temperature levels with electronic temperature control
Heating system: Glass heating plate with stainless steel interior
Convenient access: Stable telescopic fully extending runner
Dedicated warming functions: Plate warming, cup warming and food warming
Additional cooking options: Low temperature cooking, dough proving and yoghurt preparation
User features: Favourites function and indoor light
Safety: Safety switch–off
Sabbath mode: Dedicated Sabbath mode functionality
Controls: TouchControl operation
Warranty: 2 + 8 years

Technical Specifications

Article number	3403000002
EAN code	7630029446096
Product category	Drawer
Drawer type	Warming drawer
Type designation	WDED6V1C
Standard width	60 cm
Standard height	28.3 cm
Front design	Black mirror glass
Handle	Push/pull
Niche height	283 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	281 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	20
Capacity for plates	40
Volume	49.4 l
Declared weight	24 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable length	1.7 m
Warranty	2 + 8 years

Functions and Usage

This warming drawer offers a range of functions including plate warming, cup warming, food warming, proof dough, low temperature cooking and yoghurt preparation. A wire shelf and indoor light support convenient use of the interior space.

Six temperature levels and electronic temperature control help tailor warming and cooking tasks. The stable telescopic fully extending runner allows easy access to crockery and dishes.

Additional features include Sabbath mode and a safety switch–off for added convenience and safety.

Frequently Asked Questions

What is the capacity of the V-ZUG WarmingDrawer V4000 28?

The drawer has a volume of 49.4 l and can hold 20 pieces of crockery and 40 plates.

What are the installation niche dimensions?

The niche height is 283 mm, niche width 600 mm and niche depth 550 mm.

How is the warming drawer operated?

The appliance uses TouchControl operation and has a push/pull handle for opening and closing.

Which functions does the warming drawer provide?

Functions include Favourites, plate warming, food warming, cup warming, yoghurt preparation, proof dough, low temperature cooking, indoor light and safety switch–off.

Does the drawer include Sabbath mode?

Yes, the kitchen drawer features include Sabbath mode.

What is the connected load and power supply requirement?

The connected load is 0.81 kW with a 220-240 V~ supply, 50-60 Hz frequency and 10 A fuse protection.
