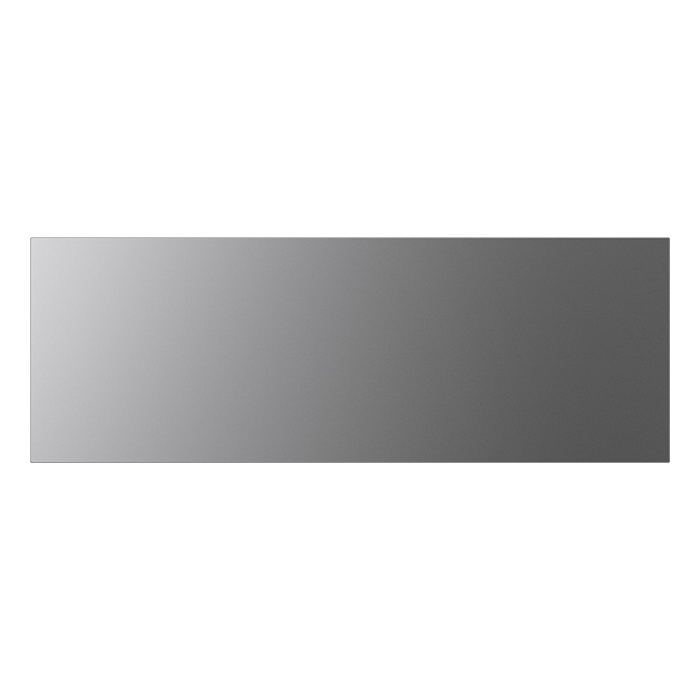

The V-ZUG WarmingDrawer V4000 22 is a 60 cm warming drawer with a platinum mirror glass front and push/pull handle. Designed for kitchens requiring a 220 mm niche height, it offers electronic temperature control with six levels, a glass heating plate and stainless steel interior. With capacity for up to 30 plates, functions including plate and food warming, yoghurt preparation, proofing dough and low temperature cooking, it provides versatile support for modern cooking.

Key Features

60 cm warming drawer design with standard height of 22 cm for integrated kitchen installation.
Platinum mirror glass front with convenient push/pull handle for a sleek appearance.
Generous crockery capacity – holds 15 sets of crockery and up to 30 plates with a 36.4 l volume.
Electronic temperature control with 6 temperature levels and glass heating plate.
Versatile warming functions including plate warming, food warming and cup warming.
Additional cooking functions such as yoghurt preparation, proof dough and low tempurature cooking.
Stable telescopic fully extending runner for easy access to the stainless steel interior.
TouchControl operation for simple and modern user interaction.
Sabbath mode feature listed for specific usage requirements.
Indoor light to illuminate the interior while loading and unloading.
Safety switch-off function for added safety during operation.
Warranty: 2 + 8 years as stated for service and interfaces.

Technical Specifications

Product category	Drawer
Type	WDEC6V1C
Standard width	60 cm
Standard height	22 cm
Front design	Platinum mirror glass
Handle	Push/pull
Niche height	220 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	218 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	15
Capacity for plates	30
Volume	36.4 l
Declared weight	22 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable	1.7 m
Warranty	2 + 8 years

Functions and Usage

This warming drawer is equipped with electronic temperature control and a glass heating plate, offering six selectable temperature levels. The stainless steel interior is mounted on a stable telescopic fully extending runner for convenient loading and unloading.

Plate warming
Food warming
Cup warming
Yoghurt preparation
Proof dough
Low tempurature cooking
Favourites function
Indoor light
Sabbath mode
Safety switch-off

Frequently Asked Questions

What are the niche dimensions required for installation?

The required niche dimensions are a height of 220 mm, width of 600 mm and depth of 550 mm.

How many plates can the warming drawer hold?

The drawer has capacity for 15 sets of crockery and up to 30 plates, with an internal volume of 36.4 l.

Which functions are available on the WarmingDrawer V4000 22?

Available functions include Favourites, plate warming, food warming, cup warming, yoghurt preparation, proof dough, low tempurature cooking, indoor light, Sabbath mode and safety switch-off.

What type of controls does this warming drawer use?

The appliance is operated via TouchControl and offers electronic temperature control with six temperature levels.

What is the power connection and load?

The drawer connects to 220-240 V~ at 50-60 Hz with a connected load of 0.81 kW and 10 A fuse protection. Plug types listed are AS/NZS 3112, 1363/13A and CH1-10P.

What warranty is provided?

The stated warranty for this product is 2 + 8 years.
