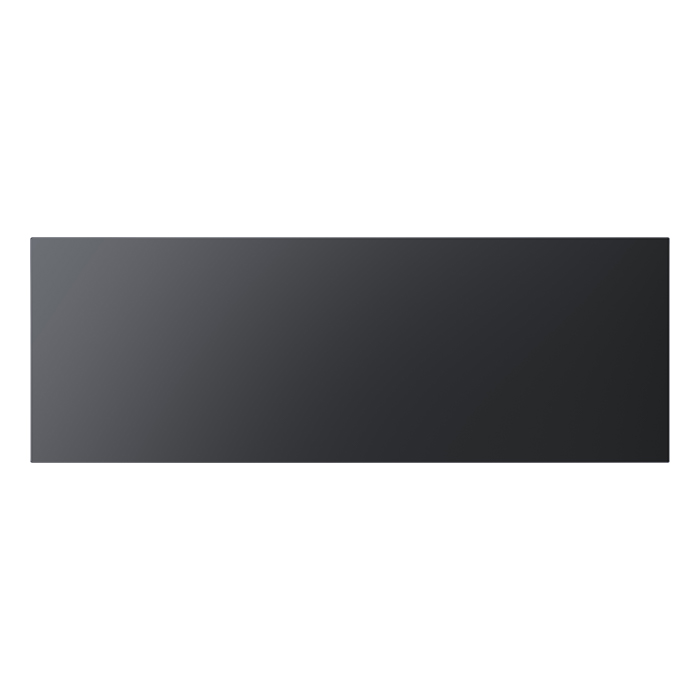

The V-ZUG WarmingDrawer V4000 22 is a 60 cm warming drawer with a black mirror glass front and push/pull handle. It offers six temperature levels with electronic temperature control and a glass heating plate. With a 36.4 l volume, it is suitable for warming plates, cups and food, as well as yoghurt preparation, dough proving and low temperature cooking, making it a versatile addition to kitchens using compatible electrical connections.

Key Features

60 cm warming drawer design with standard height of 22 cm and black mirror glass front.
Push/pull handle for smooth opening and closing of the drawer.
Stable telescopic fully extending runner for easy access to crockery and food.
Six temperature levels with electronic temperature control for flexible warming.
Glass heating plate and stainless steel interior designed for warming use.
Multiple functions including plate warming, food warming, cup warming, yoghurt preparation, dough proofing and low temperature cooking.
TouchControl operation for intuitive control of settings and functions.
Indoor light to illuminate the drawer interior during use.
Sabbath mode feature listed among the kitchen drawer functions.
Safety switch–off function included among available features.
Generous capacity for 30 plates and 15 sets of crockery, with 36.4 l volume.
Connected load of 0.81 kW with 220–240 V~ and 50–60 Hz power supply.
Multiple plug types listed: AS/NZS 3112, 1363/13A and CH1-10P.
Warranty: 2 + 8 years stated under service and interfaces.
Environmental footprint data including Ecopoints, carbon footprint and monetary equivalents for device and end of life.

Technical Specifications

Product category	Drawer
Type	WDEC6V1C
Standard width	60 cm
Standard height	22 cm
Front design	Black mirror glass
Handle	Push/pull
Niche height	220 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	218 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	15
Capacity for plates	30
Volume	36.4 l
Declared weight	22 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable	1.7 m
Drawer type	warming drawer
Number of temperature levels	6
Electronic temperature control	Yes (stated as feature)
Glass heating plate	Yes (stated as feature)
Stainless steel interior	Yes (stated as feature)
Sabbath mode	Listed twice among features
Stable telescopic fully extending runner	Yes (stated as feature)
Functions	Favourites; Plate warming; Food warming; Cup warming; Yoghurt preparation; Indoor light; Proof dough; Low tempurature cooking; Safety switch-off
Warranty	2 + 8 years

Additional Details and Usage

The drawer is described as a warming drawer with six temperature levels, electronic temperature control and a glass heating plate, supporting precise warming applications.

Functions listed include plate warming, food warming, cup warming, yoghurt preparation, indoor light, proof dough, low tempurature cooking and safety switch–off. A Favourites function is also specified.

Kitchen drawer features include Sabbath mode (listed twice), a stable telescopic fully extending runner, stainless steel interior and the warming drawer type designation.

Information on installation, detailed operating steps, cleaning procedures or specific temperature values is Not stated in source.

Frequently Asked Questions

What are the dimensions of the WarmingDrawer V4000 22?

The niche dimensions are 220 mm height, 600 mm width and 550 mm depth. The appliance itself has a height of 218 mm, width of 596 mm and depth of 547 mm.

How much crockery can the drawer hold?

The capacity is stated as 15 for crockery and 30 for plates, with a total volume of 36.4 l.

Which warming and cooking functions are available?

The available functions are Favourites, plate warming, food warming, cup warming, yoghurt preparation, indoor light, proof dough, low tempurature cooking and safety switch–off.

What power supply and plug options are specified?

The connection type is 220-240 V~ with a frequency of 50-60 Hz, connected load of 0.81 kW and 10 A fuse protection. Plug types listed are AS/NZS 3112, 1363/13A and CH1-10P, with a 1.7 m connection cable.

What warranty is stated for this warming drawer?

The warranty is specified as 2 + 8 years.

Is any safety feature mentioned?

Yes, a safety switch–off function is listed among the available functions.

WDV422B

V-Zug WDV422B WarmingDrawer V4000 22
