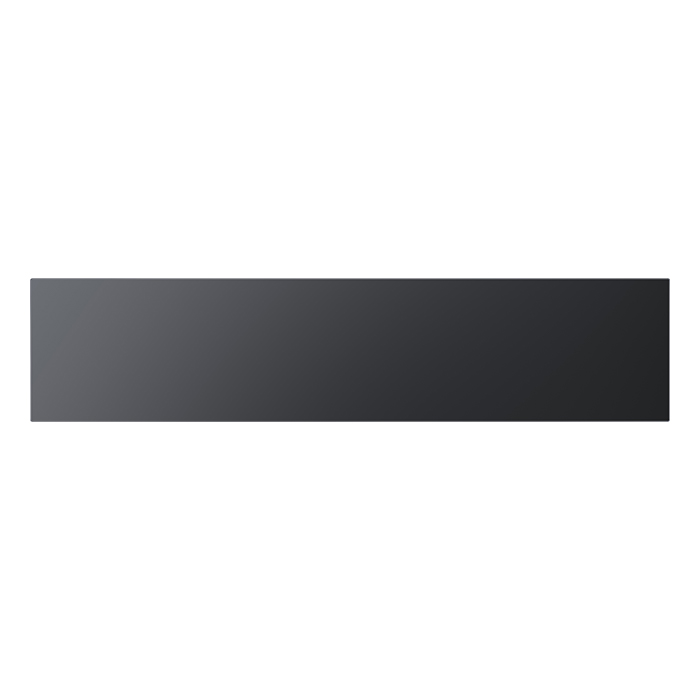

The V-ZUG WarmingDrawer V4000 14 is a 60 cm warming drawer with a black mirror glass front and push/pull handle. It offers electronic TouchControl operation, six temperature levels and a glass heating plate with a stainless steel interior. With capacity for 6 sets of crockery and 14 plates, it is designed for plate, cup and food warming, as well as yoghurt preparation, dough proving and low temperature cooking.

Key Features

60 cm warming drawer with standard width 60 cm and standard height 14.4 cm.
Black mirror glass front design with convenient push/pull handle.
TouchControl operation for simple, electronic control of functions and temperature.
Six temperature levels with electronic temperature control for flexible warming and cooking uses.
Glass heating plate and stainless steel interior for durable, easy-care warming performance.
Generous capacity for 6 sets of crockery and 14 plates with a 20 l volume.
Multiple warming functions including plate warming, cup warming, food warming and yoghurt preparation.
Special programmes such as proof dough, low tempurature cooking and favourites.
Stable telescopic fully extending runner for safe and easy access to contents.
Indoor light for clear visibility inside the drawer.
Sabbath mode listed under kitchen drawer features.
Safety switch-off function for added operational safety.
Energy-conscious design with 0.44 W output in standby off and 0 W consumption when off.
Extended warranty of 2 + 8 years.

Technical Specifications

Article number	3402600003
EAN code	7630029445952
Product category	Drawer
Type	WDEA6V1C
Standard width	60 cm
Standard height	14.4 cm
Front design	Black mirror glass
Handle	Push/pull
Niche height	144 mm
Niche width	600 mm
Niche depth	550 mm
Appliance height	142 mm
Appliance width	596 mm
Appliance depth	547 mm
Capacity for crockery	6
Capacity for plates	14
Volume	20 l
Declared weight	20 kg
Controls	TouchControl
Ecopoints end of life (EP)	362168
Ecopoints device (EP)	192998
Carbon footprint end of life	114 kg CO2e
Carbon footprint device	58 kg CO2e
Monetary equivalent end of life	149 CHF
Monetary equivalent device	96 CHF
Output – standby off	0.44 W
Consumption when off	0 W
Type of connection (1)	220-240 V~
Frequency (1)	50-60 Hz
Connected loads (1)	0.81 kW
Fuse protection (1)	10 A
Plug type	AS/NZS 3112
Plug type B	1363/13A
Plug type C	CH1-10P
Connection cable	1.7 m
Drawer type	warming drawer
Number of temperature levels	6
Electronic temperature control	Yes (stated as present)
Warranty	2 + 8 years

Functions and Usage

This warming drawer is equipped with a range of dedicated functions and features designed to support everyday kitchen tasks and specialised applications.

Plate warming function for heating plates before serving.
Food warming function to keep prepared dishes warm.
Cup warming function suitable for warming cups.
Yoghurt preparation function for preparing yoghurt.
Proof dough function to support dough proving.
Low tempurature cooking function for gentle cooking at low temperatures.
Favourites function for storing preferred settings.
Indoor light for illumination inside the drawer.
Sabbath mode listed twice under kitchen drawer features.
Safety switch-off to enhance operational safety.
Stable telescopic fully extending runner for smooth, full extension of the drawer.

Frequently Asked Questions

What are the installation dimensions for the warming drawer?

The niche dimensions are a height of 144 mm, width of 600 mm and depth of 550 mm. The appliance itself has a height of 142 mm, width of 596 mm and depth of 547 mm.

How much crockery can the V-ZUG WarmingDrawer V4000 14 hold?

The drawer has capacity for 6 sets of crockery and 14 plates, with a total volume of 20 l.

Which functions are available on this warming drawer?

Available functions include Favourites, plate warming, food warming, cup warming, yoghurt preparation, indoor light, proof dough, low tempurature cooking and safety switch-off.

How is the temperature controlled?

The warming drawer offers electronic temperature control with 6 temperature levels, operated via TouchControl.

What is the power connection and load requirement?

The connection is 220-240 V~ at 50-60 Hz, with connected loads of 0.81 kW and fuse protection of 10 A. The connection cable length is 1.7 m.

What warranty is provided?

The specified warranty is 2 + 8 years.

WDV414B

V-Zug WDV414B WarmingDrawer V4000 14
