The SMEG CPV115B3 is a 14 cm commercial-height sous-vide drawer designed for food preservation and cooking support. It features a vitality system, touch controls and a push–pull opening mechanism. With a stainless steel 304 base, tempered glass lid and Neptune Grey finishing on a black Linea aesthetic, it offers vacuum in bag and container functions, a preservation cycle and Chef function, plus double-phase welding and an automatic dehumidification pump cycle.

Key Features

Product family: Drawer with commercial height of 14 cm for integrated installation (exact installation details: Not stated in source).
Type: Sous-vide drawer with vitality system for vacuum-based food preservation and related functions.
Aesthetics Linea in black with Neptune Grey finishing, glass material and silk screen logo positioned inside.
Touch control interface for managing preservation cycle, vacuum in container cycle, Chef function and welding.
Chef function alternates compression and decompression cycles to speed up operations such as marinade or infusion.
Vacuum in bag function creates vacuum in bags with three selectable levels, plus a 0 level to seal without vacuum.
Vacuum in container function creates vacuum in suitable glass or plastic containers with three levels, reaching up to 99,9% vacuum.
Double-phase welding allows sealing of dirty and oily bags, with three selectable sealing levels.
Safety solenoid valve with anti oil reflux and automatic dehumidification pump cycle for safer operation.
Drawer stabilisation device maintains the drawer open during use, helping to avoid accidental closing.
High vacuum performance with reachable vacuum of 2–10 millibar (99,9%) and vacuum sensor accuracy of 10 mbar.
Removable enabling vacuum bar with 260 mm length, supporting flexible vacuum operations.
Capacity 6,5 l with maximum drawer loading weight of 48 kg and max weight allowance of 15 kg.
Stainless steel 304 base and tempered glass lid with frame, opening to 65° ± 3°.
Electrical performance of 240 W nominal power, 1 A current, 220–240 V and 50–60 Hz frequency.
Accessories included comprise bags for food conservation and bags for sous-vide cooking.
Compatible accessories include LIFEBOX containers and VBAG1/VBAG2 sous-vide and preservation bags (sizes and quantities as detailed below).

Technical Specifications

Model	CPV115B3
Product family	Drawer
Type	Sous-vide
Commercial height	14 cm
Vitality system	Yes
Aesthetics line	Linea
Colour	Black
Finishing	Neptune Grey
Material	Glass
Logo	Silk screen, inside position
Type of control setting	Touch control
Main functions	Preservation cycle, vacuum in container cycle, Chef function, welding
Opening mechanism	Push–pull
Base material	Stainless steel 304
Lid material	Tempered glass with frame
Lid opening	65° ± 3°
Safety solenoid valve anti oil reflux	Yes
Dehumidification pump cycle	Yes, automatic
Drawer stabilisation device	Yes
Drawer maximum protrusion	453 ± 2 mm
Max weight allowance	15 kg
Maximum drawer loading weight	48 kg
Capacity	6,5 l
Pump flow	4 m³/h
Enabling vacuum bar length	260 mm
Removable enabling vacuum bar	Yes
Welding type	Double-phase
Preservation cycle duration	1' – 1'20''
Reachable vacuum	2–10 millibar (99,9%)
Vacuum sensor	Yes, accuracy 10 mbar
Accessories included	Bags for food conservation; bags for sous-vide cooking
Plug type	(F;E) Schuko
Nominal power	240 W
Current	1 A
Voltage	220–240 V
Frequency	50–60 Hz
Width	597 mm
Depth	570 mm
Product height	135 mm
Alternative product	CPV115G – Colour: Neptune Grey

Programmes, Functions and Usage Details

Vacuum in Bag Function

The vacuum in bag function guarantees the creation of vacuum in bags with three selectable levels. It is also possible to set the 0 level to seal the bag without creating vacuum. Setting the highest vacuum level in bag or container reaches a 99,9% vacuum. The vacuum sensor guarantees achievement of the maximum vacuum connected to the level set; if this value is not reached, the bag is not sealed.

Vacuum in Container Function

The vacuum in container function guarantees the creation of vacuum in glass or plastic containers, with three selectable vacuum levels. Only certified containers suitable for vacuum and able to resist to a 99,9% vacuum should be used.

Chef Function

The Chef function alternates compression and decompression cycles and speeds up some operations, such as marinade or infusion, that otherwise would require a lot of time.

Sealing Levels and Welding

The machine can be set at three different sealing levels. Setting the maximum level makes it possible to seal more bags at the same time with a single cycle. The double-phase welding guarantees sealing even for dirty and oily bags.

Drawer Stabilisation Device

The stabilisation device maintains the drawer open when used, helping to avoid closing it accidentally.

Preservation Vacuum Bags

Preservation vacuum bags endure temperatures from −25°C to 70°C (for 2 hours) or 100°C (for 15 minutes). They are suitable for pantry, refrigerator and freezer storage, and cannot be used for vacuum cooking.

Sous-vide Cooking Bags

Sous-vide cooking bags endure a maximum temperature of 85°C (for 75 hours), 100°C (for 4 hours) or 121°C (for 30 minutes). They are suitable for pantry and refrigerator storage and cannot be stored in the freezer.

Compatible Accessories

LIFEBOX – Set of 3 containers for vacuum drawer.
VBAG1 – Bags for sous-vide cooking and preservation, 20x30, 50 pieces.
VBAG2 – Bags for sous-vide cooking and preservation, 25x35, 50 pieces.

Frequently Asked Questions

What is the main purpose of the SMEG CPV115B3 drawer?

It is a sous-vide vacuum drawer designed for food preservation and related functions, offering preservation cycles, vacuum in bag and container cycles, a Chef function and welding, within a 14 cm commercial-height drawer format.

How long does the preservation cycle last?

The preservation cycle duration is specified as 1' to 1'20''.

What vacuum level can the drawer achieve?

The drawer can reach a vacuum of 2–10 millibar, corresponding to 99,9% vacuum, depending on the selected level.

Can this drawer seal multiple bags at once?

Yes. When set to the maximum sealing level, it is possible to seal more bags at the same time with a single cycle.

Are the included preservation bags suitable for freezer storage?

Preservation vacuum bags are suitable for pantry, refrigerator and freezer storage and can withstand temperatures from −25°C to 70°C (for 2 hours) or 100°C (for 15 minutes).

Can sous-vide cooking bags be stored in the freezer?

No. Sous-vide cooking bags are suitable for pantry and refrigerator storage and cannot be stored in the freezer.

CPV115B3

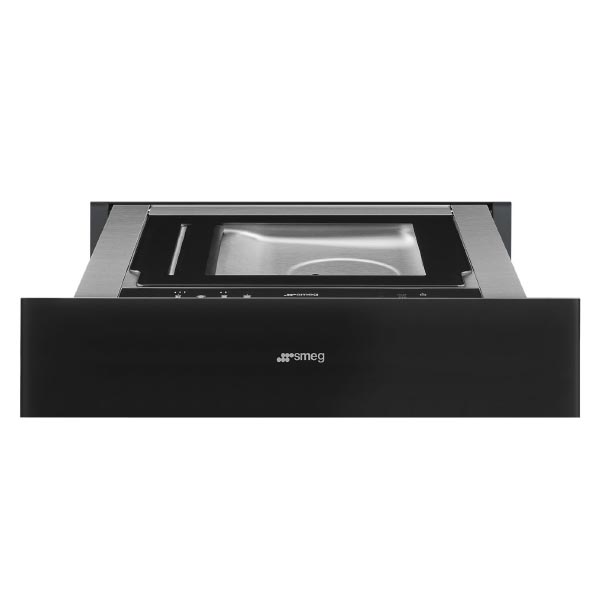

Smeg CPV115B3 Linea Vacuum Drawer
