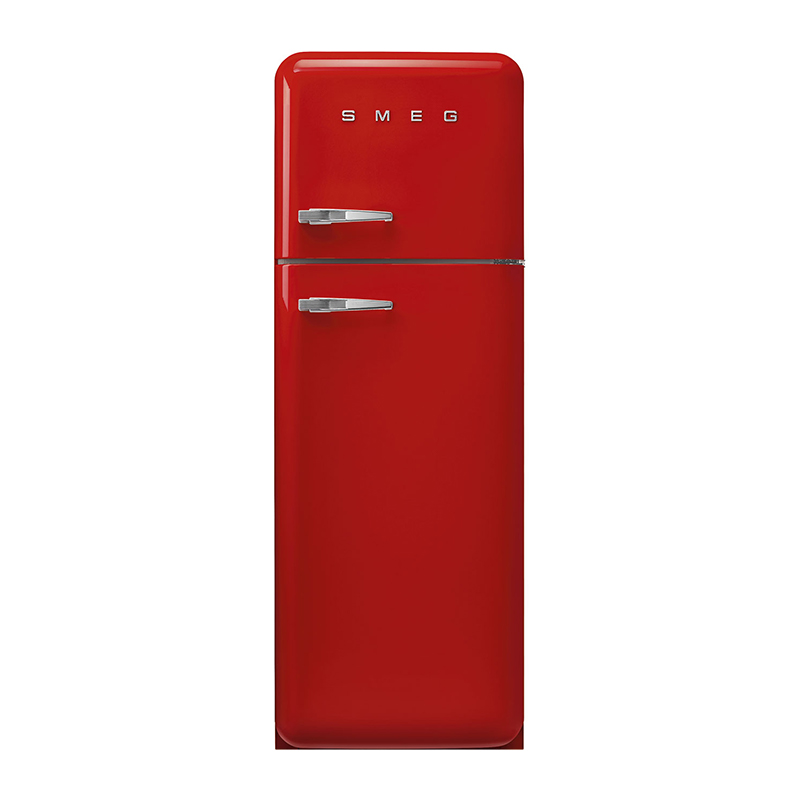

The SMEG FAB30RRD5UK is a freestanding top mount refrigerator with a fan assisted fridge and static freezer, designed in a rounded 50’s Style aesthetic. Finished in gloss red with chrome details, it offers 294 l total volume, including low temperature and fruit and vegetable compartments. Featuring LED interior lighting, electronic temperature control and an energy efficiency class D rating, it suits users seeking retro styling with modern refrigeration performance.

Key Features

Freestanding top mount design – Refrigerator with fan assisted fridge and static freezer.
50’s Style aesthetics – Rounded gloss red cabinet with chrome handle, logo and profiles.
Generous 294 l total volume – 222 l chill and unfrozen compartments plus 72 l frozen compartment.
Flexible storage – Two adjustable glass shelves, one fruit and vegetable drawer and a low temperature compartment.
Organised door storage – Two adjustable door shelves, one covered door shelf and one bottle shelf with wire support.
LED internal lighting – Energy efficient illumination inside the fridge.
MultiFlow with fan – Forced distribution of cold air for even temperature in the refrigerator compartment.
Electronic temperature control – Acoustic and visual door open alarm for added convenience.
Energy efficiency class D – Annual energy consumption of 168 kWh/year and EEI 80 %.
Quiet operation – Noise level of 37 dB(A) re 1 pW, airborne acoustical noise emission class C.
Four star freezer compartment – Freezing capacity of 4 kg/24 h with 30 h thaw time.
Wide climatic class range – Suitable for SN, N, ST and T climate classes.
Variable Speed Compressor – Uses R600a refrigerant and cyclopentane foam agent.
Right hand hinged door – Standard hinge type with external fixed handle.
Available colour variants – Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type / position	Standard, Right
Aesthetics	50’s Style
Colour / finishing	Red, gloss
Design	Rounded
Material	Heat-moulded
Handle	External, fixed, chrome colour
Logo colour	Chrome, applied logo
Side material / colour	Steel, Red
Door shelf profiles	Chrome
Drawer and glass shelf profiles	Chrome
Number of compartments	2 (Low temperature compartment, Fruit and vegetable compartment)
Adjustable fridge shelves	2, glass
Fruit and vegetable drawers	1, with glass crisper cover
Low temperature compartment	Yes
Fridge internal light	Yes, LED
Door shelves with transparent cover	1
Adjustable door shelves	2, with wire support
Bottle shelves	1, with wire support
Freezer shelves	1, wire
MultiFlow / fan	MultiFlow Yes, Fan Yes
Door open alarm	Acoustic and visual
Temperature control	Electronic
Number of compressors	1
Compressor type	Variable Speed Compressor
Refrigerant gas / quantity	R600a, 70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
EEI	80 %
Total volume	294 l
Volume – chilled and unfrozen	222 l (sum of chill and unfrozen compartments)
Volume – frozen compartment	72 l (sum of frozen compartments)
Noise level	37 dB(A) re 1 pW, noise emission class C
Thaw time	30 h
Freezing capacity	4 star, 4 kg/24 h
Climatic class	SN, N, ST, T
Nominal power	100 W
Current	0,8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with doors open	926 mm (maximum doors opening)
Product depth with handle	768 mm
Depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details and Functions

The refrigerator section includes a low temperature compartment and a dedicated fruit and vegetable compartment, supported by a glass crisper cover. Adjustable glass shelves and wire-supported door and bottle shelves help organise contents. LED interior lighting offers efficient visibility.

MultiFlow with fan provides forced distribution of cold air within the fridge, contributing to even temperature. An acoustic and visual door open alarm works with the electronic temperature control system to support correct use.

The freezer compartment features a wire shelf and a four star freezing performance rating, with a freezing capacity of 4 kg/24 h and a 30 h thaw time.

Frequently Asked Questions

What is the total capacity of the SMEG FAB30RRD5UK?

The appliance has a total volume of 294 l. This includes 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling and defrost system does it use?

The refrigerator uses fan assisted cooling with MultiFlow and a fan in the fridge compartment, while the freezer is static. Defrost is manual.

What is the energy rating and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the fridge freezer during operation?

The stated noise level is 37 dB(A) re 1 pW. The airborne acoustical noise emission class is C.

Does it include a door open alarm?

Yes, the appliance is equipped with an acoustic and visual door open alarm linked to the electronic temperature control.

What plug type and electrical connection does it require?

It uses a (G) UK e Singapore plug, with a voltage of 220–240 V, frequency of 50/60 Hz, nominal power of 100 W and current of 0,8 A.

Alternative Colour Variants

Alternative models in the same range include FAB30RCR5UK (Cream), FAB30RWH5UK (White), FAB30RPK5UK (Pink), FAB30RSV5UK (Silver), FAB30RPB5UK (Pastel Blue), FAB30RPG5UK (Pastel Green), FAB30RBL5UK (Black) and FAB30ROR5UK (Orange), all with right hand hinges.
