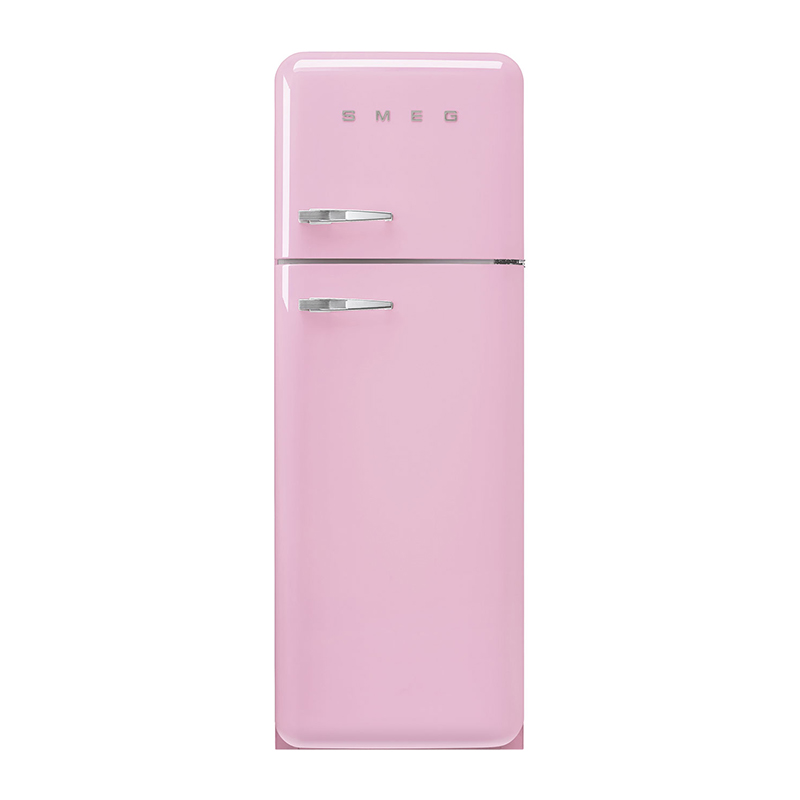

The SMEG FAB30RPK5UK is a free-standing, top mount refrigerator in a pink 50’s Style design with a gloss, rounded finish and chrome details. It offers a total volume of 294 l, combining a fan assisted refrigerator and static freezer. With LED internal lighting, electronic temperature control and a 4 kg/24 h freezing capacity, it is suited to users seeking a stylish fridge freezer with practical storage and D-rated energy performance.

Key Features

Free-standing top mount design – Refrigerator with static freezer, suitable for installation as a free-standing appliance.
50’s Style pink aesthetic – Rounded, gloss, heat-moulded design with pink doors and sides, chrome handle and logo.
Total volume 294 l – 222 l chill and unfrozen compartments plus 72 l frozen compartment.
Fan assisted refrigerator with MultiFlow – Ventilated cooling and fan for even temperature distribution in the fridge compartment.
Efficient LED internal lighting – Two LED lights provide energy efficient illumination inside the fridge.
Flexible glass and wire shelving – Two adjustable glass shelves in the fridge and one wire shelf in the freezer.
Fruit and vegetable storage – One fruit and vegetable drawer with glass crisper cover.
Low temperature compartment – Dedicated low temperature compartment included in the refrigerator section.
Door storage with chrome profiles – Adjustable door shelves, bottle shelf with wire support and one covered door shelf.
Electronic temperature control – Precise control of internal temperatures.
Door open alarm – Acoustic and visual alarm when the door is left open.
4 star freezer performance – 4 kg/24 h freezing capacity and 30 h thaw time.
Quiet operation – Airborne acoustical noise emission of 37 dB(A) re 1 pW, noise class C.
Energy efficiency class D – Annual energy consumption of 168 kWh/year, EEI 80 %.
Variable Speed Compressor – Single compressor using R600a refrigerant and Cyclopentane foam agent.
Right-hand hinge – Standard hinge type with hinge position on the right.
Wide climatic class range – Suitable for climatic classes SN, N, ST, T.
Available colour variants – Alternative models in cream, white, silver, pastel blue, pastel green, red, black and orange.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Reference height	160 – 200 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type / position	Standard, Right
EAN code	8017709341459
Aesthetic style	50’s Style
Colour	Pink
Finishing	Gloss
Design	Rounded
Material	Heat-moulded
Handle type / colour	External, fixed – Chrome
Side material / colour	Steel, Pink
Logo	Applied, Chrome colour
Door shelves profile colour	Chrome
Drawer profile colour	Chrome
Glass shelf profile colour	Chrome
Available colours	Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green
Refrigerator compartments	2 compartments: Low temperature compartment, Fruit and vegetable compartment
Adjustable shelves (fridge)	2, Glass
Fruit and vegetable drawers	1
Crisper cover	Yes, Glass, Standard type
Internal fridge lights	2, LED
Refrigerator inner door	1 door shelf with transparent cover, 2 adjustable door shelves with wire support, 1 bottle shelf with wire support
Freezer shelves	1, Wire
MultiFlow / Fan	MultiFlow Yes, Fan Yes
Door open alarm	Acoustic and visual
Temperature control	Electronic
Number of compressors	1
Compressor type	Variable Speed Compressor
Refrigerant gas / quantity	R600a, 70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
EEI	80 %
Total volume	294 l
Chill & unfrozen compartment volume	222 l
Frozen compartment volume	72 l
Freezing capacity	4 kg/24h (4 star)
Thaw time	30 h
Noise level	37 dB(A) re 1 pW, noise emission class C
Climatic class	SN, N, ST, T
Nominal power	100 W
Current	0,8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug	(F;E) Schuko
Width	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details and Functions

The refrigerator section includes a low temperature compartment and a dedicated fruit and vegetable compartment with a glass crisper cover. Door storage is flexible, with two adjustable door shelves, a bottle shelf with wire support and a covered door shelf for items requiring additional protection.

Fan assisted cooling with MultiFlow provides ventilated air distribution within the refrigerator compartment. Manual defrost is required for the appliance. An acoustic and visual door open alarm helps indicate when the door has been left open. Electronic temperature control allows adjustment of internal temperatures.

The appliance operates with a single Variable Speed Compressor using R600a refrigerant and Cyclopentane foam agent. It is designed to function within climatic classes SN, N, ST and T, with an energy efficiency class of D and annual energy consumption of 168 kWh/year.

Frequently Asked Questions

What is the total capacity of the FAB30RPK5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling does this fridge freezer use?

The refrigerator is fan assisted with MultiFlow, providing ventilated cold air distribution, while the freezer section is static.

Does it have a door open alarm?

Yes, it has an acoustic and visual door open alarm to signal when the door is left open.

What is the energy efficiency class and annual consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

What are the key dimensions for installation?

The width is 600 mm, depth without handle is 728 mm and product height with feet is 1720 mm. With doors open at 90° the depth is 1197 mm, and the product width with maximum doors opening is 926 mm.

Is the hinge position fixed?

The hinge type is standard with the hinge position on the right. Any information on reversibility is Not stated in source.
