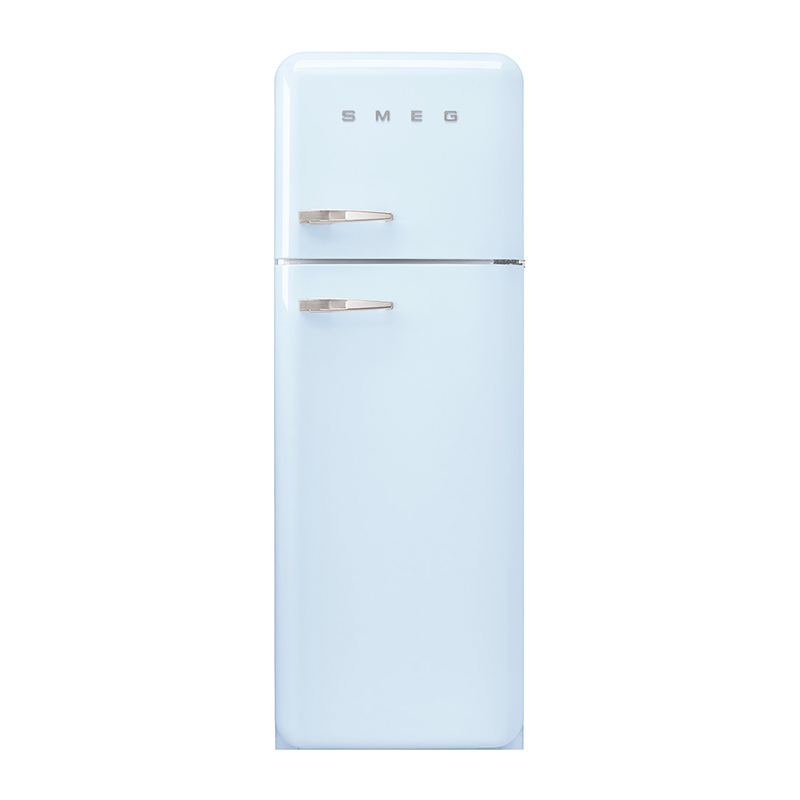

The SMEG FAB30RPB5UK is a free standing top mount refrigerator in a 50’s Style design with a pastel blue gloss finish and rounded lines. It offers a fan assisted refrigerator with a static freezer, glass shelves and a dedicated fruit and vegetable compartment. With LED internal lighting, electronic temperature control and a total volume of 294 l, it suits users seeking stylish aesthetics combined with practical storage and an energy efficiency class D rating.

Key Features

Product family & category: Refrigerator, free standing, top mount design.
50’s Style aesthetics: Pastel blue colour, rounded design, gloss heat-moulded material.
Chrome details: External fixed handle, logo, door shelf profiles, drawer profiles and glass shelf profiles in chrome.
Cooling system: Fan assisted refrigerator with static freezer and MultiFlow air distribution.
Refrigerator layout: 2 adjustable glass shelves, 1 fruit and vegetable drawer with glass crisper cover, low temperature compartment.
Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support, 1 bottle shelf with wire support.
Freezer features: 1 wire shelf and ice tray shelf.
Internal lighting: LED internal light in the fridge for energy efficient illumination.
Controls & alarms: Electronic temperature control with acoustic and visual door open alarm.
Compressor: Variable Speed Compressor with R600a refrigerant gas.
Energy performance: Annual energy consumption 168 kWh/year, energy efficiency class D, EEI 80 %.
Capacity: Total volume 294 l (222 l chill/unfrozen, 72 l frozen compartments).
Freezer rating: 4 star – freezing capacity 4 kg/24h, thaw time 30 h.
Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.
Climatic class: SN, N, ST, T.
Dimensions: Width 600 mm, depth without handle 728 mm, product height with feet 1720 mm.
Door hinge: Standard right-hand hinge position.
Side finish: Steel sides in pastel blue colour.
Power connection: Voltage 220–240 V, frequency 50/60 Hz, current 0.8 A, UK & Singapore (G) plug, 180 cm cable.
Insulation: Foam agent Cyclopentane, refrigerant quantity 70 g.
Available colours in family: Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green, lime green.
EAN code: 8017709298401 for this model.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type / position	Standard hinge, right position
Model code	FAB30RPB5UK
Aesthetics	50’s Style
Colour & finish	Pastel blue, gloss
Design	Rounded
Material	Heat-moulded; side material steel
Handle	External, fixed, chrome colour
Logo	Applied logo, chrome colour
Number of compartments (fridge)	2
Compartment types	Low temperature compartment; fruit and vegetable compartment
Adjustable shelves (fridge)	2 adjustable glass shelves
Fruit & vegetable drawers	1 drawer, glass crisper/vegetable drawers cover
Crisper cover	Yes, glass, standard type
Low temperature compartment	Yes
Internal fridge light	Yes, LED type
Door shelves with transparent cover	1
Adjustable door shelves	2, with wire support
Bottle shelves	1, with wire support
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Glass shelf profile colour	Chrome
Freezer shelves	1 wire shelf; ice tray shelf yes
MultiFlow / Fan	MultiFlow Yes; Fan Yes
Door open alarm	Acoustic and visual
Temperature control	Electronic
Number of compressors	1, variable speed compressor
Refrigerant gas	R600a, 70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
EEI	80 %
Total volume	294 l
Volume – frozen compartments	72 l (sum of the volumes of the frozen compartment(s))
Volume – chill & unfrozen	222 l (sum of the volumes of the chill and unfrozen compartment(s))
Noise level	37 dB(A) re 1 pW, noise emission class C
Thaw time	30 h
Freezing capacity	4 star – 4 kg/24h
Climatic class	SN, N, ST, T
Current	0,8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Spacer depth	20 mm
EAN code	8017709298401

Additional Details and Usage

The refrigerator compartment includes a low temperature compartment and a dedicated fruit and vegetable compartment with a glass crisper cover, helping to organise different food types. Two adjustable glass shelves allow you to change the internal layout, while the door offers a covered shelf, two adjustable shelves with wire support and a bottle shelf with wire support.

MultiFlow and an internal fan provide ventilated cooling in the refrigerator compartment for even temperature distribution. The LED interior lighting offers an energy efficient and long lasting way of illuminating the appliance interior.

An acoustic and visual door open alarm notifies you if the door is left open, and electronic temperature control allows precise adjustment. The freezer section includes a wire shelf and an ice tray shelf and is rated 4 star, suitable for better food preservation according to the symbol glossary.

The symbols glossary notes that ventilated cooling ensures forced distribution of cold air in the refrigerator compartment for even temperature, and that LED interior lighting is more energy efficient and long lasting for appliance illumination. Energy efficiency class D is also identified in the glossary.

Frequently Asked Questions

What is the total capacity of the SMEG FAB30RPB5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment(s).

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow ventilated cooling and a static freezer. Ventilated cooling provides forced distribution of cold air in the refrigerator compartment for even temperature distribution.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RPB5UK in operation?

The declared noise level is 37 dB(A) re 1 pW, and it has an airborne acoustical noise emission class C.

What are the main dimensions for installation space?

The appliance is 600 mm wide and 1720 mm high with feet. Depth is 728 mm without the handle and 768 mm with the handle. With doors open at 90°, depth is 1197 mm and width with maximum doors opening is 926 mm.

What is the freezing capacity and thaw time of the freezer?

The freezer has a 4 star rating with a freezing capacity of 4 kg/24h and a thaw time of 30 h.
