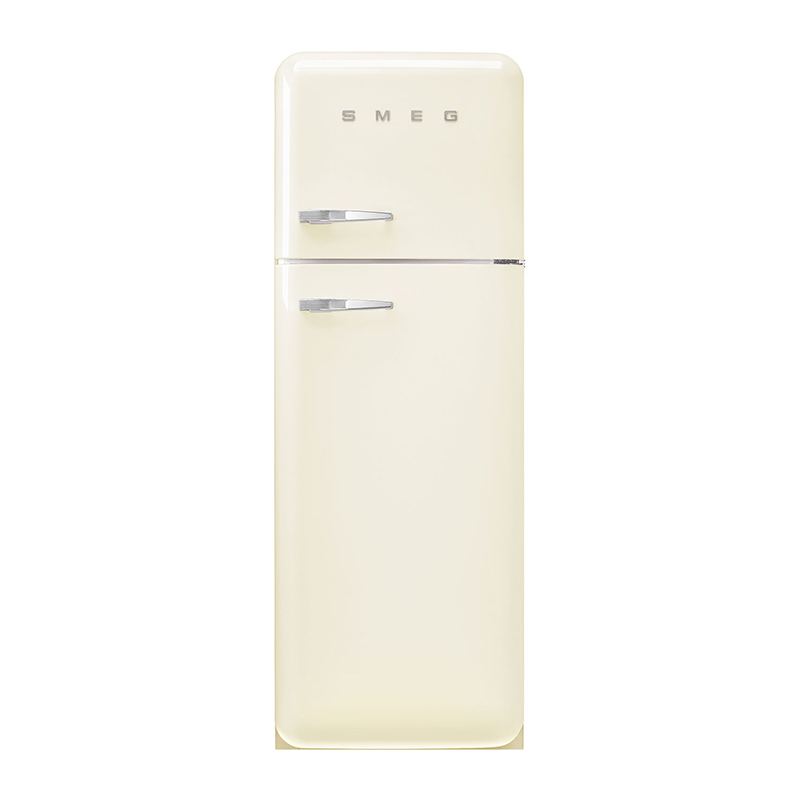

The FAB30RCR5UK is a free standing, top mount refrigerator freezer in a cream 50’s Style design with a glossy, rounded finish. It offers a fan assisted refrigerator with a static freezer, manual defrost and electronic temperature control. With a total volume of 294 l, LED internal lighting and dedicated low temperature and fruit and vegetable compartments, it is suited to users seeking a stylish, practical fridge freezer with modern cooling features.

Key Features

Product family: Refrigerator with top mount freezer configuration.
Installation: Free standing for flexible placement.
Cooling type: Fan assisted refrigerator with static freezer.
Defrost: Manual defrost system.
Aesthetics: 50’s Style, cream colour, rounded, glossy design.
Materials and finish: Heat-moulded cabinet with steel sides in cream.
Handles and logo: External fixed handle and logo in chrome.
Door and shelf details: Chrome profiles on door shelves, drawers and glass shelf edges.
Compartments: 2 main compartments including low temperature and fruit and vegetable sections.
Adjustable shelves: 2 adjustable glass shelves with glass crisper cover.
Fruit and vegetable storage: 1 drawer with glass cover.
Low temperature compartment: Dedicated low temperature compartment in the fridge.
Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support.
Bottle storage: 1 bottle shelf with wire support.
Internal lighting: LED internal light in the refrigerator compartment.
Air circulation: MultiFlow and fan in the refrigerator.
Door open alarm: Acoustic and visual alarm.
Temperature control: Electronic temperature control.
Compressor: 1 variable speed compressor.
Refrigerant: R600a, 70 g, with cyclopentane foam agent.
Energy efficiency class: D with annual energy consumption of 168 kWh/year.
Noise performance: Noise level 37 dB(A) re 1 pW, airborne acoustical noise emission class C.
Total volume: 294 l, with 222 l chill and unfrozen compartments and 72 l frozen compartment volume.
Freezer performance: 4 star freezing capacity of 4 kg/24 h and 30 h thaw time.
Climatic class: SN, N, ST, T.
Electrical connection: 220–240 V, 50/60 Hz, nominal power 100 W, current 0.8 A.
Power cable: 180 cm length with plug type (G) UK e Singapore.
Dimensions: Width 600 mm, depth without handle 728 mm, depth with handle 768 mm, height with feet 1720 mm.
Door clearance: Product width with maximum doors opening 926 mm; depth with doors open at 90° is 1197 mm.
Spacer depth: 20 mm.
Available colours in this family: Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.
Alternative right-hinge variants: FAB30RWH5UK (White), FAB30RPK5UK (Pink), FAB30RSV5UK (Silver), FAB30RPB5UK (Pastel Blue), FAB30RPG5UK (Pastel Green), FAB30RRD5UK (Red), FAB30RBL5UK (Black), FAB30ROR5UK (Orange).

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type	Standard
Hinge position	Right
EAN code	8017709298340
Aesthetic style	50’s Style
Colour	Cream
Design	Rounded
Finishing	Gloss
Material	Heat-moulded
Handle	External, fixed, chrome colour
Logo colour	Chrome, applied logo
Side material	Steel
Side colour	Cream
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Colour of glass shelf profile	Chrome
Number of compartments	2
Compartment types	Low temperature compartment, Fruit and vegetable compartment
Number of adjustable shelves	2
Type of adjustable shelves	Glass
Number of fruit and vegetable drawers	1
Crisper cover	Yes
Type of crisper/vegetable drawers cover	Glass / Standard
Low temperature compartment	Yes
Internal light (fridge)	Yes, LED
Refrigerator inner door – door shelves with transparent cover	1
Number of adjustable door shelves	2
Adjustable door shelves with wire support	Yes
Number of bottle shelves	1
Bottle shelves with wire support	Yes
Freezer shelves – number	1
Freezer shelves – type	Wire
MultiFlow	Yes
Fan	Yes
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
Number of compressors	1
Refrigerant gas type	R600a
Refrigerant quantity	70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
Airborne acoustical noise emission class	C
Noise level	37 dB(A) re 1 pW
Total volume	294 l
Sum of volumes of chill and unfrozen compartments	222 l
Sum of volumes of frozen compartment(s)	72 l
Thaw time	30 h
4 star – Freezing capacity	4 kg/24 h
Climatic class	SN, N, ST, T
EEI	80 %
Nominal power	100 W
Current	0,8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product depth with handle	768 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details and Functions

The refrigerator section includes MultiFlow and a fan for forced distribution of cold air, supporting even temperature distribution within the compartment.

LED interior lighting provides an energy efficient and long lasting way of illuminating the interior of the appliance.

The 4 stars freezing compartment is designed for better food preservation.

Frequently Asked Questions

What is the total capacity of the FAB30RCR5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow and a fan, combined with a static freezer.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RCR5UK in operation?

The noise level is 37 dB(A) re 1 pW, and it is rated airborne acoustical noise emission class C.

What are the main dimensions I should allow for installation?

The appliance is 600 mm wide, 728 mm deep without the handle (768 mm with handle) and 1720 mm high. With the doors open at 90°, the depth is 1197 mm and the width with maximum doors opening is 926 mm.

Does the freezer have a specific star rating and freezing capacity?

Yes, the freezer compartment is 4 stars and has a freezing capacity of 4 kg/24 h with a thaw time of 30 h.
