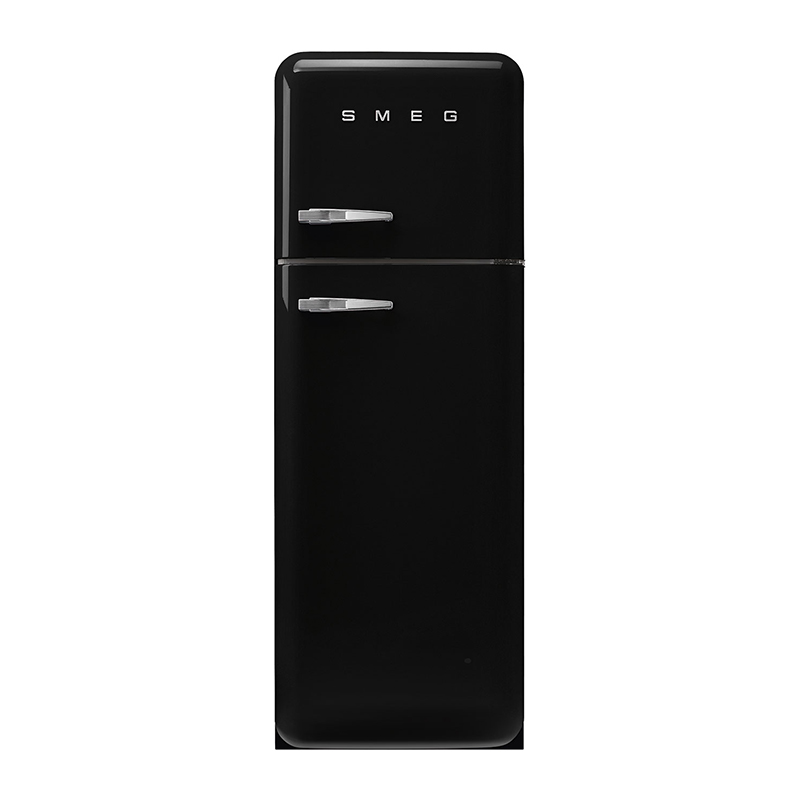

The SMEG FAB30RBL5UK is a 50’s Style black freestanding top mount refrigerator with a fan assisted refrigerator and static freezer. It provides a total volume of 294 l, with low temperature and fruit and vegetable compartments, glass adjustable shelves and LED internal lighting. Designed with a gloss heat-moulded rounded aesthetic, chrome details and right-hand standard hinge, it suits users seeking distinctive style, efficient storage and electronic temperature control.

Key Features

Product family: Refrigerator, top mount, freestanding design.
Cooling type: Fan assisted refrigerator with static freezer.
50’s Style aesthetics: Black gloss finish, rounded design, heat-moulded material.
Chrome details: External fixed handle, logo, door shelf profiles, drawer profiles and glass shelf profiles in chrome.
Refrigerator storage: 2 adjustable glass shelves, 1 fruit and vegetable drawer with glass cover and crisper cover.
Compartments: Low temperature compartment plus dedicated fruit and vegetable compartment.
Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.
Lighting: LED internal light in fridge.
MultiFlow and fan: MultiFlow and fan functions in the refrigerator compartment.
Door open alarm: Acoustic and visual alert.
Temperature control: Electronic temperature control.
Compressor: Variable Speed Compressor with R600a refrigerant gas.
Energy efficiency class: D, with annual energy consumption of 168 kWh/year.
Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.
Total volume: 294 l (222 l chill and unfrozen compartments, 72 l frozen compartments).
Freezer performance: 4 star freezing capacity of 4 kg/24h and thaw time of 30 h.
Climatic class: SN, N, ST, T.
Electrical connection: 220–240 V, 50/60 Hz, nominal power 100 W, current 0.8 A.
Plug: (G) UK e Singapore, power supply cable length 180 cm.
Dimensions: Width 600 mm, depth without handle 728 mm, product height with feet 1720 mm.
Depth with doors open: Product depth with handle 768 mm, with doors open at 90° 1197 mm.
Maximum width: Product width with maximum doors opening 926 mm; spacer depth 20 mm.
Hinge: Standard right-hand hinge position.
Side design: Steel sides in black colour.
Logo: Applied logo in chrome colour.
Available colours in range: Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type	Standard
Hinge position	Right
EAN code	8017709298364
Aesthetics	50’s Style
Colour	Black
Design	Rounded
Finishing	Gloss
Material	Heat-moulded
Handle	External, fixed, chrome colour
Logo colour	Chrome
Side material	Steel
Side colour	Black
Logo	Applied
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Colour of glass shelf profile	Chrome
Number of compartments	2
Compartment types	Low temperature compartment, Fruit and vegetable compartment
No. of adjustable shelves (fridge)	2
Type of adjustable shelves	Glass
Number of fruit and vegetables drawers	1
Crisper Cover	Yes
Type of crisper/vegetable drawers cover	Glass / Standard
Low temperature compartment	Yes
Internal light in fridge	Yes, LED
No. of door shelves with transparent cover	1
Number of adjustable door shelves	2
Adjustable door shelves with wire support	Yes
No. of bottle shelves	1
Bottle shelves with wire support	Yes
MultiFlow	Yes
Fan	Yes
Freezer shelves – number	No. of shelves 1
Freezer shelves – type	Wire
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
No. of compressors	1
Refrigerant gas type	R600a
Type of compressor	Variable Speed Compressor
Refrigerant Quantity	70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
Airborne acoustical noise emission class	C
Total volume	294 l
Sum of the volumes of the frozen compartment(s)	72 l
Sum of the volumes of the chill and unfrozen compartments	222 l
Noise level	37 dB(A) re 1 pW
Thaw time	30 h
4 star – Freezing capacity	4 kg/24h
Climatic class	SN, N, ST, T
EEI	80 %
Nominal power	100 W
Current	0.8 A
Voltage (V)	220-240 V
Frequency (Hz)	50/60 Hz
Power supply cable length	180 cm
Plug	(G) UK e Singapore
Width (mm)	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details

The refrigerator compartment includes a low temperature compartment and a dedicated fruit and vegetable compartment, supported by MultiFlow and fan functions. Glass adjustable shelves and a glass crisper cover help organise storage.

The freezer compartment features 1 wire shelf. A 4 star freezing compartment supports a freezing capacity of 4 kg/24h and offers a thaw time of 30 h.

An acoustic and visual door open alarm, electronic temperature control and LED interior lighting are included to support everyday use. Installation is freestanding with a standard right-hand hinge and (G) UK e Singapore plug.

Frequently Asked Questions

What is the total storage volume of the FAB30RBL5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartments.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator and a static freezer. The refrigerator compartment also features MultiFlow and a fan.

What is the energy efficiency class and annual consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30RBL5UK during operation?

The noise level is 37 dB(A) re 1 pW, and the airborne acoustical noise emission class is C.

What are the main dimensions I need to allow for?

The width is 600 mm and the depth without handle is 728 mm. The product height with feet is 1720 mm. With maximum doors opening, width is 926 mm; depth with handle is 768 mm and depth with doors open at 90° is 1197 mm.

Is this model suitable for UK electrical supplies?

Yes. It operates at 220–240 V, 50/60 Hz with a nominal power of 100 W and current of 0.8 A. It is supplied with a (G) UK e Singapore plug and a 180 cm power supply cable.
