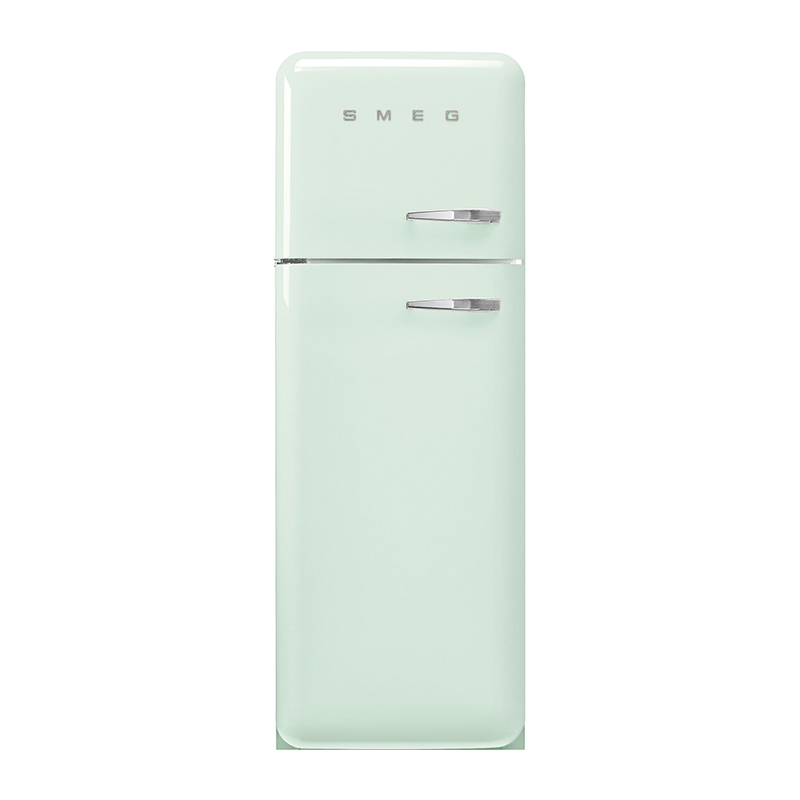

The SMEG FAB30LPG5UK is a free standing, top mount refrigerator in a 50’s Style pastel green design with a gloss heat-moulded finish and chrome details. It offers a total volume of 294 l, combining a fan assisted refrigerator with a static freezer and manual defrost. With LED internal lighting, electronic temperature control and a left-hand hinge, it is designed for everyday food storage in a stylish, rounded aesthetic.

Key Features

Product family: Refrigerator, free standing, top mount category.
Design & colour: 50’s Style aesthetics in pastel green with rounded design and gloss heat-moulded finish.
Total volume: 294 l combined capacity for chilled and frozen storage.
Refrigerator cooling: Fan assisted refrigerator with MultiFlow and fan.
Freezer type: Static freezer with 4 star – freezing capacity of 4 kg/24h.
Energy performance: Annual energy consumption 168 kWh/year, energy efficiency class D, EEI 80 %.
Noise level: 37 dB(A) re 1 pW, airborne acoustical noise emission class C.
Lighting: LED internal light in the fridge compartment.
Controls: Electronic type temperature control.
Compressor: Variable Speed Compressor with refrigerant gas R600a, quantity 70 g.
Storage layout: 2 compartments including a low temperature compartment and fruit and vegetable compartment.
Shelving: 2 adjustable glass shelves plus glass crisper cover and wire shelves in freezer.
Door storage: 1 door shelf with transparent cover, 2 adjustable door shelves with wire support, and 1 bottle shelf with wire support.
Drawers: 1 fruit and vegetables drawer with glass cover.
Convenience: Ice tray shelf in the freezer compartment.
Door configuration: Left hinge position with external fixed handle in chrome.
Alarm: Acoustic and visual door open alarm.
Dimensions: Width 600 mm, depth without handle 728 mm, height with feet 1720 mm.
Climate class: SN, N, ST, T for operating conditions.
Electrical connection: Nominal power 100 W, 220–240 V, 50/60 Hz, UK e Singapore plug (G).
Side finish: Steel sides in pastel green with chrome logo.
Available colours: Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green, lime green.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type / position	Standard hinge, left hinge position
Model code	FAB30LPG5UK
EAN code	8017709298432
Aesthetics	50’s Style, rounded design, gloss finishing
Colour	Pastel Green
Material	Heat-moulded, sides in steel
Handle	External, fixed, chrome colour
Logo	Applied logo, chrome colour
Number of compartments	2 (low temperature compartment, fruit and vegetable compartment)
No. of adjustable shelves (fridge)	2, glass type
Number of fruit and vegetables drawers	1
Crisper cover	Yes, glass
Low temperature compartment	Yes
Internal light (fridge)	Yes, LED type
Refrigerator inner door	1 door shelf with transparent cover, 2 adjustable door shelves with wire support, 1 bottle shelf with wire support
Other refrigerator features	MultiFlow, fan
Freezer – no. of shelves	1, wire type
Freezer – other features	Ice tray shelf
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
No. of compressors	1, variable speed compressor
Refrigerant gas type / quantity	R600a, 70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
EEI	80 %
Airborne acoustical noise emission class	C
Noise level	37 dB(A) re 1 pW
Total volume	294 l
Sum of frozen compartment volumes	72 l
Sum of chill and unfrozen compartment volumes	222 l
Thaw time	30 h
4 star – freezing capacity	4 kg/24h
Climatic class	SN, N, ST, T
Nominal power	100 W
Current	0,8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details

The fridge compartment uses a fan assisted system with MultiFlow to distribute cold air, contributing to even temperature distribution within the refrigerator compartment. LED interior lighting provides illumination inside the fridge in an energy efficient and long lasting way.

The freezer includes a 4 star freezing compartment, designed for better food preservation, with an ice tray shelf for organising frozen items. Manual defrost is required for maintenance. An acoustic and visual door open alarm alerts when the door is left open.

The climatic class SN, N, ST, T indicates suitability for a range of ambient conditions. The unit uses cyclopentane as a foam agent and R600a as the refrigerant gas.

Frequently Asked Questions

What is the total capacity of the SMEG FAB30LPG5UK?

The total volume is 294 l, with 72 l in the frozen compartment(s) and 222 l in the chill and unfrozen compartment(s).

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator with MultiFlow and a static freezer. The cooling type is listed as fan assisted refrigerator, static freezer.

What is the energy efficiency rating and annual energy consumption?

The energy efficiency class is D with an Energy Efficiency Index (EEI) of 80 %. Annual energy consumption is 168 kWh/year.

How noisy is the FAB30LPG5UK during operation?

The noise level is 37 dB(A) re 1 pW, and the airborne acoustical noise emission class is C.

What are the main dimensions I need to consider for installation?

The width is 600 mm and depth without handle is 728 mm. Product height with feet is 1720 mm, depth with handle is 768 mm, and depth with doors open at 90° is 1197 mm.

Which plug type and electrical requirements does it have?

It uses plug type (G) UK e Singapore, with nominal power 100 W, current 0,8 A, voltage 220–240 V and frequency 50/60 Hz.
