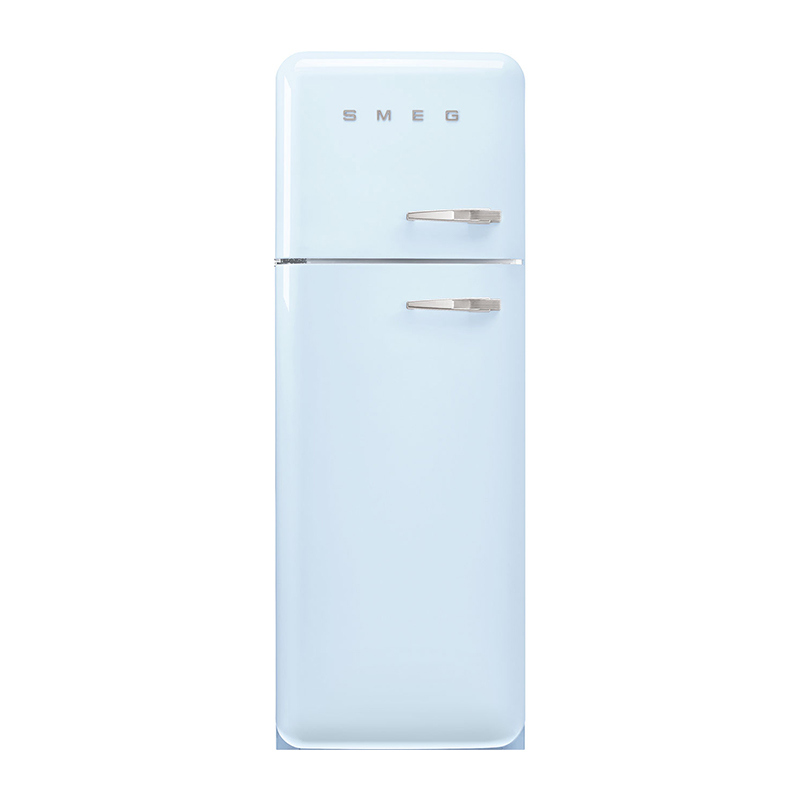

The SMEG FAB30LPB5UK is a free standing, top mount refrigerator freezer from the 50’s Style family, finished in gloss pastel blue with rounded design and chrome details. It offers a total volume of 294 l, combining a fan assisted refrigerator and static freezer. With glass adjustable shelves, a low temperature compartment, fruit and vegetable compartment, LED internal light and electronic temperature control, it is designed for practical food storage in a distinctive aesthetic.

Key Features

50’s Style aesthetics – gloss pastel blue finish with rounded design, external fixed handle and chrome details.
Free standing top mount design – refrigerator and freezer with the freezer compartment positioned at the top.
Fan assisted refrigerator – MultiFlow and fan system for the refrigerator compartment.
Static freezer – manual defrost freezer compartment with 4 star – freezing capacity.
Total volume 294 l – 222 l chill and unfrozen compartments and 72 l frozen compartment.
LED internal light – LED type internal light in the fridge compartment.
Flexible storage – 2 adjustable glass shelves, low temperature compartment and fruit and vegetable compartment with glass cover.
Organised door storage – 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.
Acoustic and visual door open alarm – alerts when the door is left open.
Electronic temperature control – for precise regulation of internal temperature.
Variable Speed Compressor – with R600a refrigerant gas and 70 g refrigerant quantity.
Energy efficiency class D – annual energy consumption 168 kWh/year, EEI 80 %.
Low noise level – airborne acoustical noise emission class C and noise level 37 dB(A) re 1 pW.
Wide climatic class range – SN, N, ST, T climatic class.
UK compatible plug – plug type (G) UK e Singapore with 180 cm power supply cable.
Alternative colour options – Orange, pastel blue, white, blue, black, cream, pink, red, silver, pastel green and lime green (model dependent).

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type	Standard
Hinge position	Left
Model	FAB30LPB5UK
EAN code	8017709298418
Aesthetics line	50’s Style
Colour	Pastel Blue
Design	Rounded
Finishing	Gloss
Material	Heat-moulded
Handle	External, fixed, handle colour Chrome
Logo colour	Chrome, logo applied
Side material	Steel
Side colour	Pastel blue
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Colour of glass shelf profile	Chrome
Available colours	Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green
Number of compartments	2
Compartment types	Low temperature compartment, Fruit and vegetable compartment
No. of adjustable shelves	2
Type of adjustable shelves	Glass
Number of fruit and vegetables drawers	1
Crisper cover	Yes
Type of crisper/vegetable drawers cover	Glass, Standard
Low temperature compartment	Yes
Internal light in fridge	Yes, type of internal light (fridge) LED
No. of door shelves with transparent cover	1
Number of adjustable door shelves	2
Adjustable door shelves with wire support	Yes
No. of bottle shelves	1
Bottle shelves with wire support	Yes
MultiFlow	Yes
Fan	Yes
No. of shelves (freezer)	1
Type of shelves (freezer)	Wire
Ice tray shelf	Yes
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
No. of compressors	1
Refrigerant gas type	R600a
Type of compressor	Variable Speed Compressor
Refrigerant quantity	70 g
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
EEI	80 %
Total volume	294 l
Sum of volumes of frozen compartments	72 l
Sum of volumes of chill and unfrozen compartments	222 l
Airborne acoustical noise emission class	C
Noise level	37 dB(A) re 1 pW
Thaw time	30 h
4 star – Freezing capacity	4 kg/24h
Climatic class	SN, N, ST, T
Nominal power	100 W
Current	0.8 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm
Alternative product – FAB30LCR5UK	Hinge position: Left, Cream
Alternative product – FAB30LBL5UK	Hinge position: Left, Black
Alternative product – FAB30LWH5UK	Hinge position: Left, White
Alternative product – FAB30LPG5UK	Hinge position: Left, Pastel Green
Alternative product – FAB30LRD5UK	Hinge position: Left, Red

Additional Details

The refrigerator compartment uses a fan assisted MultiFlow system to distribute cold air. The freezer is static and requires manual defrosting. The appliance includes an acoustic and visual door open alarm and electronic temperature control, with a 4 star freezing compartment for better food preservation as indicated by the symbol description.

LED interior lighting is used to illuminate the refrigerator compartment and is described as a more energy efficient and long lasting way of illuminating the interior of the appliance. The plug type (G) is suitable for UK and Singapore connections, and the power supply cable length is 180 cm.

Frequently Asked Questions

What is the total storage volume of the SMEG FAB30LPB5UK?

The total volume is 294 l, with 72 l for the frozen compartment(s) and 222 l for the chill and unfrozen compartment(s).

What type of cooling and defrost system does this fridge freezer use?

The appliance has a fan assisted refrigerator and a static freezer. Defrosting is manual. The refrigerator compartment also features MultiFlow and a fan.

What is the energy efficiency class and annual energy consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the FAB30LPB5UK during operation?

The airborne acoustical noise emission class is C, and the noise level is 37 dB(A) re 1 pW.

What are the key internal storage features of the refrigerator compartment?

The refrigerator compartment includes 2 adjustable glass shelves, a low temperature compartment, 1 fruit and vegetable drawer with glass crisper cover, LED internal light, 1 door shelf with transparent cover, 2 adjustable door shelves with wire support and 1 bottle shelf with wire support.

What plug type and electrical requirements does it have?

It uses plug type (G) for UK and Singapore, with a nominal power of 100 W, current of 0.8 A, voltage 220–240 V, frequency 50/60 Hz and a 180 cm power supply cable.
