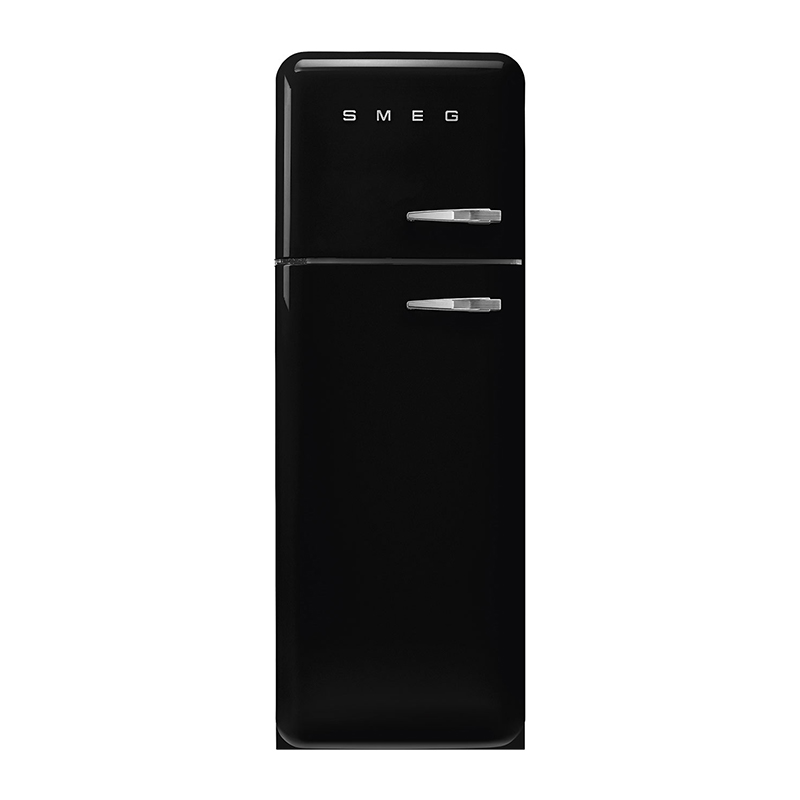

The SMEG FAB30LBL5UK is a black, gloss-finished, 50’s Style freestanding top mount refrigerator with a fan assisted fridge and static freezer. Designed with a rounded, heat-moulded aesthetic, it offers 294 l total volume with separate low temperature and fruit and vegetable compartments. Featuring LED internal lighting, electronic temperature control and a variable speed compressor, it is suitable for UK and Singapore plug types and provides energy efficiency class D performance.

Key Features

50’s Style aesthetics with rounded design, gloss black heat-moulded doors and chrome handle, logo and shelf profiles.
Freestanding top mount layout with fan assisted refrigerator and static freezer for combined fresh and frozen storage.
Total volume 294 l with 222 l chill and unfrozen compartments and 72 l frozen compartment capacity.
Flexible fridge storage with 2 adjustable glass shelves, 1 fruit and vegetable drawer and a glass crisper cover.
Practical door storage including 1 door shelf with transparent cover, 2 adjustable door shelves and 1 bottle shelf, all with wire support where stated.
Low temperature compartment plus dedicated fruit and vegetable compartment for organised refrigeration.
LED internal fridge lighting for long lasting, energy efficient illumination of the refrigerator compartment.
Electronic temperature control with a variable speed compressor and R600a refrigerant for controlled performance.
Door open alarm providing acoustic and visual alerts when the door is left open.
Energy efficiency class D with annual energy consumption of 168 kWh/year and EEI of 80 %.
Quiet operation with a noise level of 37 dB(A) re 1 pW and airborne acoustical noise emission class C.
Four star freezer with 4 kg/24 h freezing capacity and 30 h thaw time for better food preservation.
MultiFlow and fan in refrigerator for ventilated distribution of cold air and even temperature.
Wide climatic class range SN, N, ST, T for operation in varied ambient conditions.
UK and Singapore compatibility with (G) plug and 220–240 V, 50/60 Hz electrical connection.
Multiple colour options available including Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green and Lime green (model dependent).

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	Top Mount
Reference width	Until 60 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Manual
Hinge type	Standard
Hinge position	Left
EAN code	8017709298371
Aesthetics	50's Style
Colour	Black
Design	Rounded
Finishing	Gloss
Material	Heat-moulded
Handle	External, fixed
Handle colour	Chrome
Logo colour	Chrome, applied logo
Side material	Steel
Side colour	Black
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Glass shelf profile colour	Chrome
Available colours	Orange, Pastel blue, White, Blue, Black, Cream, Pink, Red, Silver, Pastel green, Lime green
Number of compartments (fridge)	2 – Low temperature compartment, Fruit and vegetable compartment
Number of adjustable shelves (fridge)	2
Type of adjustable shelves	Glass
Number of fruit and vegetables drawers	1
Crisper cover	Yes
Type of crisper/vegetable drawers cover	Glass, Standard
Low temperature compartment	Yes
Internal light in fridge	Yes – LED
Door shelves with transparent cover	1
Number of adjustable door shelves	2
Adjustable door shelves with wire support	Yes
Number of bottle shelves	1
Bottle shelves with wire support	Yes
MultiFlow	Yes
Fan	Yes
Number of freezer shelves	1
Type of freezer shelves	Wire
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
Number of compressors	1
Refrigerant gas type	R600a
Refrigerant quantity	70 g
Type of compressor	Variable Speed Compressor
Foam agent	Cyclopentane
Annual energy consumption	168 kWh/year
Energy efficiency class	D
Airborne acoustical noise emission class	C
Noise level	37 dB(A) re 1 pW
Total volume	294 l
Sum of volumes – frozen compartment(s)	72 l
Sum of volumes – chill and unfrozen compartment(s)	222 l
Thaw time	30 h
4 star – Freezing capacity	4 kg/24h
Climatic class	SN, N, ST, T
EEI	80 %
Nominal power	100 W
Current	0,8 A
Voltage	220-240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug	(G) UK e Singapore
Width	600 mm
Depth without handle	728 mm
Product height with feet	1720 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm
Spacer depth	20 mm

Additional Details and Functions

The refrigerator compartment benefits from MultiFlow ventilation and an internal fan, providing forced distribution of cold air for even temperature distribution. LED interior lighting offers a more energy efficient and long lasting way of illuminating the appliance.

The four star freezing compartment supports better food preservation, with a freezing capacity of 4 kg/24 h and a thaw time of 30 h. An acoustic and visual door open alarm helps indicate when the door has been left open.

Symbols indicate energy efficiency class D and features such as ventilated cooling in the refrigerator compartment and LED interior lighting. Other glossary symbols, including those referring to A+++ appliances, inverter technology with heat pumps and Air plus, are described but not specifically attributed to this model.

Frequently Asked Questions

What is the total capacity of the SMEG FAB30LBL5UK?

The total volume is 294 l, with 222 l for the chill and unfrozen compartments and 72 l for the frozen compartment.

What type of cooling system does this fridge freezer use?

It has a fan assisted refrigerator and a static freezer. The refrigerator compartment features MultiFlow and an internal fan for ventilated cold air distribution.

What is the energy efficiency rating and annual consumption?

The energy efficiency class is D, with an annual energy consumption of 168 kWh/year and an EEI of 80 %.

How noisy is the SMEG FAB30LBL5UK in operation?

It has a noise level of 37 dB(A) re 1 pW and an airborne acoustical noise emission class of C.

Is this model suitable for use in the UK?

Yes. It is designed for 220–240 V, 50/60 Hz supply and is fitted with a (G) plug suitable for the UK and Singapore.

What are the main dimensions of the appliance?

The width is 600 mm, depth without handle is 728 mm, product depth with handle is 768 mm and height with feet is 1720 mm. With doors open at 90°, the depth is 1197 mm and the width with maximum doors opening is 926 mm.
