The SBC4604WNR is a 45cm compact electric blast chiller from the Dolce Stil Novo family, designed for fan assisted cooling and low temperature warming functions. Finished in black Eclipse glass with a full glass door and touch control TFT colour display, it offers automatic programmes, customisable recipes and multi-step use. Suitable for users who want to cool, deep freeze, preserve and gently warm food with electronic temperature control from −28 °C to 75 °C.

Key Features

Product family – Blast chiller: dedicated blast chilling appliance in the 45cm compact category.
Vitality system: appliance equipped with a vitality system for specialised cooling performance.
Dolce Stil Novo aesthetics: black colour, glass finishing and flat design with black Dolce Stil Novo handle and applied logo.
Fan assisted cooling type: electric, fan assisted operation with electronic temperature control.
Wide temperature range: minimum temperature −28 °C and maximum temperature 75 °C.
Automatic programmes: 8 automatic programmes with up to 2 multi-step functions and history of the last 10 functions utilised.
Multiple cold functions: Bottles Cooling, Cooling, Deep Freezing, Pre-cooling and Preservation.
Warming functions: Low Temperature Cooking, Proving, Ready to eat, Defrosting, Heating and Yoghurt.
Customisable recipes: up to 100 customisable recipes stored in the appliance.
Automatic cleaning: electric automatic drying cycle of the cavity to remove condensation.
Touch control interface: TFT graphic, colour touch screen display with touch guide via long press.
Safety features: Controls Lock / Child Safety, door open alarm, safety thermostat and heating suspended when door is opened.
Temperature probes: supports cooking with probe thermometer and cooling with probe; temperature probe included.
Compact 45cm design: compact appliance with 45cm height, suited to kitchen sets of small height.
Wi–Fi connectivity: appliances with Wi–Fi connectivity for monitoring and remote control via app (iOS and Android).
Stainless steel cavity: stainless steel interior with 3 shelf positions and metal racks.
Lighting: 1 W halogen light that switches on when the door is opened.
Energy and power: nominal power 270 W, voltage 220–240 V, current 2.5 A and frequency 50 Hz.
Refrigeration system: standard compressor using R290 refrigerant (58 g), climatic class SN, N, ST, T.
Accessories included: grid with back stop, bottle rack grid, temperature probe and microfiber cloth.
Alternative colours available: Stainless steel, Pure Black, Neptune Grey and Nero Lucido in addition to black.

Technical Specifications

Product family	Blast chiller
Category	45cm compact
Model	SBC4604WNR
Vitality system	Yes
Power supply	Electric
Heat source	Electric
Cooling type	Fan assisted
Aesthetics	Dolce Stil Novo
Colour	Black
Finishing	Glass
Design	Flat
Component finish	Copper
Material	Glass
Alternative colours available	Stainless steel, Pure Black, Neptune Grey, Nero Lucido
Glass type	Eclipse
Door	Full glass
Handle	Dolce Stil Novo, colour Black
Logo	Applied
Automatic programmes	8
Number of warming functions	6
Number of cold functions	5
Automatic cleaning	Electric Automatic cleaning
Customisable recipes	100
Cold functions	Bottles Cooling, Cooling, Deep Freezing, Pre-cooling, Preservation
Warming functions	Low Temperature Cooking, Proving, Ready to eat, Defrosting, Heating, Yoghurt
Multi-step	Yes, up to 2 functions
Display / Clock	TFT graphic, colour touch screen
Control setting	Touch control
Door open alarm	Yes
Minute minder	Yes
Timer	2
Controls Lock / Child Safety	Yes
Cooking with probe thermometer	Yes
Cooling with probe	Yes
Showroom demo option	Yes
Tones	Polyphonic
History	Yes, the last 10 functions utilised
Touch guide	Yes, with a long press on the display
Type of compressor	Standard
Refrigerant gas type	R290
Refrigerant quantity	58 g
Climatic class	SN, N, ST, T
Temperature control	Electronic
Minimum temperature	−28 °C
Maximum temperature	75 °C
Cavity material	Stainless steel
Shelf positions	3
Shelves type	Metal racks
Number of lights	1
Light type	Halogen
Light power	1 W
Light when door is opened	Yes
Upper heating element power	250 W
Door opening type	Standard opening
Safety thermostat	Yes
Heating suspended when door is opened	Yes
Gross volume	34 l
Grid with back stop	1
Bottle rack grid	Yes
Temperature probe	Yes
Other accessory	Microfiber cloth
Voltage	220–240 V
Plug	(F;E) Schuko
Nominal power	270 W
Current	2,5 A
Frequency	50 Hz
Power supply cable length	200 cm

Additional Details and Usage

Cooling and storage functions

Cooling quickly lowers food temperature from 80/90 °C to 3 °C in less than 90 minutes to prevent bacterial growth, prolong the average life of food and maintain the quality of food. Cold storage allows food to be kept at a desired temperature between −35 °C and +75 °C and served at its best to enhance flavours and aromas.

Pre-cooling cools the cavity to −30 °C before inserting food into the blast chiller to ensure the best cooling and freezing results; a 15–minute pre-cooling cycle is recommended. Deep freezing rapidly lowers food from 0/90 °C to −18 °C in less than 270 minutes to extend the average life of food and keep organoleptic and nutritional characteristics, avoiding macro-crystal formation that can damage food fibres.

Bottles cooling makes it possible to quickly cool wine and beverage bottles, reducing the need for storage in the refrigerator; cooling takes place at about 1 °C per minute.

Warming, cooking and proving

Ready to eat keeps food safely at refrigerator temperature throughout the day and heats it just before return so it is warm and ready to be consumed. Low temperature cooking cooks food at a constant temperature lower than traditional cooking; meat becomes more tender and juicy, maintaining a softness associated with this technique.

Dough leavening / Yogurt creates suitable conditions for correct leavening by keeping mixtures at controlled temperatures for the desired time and avoiding sudden humidity changes. This feature also allows the creation of homemade yogurt.

Cleaning and maintenance

Electric Automatic cleaning is a drying cycle of the cavity to be run with the door open, eliminating condensation formed during use.

Controls and connectivity

Touch controls allow the appliance to be programmed by simply touching the control panel. Appliances with Wi–Fi connectivity can be monitored and remotely controlled via the SmegConnect app using compatible smartphones and tablets (iOS and Android).

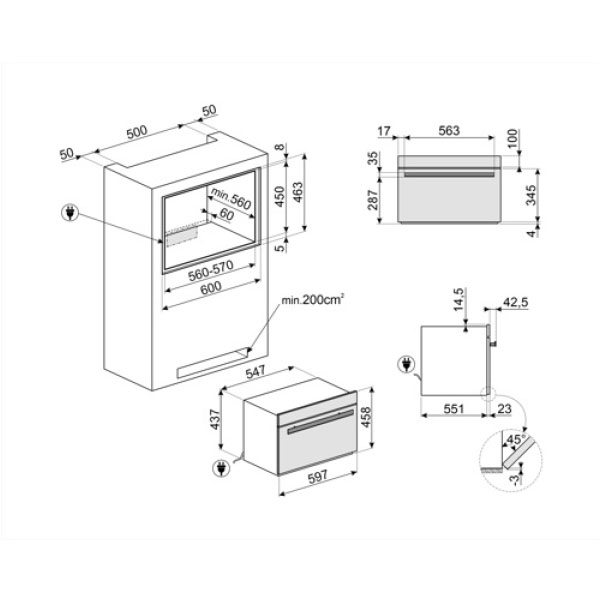

Compact installation

Compact appliances with a height of 45 cm are a solution designed to meet functional requirements where kitchen units have a small installation height. They are available in several types and different styles.

Frequently Asked Questions

What temperature range does the SBC4604WNR support?

The appliance has electronic temperature control with a minimum temperature of −28 °C and a maximum temperature of 75 °C. Cold storage can maintain food between −35 °C and +75 °C.

How fast can it cool or freeze food?

Cooling reduces food temperature from 80/90 °C to 3 °C in less than 90 minutes. Deep freezing lowers food from 0/90 °C to −18 °C in less than 270 minutes, helping to extend the average life of food and preserve its characteristics.

What is the capacity of the blast chiller?

The gross volume of the cavity is 34 litres. The capacity indicates the amount of usable space in the oven cavity in litres.

Which accessories are included?

The appliance is supplied with a grid with back stop, a bottle rack grid, a temperature probe and a microfiber cloth.

Does it offer child safety features?

Yes. It includes Controls Lock / Child Safety, a door open alarm, a safety thermostat and suspension of heating when the door is opened.

Can I connect it to Wi–Fi?

Yes. Appliances with Wi–Fi connectivity can be monitored and remotely controlled via the SmegConnect app on compatible iOS and Android devices.
