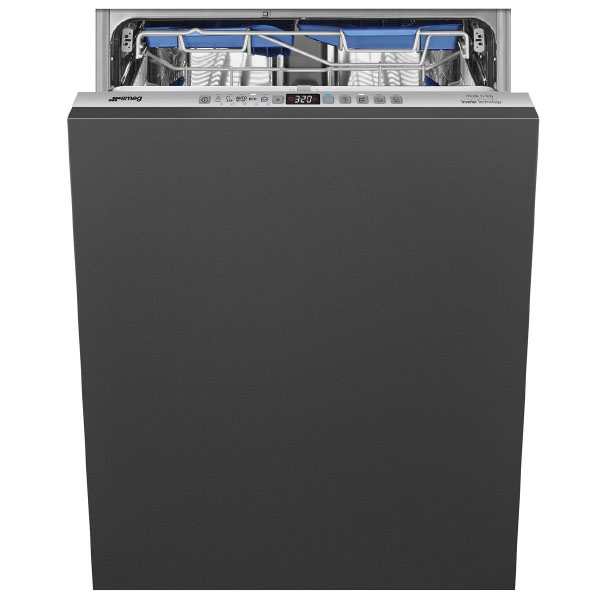

The Smeg ST323PM is a fully–integrated, 60 cm wide, semi professional dishwasher with a commercial height of 82 cm and a 14 place setting capacity. It is designed for built–in installation and features an Inverter 2.0 motor, Planetarium washing system and natural condenser drying with Dry Assist+ automatic door opening. With 10+1 programmes, flexible 3–basket layout and energy efficiency class C, it combines powerful performance with versatile loading.

Key Features

Fully–integrated 60 cm design for built–in installation with commercial height 82 cm and self balancing FLEXIFIT hinges.
Semi professional type with Professional option and professional programmes for significantly reduced washing times.
14 place setting capacity with 3 baskets, including FlexiDuo third cutlery basket for flexible loading of cutlery, cups, glasses and utensils.
Planetarium washing system with patented spray arm delivering full coverage and impeccable cleaning in every nook and cranny.
Inverter 2.0 motor for greater efficiency, durability, high performance and reduced energy consumption and noise level.
10+1 programmes including Soak, Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65 °C, Mix, Intense, Self clean, Hygiene 99,9%, Ultra Express and Crystal Pro.
Wide temperature range with washing temperatures of 45, 50, 65, 70 and 75 °C.
Dry Assist+ drying system combining natural condenser drying with automatic door opening at the end of the cycle for improved drying and energy saving.
FlexiZone 1/2 load option allowing reduced load washing without restrictions on item placement, saving energy, water and time.
ActiveLight floor indicator projecting a red light on the floor while the appliance is running and switching off at the end of the cycle.
Extra Glide telescopic guides on the upper basket for smooth, stable and silent extraction, even with heavy loads.
Total Acquastop flood protection with electronic device monitoring water levels, detecting leaks and switching off the water supply when necessary.
Aquatest turbidity sensor measuring water clarity during auto programmes to ensure minimum water and energy consumption.
Energy efficiency class C with 75 kWh per 100 cycles on the eco programme and 10.5 litres water consumption per cycle.
Quiet operation with airborne acoustical noise emissions of 42 dB(A) re 1 pW, noise emission class B.
Hygiene 99.9% high–temperature programme with 75 °C rinse to guarantee removal of 99.9% of germs and bacteria for sanitising.
Ultra Express and Full express – 60 minutes programmes, plus Quick Time option to reduce wash cycle length by up to 55%.
Stainless steel tank and filter with concealed heating element and anti–drip inserts in the lower basket to improve drying.
Electronic controls with 3–digit display showing delayed start and programme time, plus salt and rinse aid indicators and ActiveLight end–of–cycle signal.

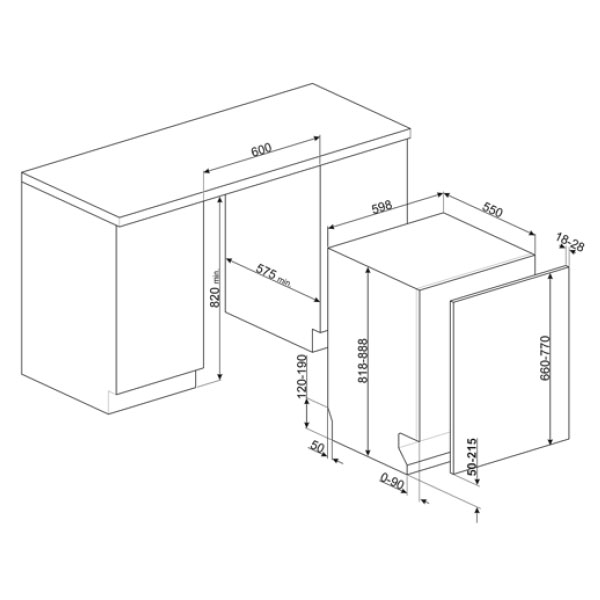

Flexible installation with adjustable feet from 820 to 890 mm, plinth height 50–215 mm and back feet adjustable from the front.
Compatible accessories including FlexiFit hinge kits, glass holder kit, toe kick kits and extension kit (specific accessory codes listed below).

Technical Specifications

Product family	Dishwashers
Model	ST323PM
Type	Semi professional
Installation	Fully–integrated built–in
Kitchen panel	Not supplied
Width	60 cm (598 mm)
Commercial height / product height	82 cm (818 mm)
Depth	545 mm
Depth with door open	1146 mm
Adjustable feet	7 cm, from 820 to 890 mm
Plinth height (min–max)	50 – 215 mm
Frontal panel weight (min–max)	2 – 11 kg
Rated capacity	14 place settings
Number of baskets	3, FlexiDuo
Motor	Inverter 2.0
Washing system	Planetarium with third spray arm (single)
Water softener	With electronic setting
Max water hardness	100°fH; 58°dH
Water supply	Single; cold/hot water max. 60°C – energysave with hot water up to 35°C
Drying system	Natural condenser drying with Dry Assist+ automatic door opening
Tank material	Stainless steel
Filter	Stainless steel
Concealed heating element	Yes
Flood protection system	Total Acquastop
Turbidity sensor	Aquatest
Display type	3 digit
Controls	Electronic
Display functions	Delayed start, programme time indicator
Programme graphics	Symbols
On/off indicator	Yes
Salt light indicator	Light
Rinse aid indicator	Light
End of cycle indicator	ActiveLight
Energy efficiency class (washing cycle)	C
Programme duration (eco)	4:25 h:min
Energy consumption per 100 cycles (eco)	75 kWh
Water consumption per cycle	10.5 litres
Energy efficiency Index (EEI)	43.8
Airborne acoustical noise emissions	42 dB(A) re 1 pW
Noise emission class	B
Connected power	5450 W
Current	32 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single–phase
Power supply cable length	200 cm
Basket colour	Grey
Basket components colour	Grey
Inner components colour	Blue
Handle type	Plastic with stainless steel insert on upper and lower basket
Upper basket	With 3 foldable racks, glass holder, height adjustment on three levels, Extra Glide sliding guides
Largest loadable dish in upper basket	19.0 cm
Lower basket	With 4 foldable racks and anti–drip inserts
Largest loadable dish in lower basket	30.0 cm
Steam protection	In plastic
Hinges	Self balancing, sliding, FLEXIFIT
Back feet adjustment	Back feet adjustable from front
Top cover	In plastic
Additional gaskets	Yes, with stainless steel plate
Back cover	Yes
EAN code	8017709307363

Programmes and Options

Washing temperatures

Available washing temperatures are 45, 50, 65, 70 and 75 °C.

Standard and special programmes

Soak – provides a rinse to prevent dirt from drying.
Crystal – programme dedicated to delicate dishes such as glasses and china; also described as Crystals.
Full express – 60 minutes – specific fast wash cycle with 60 minute duration.
ECO – economic wash programme using a low amount of water and energy for environmentally friendly cleaning.
Auto sensor 45–65 °C (Auto 45–65) – regulates cycle length based on need for pre–wash and number of rinses.
Mix – programme present; detailed description Not stated in source.
Intense – programme present; detailed description Not stated in source.
Self clean – programme present for cleaning the dishwasher itself.
Hygiene 99,9% – high–temperature washing programme; 75 °C rinse guarantees removal of 99.9% of germs and bacteria, ideal for sanitising.
Ultra Express – very quick programme; detailed duration Not stated in source.
Crystal Pro – additional programme focused on crystal care; detailed description Not stated in source.
Professional programmes – convert household appliance into semiprofessional one, significantly reducing washing time to obtain an approximately 16 minute cycle.
Special quick programme for washing glasses – programme present for glassware.

Options

Dry Assist+ option – automatically opens the door at end of cycle to speed up drying and improve energy efficiency.
Delay timer option – postpones programme start by up to 24 hours, with automatic soak.
1/2 load FlexiZone option – allows washing of reduced loads saving energy, water and time, with no restrictions on where items are placed.
Professional option – enables access to semiprofessional programmes with very short cycles.
Intensive wash zone option – option present; detailed description Not stated in source.
Quick Time option – can reduce the length of the wash cycle by up to 55%.

Loading and baskets

FlexiDuo third basket – consists of two separate, moveable modules that can be handled independently, stacked and/or removed. Allows arrangement of cutlery, small cups, tall glasses, bulky utensils and pots and pans in combination with the upper basket.
Upper basket – with 3 foldable racks and glass holder, height adjustable on three levels; Extra Glide guides facilitate extraction and loading, even at full load.
Lower basket – with 4 foldable racks and anti–drip inserts to improve the drying process.

Installation and integration

FlexiFit hinge system – allows installation in kitchens with a plinth from 5 cm to 21.5 cm. The door panel has a sliding movement from bottom to top to avoid interference with the plinth and to align door and plinth with surrounding furniture.
Steam protection and gaskets – plastic steam protection and additional gaskets with stainless steel plate help protect surrounding cabinetry.

Compatible Accessories

The following accessories are listed as compatible:

KIT82CN, KIT82CX, KIT82SPRAN, KIT82SPRMW, KIT82SPRX, KITFLEXI – kit for 60 cm dishwashers with FlexiFit hinges for door panel weight >11 kg (max 15 kg at 82 cm and 13.5 kg at 86 cm).
KITGH – glass holder kit to be fitted on the first basket when foldable racks are present.
KITPL60B – toe kick kit in white with adjustable height and depth, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60N – toe kick kit in black with adjustable height and depth, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60X – toe kick kit in stainless steel with adjustable height and depth, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPLV2 – kit extension for dishwasher and washing machine, length 2 metres.

Frequently Asked Questions

What is the capacity of the Smeg ST323PM dishwasher?

The Smeg ST323PM has a rated capacity of 14 place settings, supported by three baskets including the flexible FlexiDuo third basket.

How quiet is this dishwasher during operation?

The airborne acoustical noise emissions are 42 dB(A) re 1 pW, with a noise emission class of B. Excellent insulation and special devices keep noise to a minimum.

Can I use a delayed start with this dishwasher?

Yes, the delay timer option allows you to postpone the start of the programme by up to 24 hours and includes an automatic soak function. The 3–digit display shows the delayed start and programme time.

What safety features are included for water protection?

The ST323PM features Total Acquastop flood protection. An electronic device fitted to the water intake hose monitors water levels, detects leaks and switches off the water supply immediately when necessary. A water softener with electronic setting and Aquatest turbidity sensor are also included.

How does the Dry Assist+ function work?

At the end of the wash cycle, Dry Assist+ automatically opens the dishwasher door. This helps to speed up the drying process and, in addition to saving energy, ensures effective drying of the dishes.

Is there a programme for sanitising items at high temperature?

Yes, the Hygiene 99,9% programme uses a high–temperature wash with a 75 °C rinse. This guarantees the removal of 99.9% of germs and bacteria, making it suitable for sanitising.
