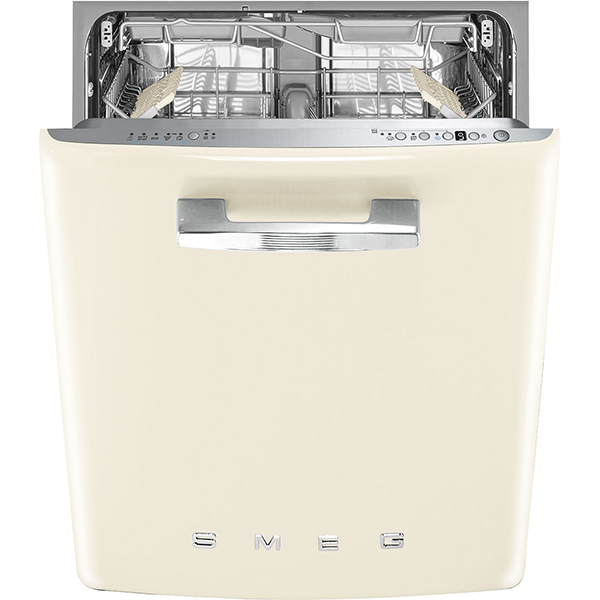

The Smeg DIFABCR is a 60 cm under counter built–in dishwasher with a 13 place setting capacity and Energy Efficiency Class B. It offers 10+1 programmes, including ECO, Auto 45–65 °C and Hygiene 99,9%, supported by an Inverter 2.0 motor and Planetarium washing system. With three grey baskets featuring FlexiDuo, EasyGlide and foldable racks, plus Dry Assist+ automatic door opening, it is designed for efficient cleaning and drying performance.

Key Features

60 cm under counter built–in design for seamless integration into kitchens (kitchen panel not supplied).
13 place setting capacity with three grey baskets and FlexiDuo 3rd cutlery basket.
Energy Efficiency Class B with an energy efficiency index (EEI) of 37.9.
10+1 programmes including Soak, Express 27', Crystal, Full express 60 minutes, ECO, Auto 45–65 °C, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%.
Wide temperature range with washing temperatures of 38, 45, 50, 55, 65, 70 and 75 °C.
Inverter 2.0 motor for greater efficiency, durability, high performance and lower energy consumption and noise level.
Planetarium washing system with third single spray arm for thorough cleaning.
Dry Assist+ automatic door opening at end of cycle to enhance natural condenser drying and save energy.
FlexiZone 1/2 load option allowing reduced loads with energy, water and time savings and no placement restrictions.
Aquatest turbidity sensor measuring water clarity during auto programmes to minimise water and energy consumption.
Total Acquastop flood protection system monitoring water levels, detecting hose leaks and switching off the water supply when necessary.
Quiet operation with airborne acoustical noise emissions of 44 dB(A) re 1 pW and Quiet (–2 dB) programme.
Hygiene 99,9% high–temperature programme with 75 °C rinse to remove 99.9% of germs and bacteria for sanitising.
EasyGlide upper basket system for convenient unloading and flexible loading.
Foldable racks in both upper (3) and lower (4) baskets for versatile arrangement.
Largest loadable dishes up to 19.0 cm in the upper basket and 30.0 cm in the lower basket.
Electronic controls with 1 digit display showing delayed start and programme symbols and labels.
Delay timer option up to 9 hours with automatic soak and display of delayed start.
Stainless steel tank and filter with concealed heating element for durability.
Water softener with electronic setting and maximum water hardness of 100°fH;58°dH.
Single water supply for cold/hot water up to 60 °C, with energy saving using hot water up to 35 °C.
Self balancing fixed hinges with adjustable feet from 820 to 890 mm for flexible installation height.
End of cycle acoustic signal plus salt and rinse aid indicator lights and on/off indicator.
Compatible accessories including glass holder kit, toe kick kits in various colours and an extension kit for dishwasher and washing machine.

Technical Specifications

Product family	Dishwashers
Model	DIFABCR
EAN code	8017709307899
Installation	Under counter built–in
Kitchen panel	Not supplied
Width	60 cm / 598 mm
Commercial height	82 cm
Product height	818 mm
Depth	545 mm
Depth with open door	1146 mm
Rated capacity	13 place settings (ps)
Number of baskets	3, FlexiDuo
Basket colour	Grey
Basket components colour	Grey
Inner components colour	Cup shelves, handle, anti drop inserts, cutlery basket: same colour of dishwasher
Upper basket	With 3 foldable racks, glass holder, EasyGlide system, height adjustment on three levels
Lower basket	With 4 foldable racks, anti–drip inserts
Cutlery basket	Yes (FlexiDuo 3rd basket)
Largest dish in upper basket	19.0 cm
Largest dish in lower basket	30.0 cm
Handle	In plastic on upper and lower basket
Motor	Inverter 2.0
Washing system	Planetarium
Third spray arm	Single
Water softener	With electronic setting
Turbidity sensor	Aquatest
Flood protection	Total Acquastop
Water supply	Single; cold/hot water max. 60 °C – energysave with hot water up to 35 °C
Max water hardness	100°fH;58°dH
Drying system	Natural condenser drying with Dry Assist+ automatic door opening system at end of cycle
Steam protection	In plastic
Tank material	Stainless steel
Filter	Stainless steel
Heating element	Concealed heating element
Hinges	Self balancing with fixed hinges
Min. and max plinth height	100 – 228 mm
Adjustable feet	7 cm, from 820 to 890 mm
Back cover	Yes
Back feet adjustable from front	Yes
Top cover	In plastic
Controls	Electronic
Display type	1 digit
Display functions	Delayed start; programme graphics with symbols and label
On/off indicator	Yes
Salt light indicator	Light
Rinse aid indicator	Light
End of cycle indicator	Acoustic signal
Number of programmes	10+1
Washing temperatures	38, 45, 50, 55, 65, 70, 75 °C
Energy Efficiency Class (washing cycle)	B
Energy consumption (per 100 cycles, ECO)	63 kWh
Water consumption (per cycle)	9.0 litres
Programme duration (ECO)	4:25 h:min
Airborne noise emissions	44 dB(A) re 1 pW
Noise emission class	B
Energy efficiency index (EEI)	37.9
Connected power	1800 W
Current	13 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single–phase
Power supply cable length	140 cm
Plug	(G) UK e Singapore

Programmes, Options and Usage Details

Programmes

Available programmes include: Soak; Express 27'; Crystal; Full express – 60 minutes; ECO; Auto sensor 45–65; Mix; Quiet (–2 dB); Intense; Self clean; Hygiene 99,9%.

Auto 45°–65°: Regulates cycle length depending on pre–wash needs and number of rinses required.
Crystals: Dedicated to delicate dishes such as glasses and china.
ECO: Uses a low amount of water and energy for an environmentally friendly option.
Normal programme: Suitable for normal degrees of dirt for everyday use.
Soak programme: Provides a rinse to prevent dirt from drying.
Rapid 27 mins: Quick programme taking 27 minutes to wash a load.
Ultraclean option: Performs a final rinse at 70 °C eliminating virtually all bacteria.
Hygiene 99.9%: High–temperature washing programme with 75 °C rinse to remove 99.9% of germs and bacteria, ideal for sanitising.

Options

Dry Assist+ option: Opens the door automatically at the end of the wash to improve drying and save energy.
Delay timer option: Up to 9 hours with automatic soak (glossary also notes up to 24 hours delay timer availability depending on model).
1/2 load FlexiZone option: Allows washing a reduced load saving energy, water and time with no restrictions on where items are placed.
Special programmes option: Yes.

Safety and Protection

Total Acquastop: Electronic device fitted to the water intake hose monitors water levels, detects leaks and switches off water supply immediately when necessary.
Noise level reduction: Excellent insulation and special devices keep noise to a minimum.
Anti–drip nozzles (on suitable models): Special polymer nozzles that improve the drying process.

Loading and Flexibility

EasyGlide: Convenient system for easy unloading and maximum flexibility of load.
FlexiDuo 3rd cutlery basket: Two separate moveable modules to arrange cutlery, small cups, ladles or bulky utensils as desired.

Compatible Accessories

KITGH: Kit glass holder to be fitted on the first basket (only if there are foldable racks).
KITPL60FABB: Toe kick kit in white with adjustable height for fully integrated and underbench models with fixed fulcrum; can also be installed on models with variable fulcrum or flexifit hinges.
KITPL60FABN: Toe kick kit in black with adjustable height for fully integrated and underbench models with fixed fulcrum; can also be installed on models with variable fulcrum or flexifit hinges.
KITPL60FABX: Toe kick kit in stainless steel with adjustable height for fully integrated and underbench models with fixed fulcrum; can also be installed on models with variable fulcrum or flexifit hinges.
KITPLV2: Kit extension for dishwasher and washing machine, length 2 metres.

Alternative Product

Alternative model listed: DIFABBL (colour: Black).

Frequently Asked Questions

What size space do I need for the Smeg DIFABCR dishwasher?

The dishwasher is 598 mm wide, 818 mm high and 545 mm deep. With the door open the depth is 1146 mm. Adjustable feet allow the height to be set from 820 to 890 mm, and the plinth height can range from 100 to 228 mm.

How many place settings and baskets does this dishwasher have?

The Smeg DIFABCR has a rated capacity of 13 place settings and comes with three baskets, including a FlexiDuo 3rd cutlery basket. The upper and lower baskets both feature foldable racks for flexible loading.

Which washing programmes are available?

It offers 10+1 programmes: Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%. Additional glossary descriptions include Normal, Rapid 27 mins and Ultraclean options.

What are the energy and water consumption figures?

The dishwasher has Energy Efficiency Class B with an energy efficiency index of 37.9. Energy consumption is 63 kWh per 100 cycles based on the ECO programme, water consumption is 9.0 litres per cycle, and the ECO programme duration is 4:25 h:min.

How loud is the Smeg DIFABCR in operation?

Airborne acoustical noise emissions are 44 dB(A) re 1 pW with a noise emission class of B. There is also a Quiet (–2 dB) programme, and the appliance benefits from excellent insulation and special devices to keep noise to a minimum.

What safety features does this dishwasher include?

Safety features include the Total Acquastop flood protection system, which monitors water levels, detects hose leaks and switches off the water supply when necessary. The appliance also uses a concealed heating element and offers steam protection in plastic.
