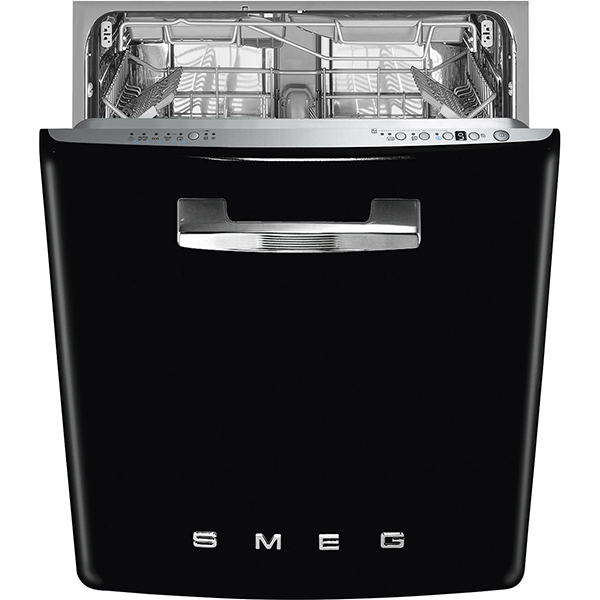

The Smeg DIFABBL is a 60 cm under counter built-in dishwasher with a commercial height of 82 cm and a 13 place setting capacity. Designed with three grey baskets including a FlexiDuo third basket and EasyGlide upper basket, it offers 10+1 programmes with washing temperatures from 38 °C to 75 °C. Key technologies such as the Planetarium washing system, Inverter 2.0 motor and Dry Assist+ provide efficient washing, drying and flexible loading options.

Key Features

60 cm under counter built-in design with commercial height 82 cm for integration under kitchen worktops.
13 place setting rated capacity supported by 3 baskets including FlexiDuo third cutlery basket.
10+1 washing programmes including Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%.
Wide temperature range with washing temperatures at 38, 45, 50, 55, 65, 70 and 75 °C.
Planetarium washing system with third spray arm and Aquatest turbidity sensor for efficient washing performance.
Inverter 2.0 motor designed for high performance with reduced energy consumption and noise level.
Dry Assist+ automatic door opening at the end of the cycle to enhance natural condenser drying and help save energy.
Hygiene 99,9% high-temperature programme with 75 °C rinse to help remove 99.9% of germs and bacteria, ideal for sanitising.
Quiet programme (–2 dB) supported by insulation and special devices that help keep noise to a minimum.
FlexiDuo third basket system formed of two separate moveable modules for arranging cutlery, small cups, ladles and bulky utensils.
FlexiZone 1/2 load option allows washing reduced loads with savings in energy, water and time, with no restriction on item placement.
EasyGlide upper basket system for convenient unloading and flexible loading of dishes.
Adjustable upper basket on three levels to accommodate larger items.
Generous loading heights – up to 19.0 cm in the upper basket and 30.0 cm in the lower basket.
Lower basket with 4 foldable racks and anti–drip inserts to aid loading and drying.
Electronic controls with 1-digit display showing delayed start and symbol/label programme graphics.
Convenient indicators including on/off, salt light, rinse aid light and acoustic end-of-cycle signal.
Total Acquastop flood protection monitoring water levels and hose leaks, switching off water supply when necessary.
Stainless steel tank and filters with concealed heating element for durability and clean interior design.
Energy Efficiency Class B with 63 kWh consumption per 100 cycles (eco programme) and 9.0 litres water per cycle.
Low airborne acoustical noise of 44 dB(A) re 1 pW with noise emission class B.
Water supply flexibility with single cold or hot water connection up to 60 °C and energysave with hot water up to 35 °C.
Adjustable installation with 7 cm adjustable feet (820–890 mm) and plinth height range 100–228 mm.
Compatible accessories including kit glass holder (KITGH), toekick kits in white, black and stainless steel, and a 2 m extension kit (KITPLV2).

Technical Specifications

Product family	Dishwashers
Model	DIFABBL
Installation	Under counter built-in
Width	60 cm (598 mm)
Commercial height	82 cm (Product Height 818 mm)
Depth	545 mm
Depth with open door	1146 mm
Kitchen panel	Not supplied
Number of baskets	3, FlexiDuo
Basket colour	Grey
Basket components colour	Grey
Inner components colour	Grey
Largest dish in upper basket	19,0 cm
Largest dish in lower basket	30,0 cm
Upper basket	With 3 foldable racks, glass holder, height adjustment on three levels, EasyGlide system
Lower basket	With 4 foldable racks and anti–drip inserts
Cutlery	Cutlery basket and FlexiDuo third basket
Handle	In plastic on upper and lower basket
Motor	Inverter 2.0
Washing system	Planetarium
Third spray arm	Single
Water softener	With electronic setting
Turbidity sensor	Aquatest
Flood protection system	Total Acquastop
Water supply	Single; cold/hot water max. 60 °C – energysave with hot water up to 35 °C
Max water hardness	100°fH;58°dH
Drying system	Natural condenser drying, with Dry Assist + automatic door opening system at the end of the cycle
Steam protection	In plastic
Tank material	Stainless steel
Filter	Stainless steel
Concealed heating element	Yes
Hinges	Self balancing with fixed hinges
Min. & max plinth height	100 – 228 mm
Adjustable feet	7 cm, from 820 to 890 mm
Back cover	Yes
Back feet adjustable from front	Yes
Top cover	In plastic
Display type	1 digit
Controls	Electronic
Display functions	Delayed start
Programme graphics	Symbols and label
On/off indicator	Yes
Salt light indicator	Light
Rinse aid indicator	Light
End of cycle indicator	Acoustic signal
Energy Efficiency Class (washing cycle)	B
Energy consumption (per 100 cycles, eco)	63 kWh
Rated capacity	13 place settings (ps)
Water consumption (per cycle)	9,0 litres
Programme duration (eco)	4:25 h:min
Airborne acoustical noise emissions	44 dB(A) re 1 pW
Airborne acoustical noise emission class	B
Energy efficiency index (EEI)	37,9
Connected power	1800 W
Current	13 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single-phase
Power supply cable length	140 cm
Plug	(G) UK e Singapore
EAN code	8017709307882

Programmes, Options and Usage

Washing programmes

The appliance offers 10+1 programmes: Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%.

Soak programme provides a rinse to prevent dirt from drying.
Express 27' rapid programme takes just 27 minutes to wash a load.
Crystal (Crystals) programme is dedicated to delicate dishes such as glasses and china.
ECO programme uses a low amount of water and energy for an environmentally friendly option.
Auto 45°–65° programme regulates cycle length according to pre-wash need and number of rinses required.
Hygiene 99,9% high-temperature programme with 75 °C rinse for removal of 99.9% of germs and bacteria, ideal for sanitising.
Self clean programme maintains the appliance’s internal cleanliness. (Detail level: Not stated in source.)

Options

Dry Assist+ option opens the door automatically at the end of the wash, enhancing drying while saving energy.
Delay timer option up to 9 hours with automatic soak; general delay timer description allows postponing start by up to 24 hours depending on model.
1/2 load FlexiZone option allows washing a reduced load saving energy, water and time with no restriction on where items are placed.
Special programmes option provided. (Exact list of special programmes: Not stated in source.)
Ultraclean option performs a final rinse at 70 °C eliminating virtually all bacteria.

Loading and flexibility

The FlexiDuo third basket consists of two separate, moveable modules so cutlery, small cups, ladles or bulky utensils can be arranged as required. The EasyGlide system on the upper basket aids easy unloading and helps maximise loading flexibility. Foldable racks in both upper and lower baskets support different dish types, while anti–drip inserts in the lower basket help improve drying.

Water and safety systems

Aquatest measures water clarity during auto programmes to ensure minimal water and energy consumption. Total Acquastop uses an electronic device on the water intake hose to monitor water levels, detect hose leaks and switch off the water supply when necessary. Noise levels are kept low through insulation and special devices.

Frequently Asked Questions

What is the capacity of the Smeg DIFABBL dishwasher?

The dishwasher has a rated capacity of 13 place settings (ps), supported by three baskets including a FlexiDuo third basket and a separate cutlery basket.

How efficient is this dishwasher in terms of energy and water use?

It has an Energy Efficiency Class B with an energy consumption of 63 kWh per 100 cycles based on the eco programme. Water consumption is 9.0 litres per cycle and the eco programme duration is 4:25 h:min.

What are the available washing programmes?

There are 10+1 programmes: Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99,9%.

Does the dishwasher have safety features against leaks and flooding?

Yes. The Total Acquastop system includes an electronic device on the water intake hose that monitors water levels, detects hose leaks and switches off the water supply immediately when necessary.

What is the noise level during operation?

Airborne acoustical noise emissions during operation are 44 dB(A) re 1 pW, with a noise emission class of B. A dedicated Quiet (–2 dB) programme is also available.

Which accessories are compatible with this model?

Compatible accessories listed include the KITGH kit glass holder (for baskets with foldable racks), toekick kits KITPL60FABB (white), KITPL60FABN (black) and KITPL60FABX (stainless steel), and the KITPLV2 2 m extension kit for dishwasher and washing machine.
