The SMEG DI323BL is a 60 cm fully integrated built–in dishwasher with a 13 place setting capacity and three baskets including a FlexiDuo third basket. It offers 10+1 programmes, washing temperatures from 38°C to 75°C and a B energy efficiency class. With a Planetarium washing system, Hygiene 99.9% high–temperature programme and Dry Assist+ automatic door opening, it is designed for efficient cleaning and drying of everyday and delicate dishes.

Key Features

Fully integrated 60 cm design – Built–in installation with commercial height 82 cm and FlexiFit self–balancing sliding hinges.
13 place setting capacity – Rated capacity (ps) 13 with three grey baskets including FlexiDuo third basket and cutlery basket.
10+1 wash programmes – Includes Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Auto sensor 45–65, Mix, Quiet (–2 dB), Intense, Self clean and Hygiene 99.9%.
Wide temperature range – Washing temperatures of 38, 45, 50, 55, 65, 70 and 75°C for different types of loads.
Planetarium washing system – Washing system: Planetarium with third spray arm (single) and Aquatest turbidity sensor.
Hygiene 99.9% programme – High–temperature washing with 75° rinse designed to guarantee the removal of 99.9% of germs and bacteria.
Dry Assist+ drying – Natural condenser drying with Dry Assist+ automatic door opening system at the end of the cycle.
Quiet performance – Airborne acoustical noise emissions of 42 dB(A) re 1 pW with a Quiet (–2 dB) programme option.
Energy efficiency class B – Energy consumption 63 kWh per 100 cycles (eco programme) and 9.0 litres water per cycle.
FlexiDuo third basket – Two separate and moveable modules to arrange cutlery, small cups, ladles or bulky utensils.
FlexiZone 1/2 load option – 1/2 load FlexiZone option (varied distribution) allowing washing of a reduced load.
Delay timer up to 24 hours – Delay timer option up to 24 hours with automatic soak and delayed start display.
ActiveLight end–of–cycle indicator – Projects a red spot onto the floor beneath the dishwasher when the appliance is in use.
Total Acquastop flood protection – Electronic device monitoring water levels, detecting leaks and switching off the water supply when necessary.
Adjustable upper basket – Upper basket with three foldable racks, glass holder and height adjustment on three levels with Extra Glide sliding guides.
Large dish capacity – Largest loadable dish in upper basket 19.0 cm and in lower basket 30.0 cm.
Stainless steel tank and filter – Stainless steel tank and stainless steel filter with concealed heating element.
Water softener with electronic setting – Max water hardness 100°fH; 58°dH.
Cold or hot water supply – Single water supply, cold/hot water max. 60°C, with energy saving when using hot water up to 35%.
Compatible accessories available – Kits for FlexiFit hinges, glass holder, toe kick panels and extension kit for dishwasher and washing machine.

Technical Specifications

Product code	DI323BL
Product family	Dishwashers
Installation	Fully–integrated built–in (kitchen panel not supplied)

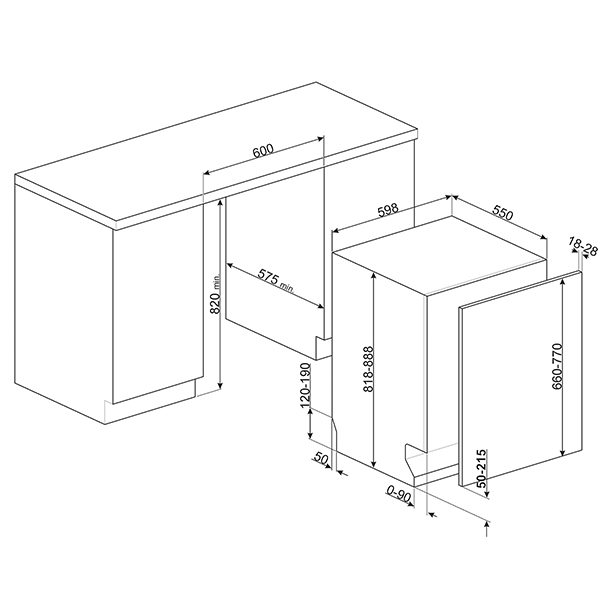

Width	60 cm / 598 mm
Commercial height / Product height	82 cm / 818 mm
Depth	545 mm (depth with open door 1146 mm)
Rated capacity	13 place settings (ps)
Number of programmes	10+1
Washing temperatures	38, 45, 50, 55, 65, 70, 75°C
Programmes	Soak; Express 27'; Crystal; Full express – 60 minutes; ECO; Auto sensor 45–65; Mix; Quiet (–2 dB); Intense; Self clean; Hygiene 99.9%
Options	Dry Assist+ option; Delay timer option up to 24 hours, with automatic soak; 1/2 load FlexiZone option (varied distribution); Special programmes option
Basket configuration	3 baskets, FlexiDuo; basket colour grey; basket components colour grey; inner components colour blue
Upper basket	With 3 foldable racks; glass holder; height adjustment on three levels; Sliding Guides Extra Glide; handle in plastic; largest loadable dish 19.0 cm
Lower basket	With 4 foldable racks; anti–drip inserts; handle in plastic; largest loadable dish 30.0 cm
Cutlery storage	FlexiDuo 3rd cutlery basket; cutlery basket
Display and controls	Electronic controls; 3 digit display; programme graphics with symbols and label; display for delayed start and programme time indicator
Indicators	On/off indicator; salt light indicator (light); rinse aid indicator (light); end of cycle indicator ActiveLight
Washing system	Planetarium; third spray arm single; water softener with electronic setting; turbidity sensor Aquatest; System WaterSave depending on model (mentioned in glossary)
Flood protection	Total Acquastop
Water supply	Single; cold/hot water max. 60°C – energysave with hot water up to 35%
Max water hardness	100°fH; 58°dH
Drying system	Natural condenser drying, with Dry Assist+ automatic door opening system at the end of the cycle
Interior materials	Tank material stainless steel; filter stainless steel; steam protection in plastic; concealed heating element
Hinges	Self balancing, Sliding, FLEXIFIT; models with new Flexi Fit hinges can be installed in kitchens with a plinth of just 5 cm
Frontal panel weight	Min. and max. frontal panel weight 2 – 11 kg
Plinth height	Min. and max plinth height 50 – 215 mm
Adjustable feet	7 cm, from 820 to 890 mm; back feet adjustable from front; back cover; top cover in plastic
Energy efficiency class (washing cycle)	B (Energy efficiency Index (EEI) 37.9)
Energy consumption	63 kWh per 100 cycles, based on the eco programme
Water consumption	9.0 litres per cycle
Programme duration (eco)	4:25 h:min
Airborne noise emissions	42 dB(A) re 1 pW; airborne acoustical noise emission class B
Connected power	1800 W
Current	13 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single–phase
Power supply cable length	140 cm
Plug	(G) UK e Singapore
EAN code	8017709307844

Programmes, Functions and Usage

The appliance offers a range of programmes designed for different levels and types of soiling. The Soak programme provides a rinse to prevent dirt from drying. The Crystals programme is dedicated to delicate dishes such as glasses and china. The ECO programme uses a low amount of water and energy to provide an environmentally friendly cleaning option. The Auto 45°–65° programme regulates the length of a cycle depending on the need for a pre–wash and the number of rinses required.

The Express 27' rapid programme takes just 27 minutes to wash a load. Full express – 60 minutes is also available. The Hygiene 99.9% high–temperature washing programme, with a 75° rinse, is described as guaranteeing the removal of 99.9% of germs and bacteria, making it suitable for sanitising. A Soak programme and Self clean programme are included, as well as a Quiet (–2 dB) programme and Intense programme. A Normal programme is mentioned in the glossary as suitable for normal degrees of dirt for everyday use.

The Dry Assist+ option, in addition to saving energy, is described as ensuring drying of the dishes by opening the door automatically at the end of the wash. Anti–drip polymer nozzles on some models improve the process of drying. The 1/2 load FlexiZone option allows washing of a reduced load with no restrictions on where items are placed, saving energy, water and time according to the glossary description.

The FlexiDuo third basket consists of two separate and moveable modules so that cutlery, small cups, ladles or bulky utensils can be arranged as desired. The Extra Glide guide system on the upper basket facilitates extraction and introduction of the basket, even at full load, and aids insertion of crockery in the rear part. Models with new Flexi Fit hinges can be installed in kitchens with a plinth of just 5 cm, with a sliding panel movement to avoid interference with the plinth.

Activelight is an LED light which projects a red spot onto the floor beneath the dishwasher when the appliance is in use. The delay timer can postpone the start of the programme by up to 24 hours. Aquatest measures the clarity of the water during an auto programme and automatically ensures minimum consumption of water and energy. Total Acquastop monitors water levels, detects leaks in the hose and switches off the water supply immediately when necessary.

The glossary notes that work aimed at continuous improvement has allowed the creation of a second generation Inverter motor 2.0 characterised by efficiency and durability, with high performance, lower energy consumption and reduced noise level; the DI323BL document does not explicitly state the motor type used in this specific model.

Compatible Accessories

KIT82CN – Not stated in source.
KIT82CX – Not stated in source.
KIT82SPRAN – Not stated in source.
KIT82SPRMW – Not stated in source.
KIT82SPRX – Not stated in source.
KITFLEXI – Kit for 60 cm dishwashers with FlexiFit hinges for door panel weight >11 kg (max 15 kg 82 cm and 13.5 kg 86 cm).
KITGH – Kit glass holder, to be fitted on the first basket but only if there are foldable racks.
KITPL60B – Toekick kit in white colour with adjustable height and deepness, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60N – Toekick kit in black colour with adjustable height and deepness, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60X – Toekick kit in stainless steel with adjustable height and deepness, for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPLV2 – Kit extension for dishwasher and washing machine, length 2 m.

Frequently Asked Questions

What is the capacity of the SMEG DI323BL dishwasher?

The rated capacity is 13 place settings. The appliance has three baskets, including a FlexiDuo third basket and a separate cutlery basket, to help organise dishes and utensils.

How quiet is this dishwasher during operation?

The airborne acoustical noise emissions are 42 dB(A) re 1 pW, with a noise emission class of B. There is also a Quiet (–2 dB) programme option referenced in the programme list.

What energy efficiency rating does it have?

The energy efficiency class for the washing cycle is B, with an Energy Efficiency Index (EEI) of 37.9. Energy consumption is 63 kWh per 100 cycles based on the eco programme, and water consumption is 9.0 litres per cycle.

Does it have protection against leaks and flooding?

Yes. The dishwasher is equipped with a Total Acquastop flood protection system. This electronic device monitors water levels, detects leaks in the hose and switches off the water supply immediately when necessary, in addition to partial Acquastop protection present in all SMEG dishwashers mentioned in the glossary.

Can the start of a wash cycle be delayed?

Yes. There is a delay timer option allowing postponement of the start of the programme by up to 24 hours, with automatic soak. The 3 digit display shows the delayed start and programme time indicator.

What is the Hygiene 99.9% programme?

Hygiene 99.9% is a high–temperature washing programme. The 75° rinse is described as guaranteeing the removal of 99.9% of germs and bacteria, making it suitable for sanitising.
