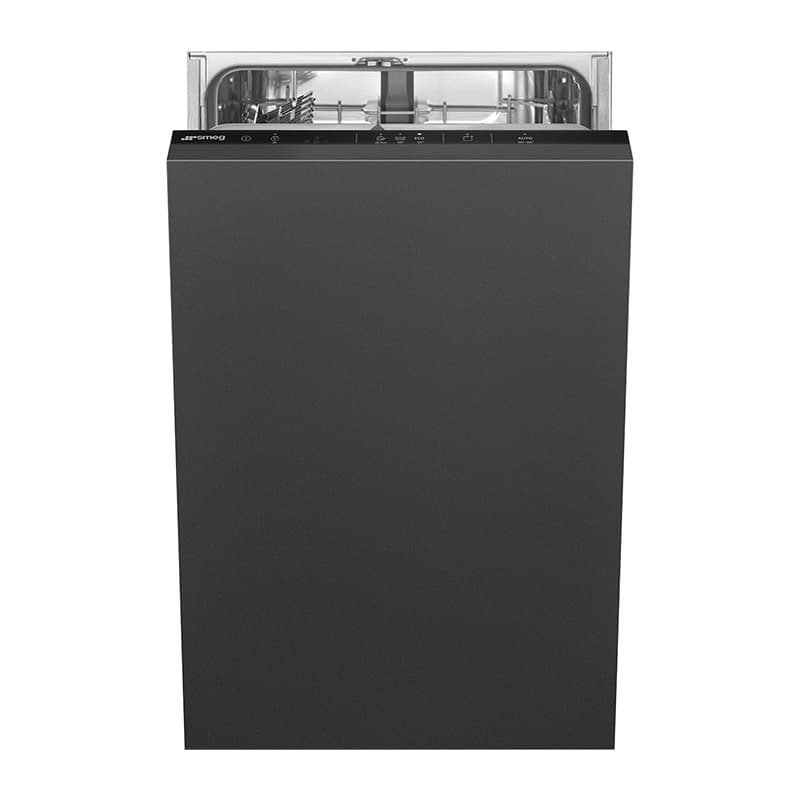

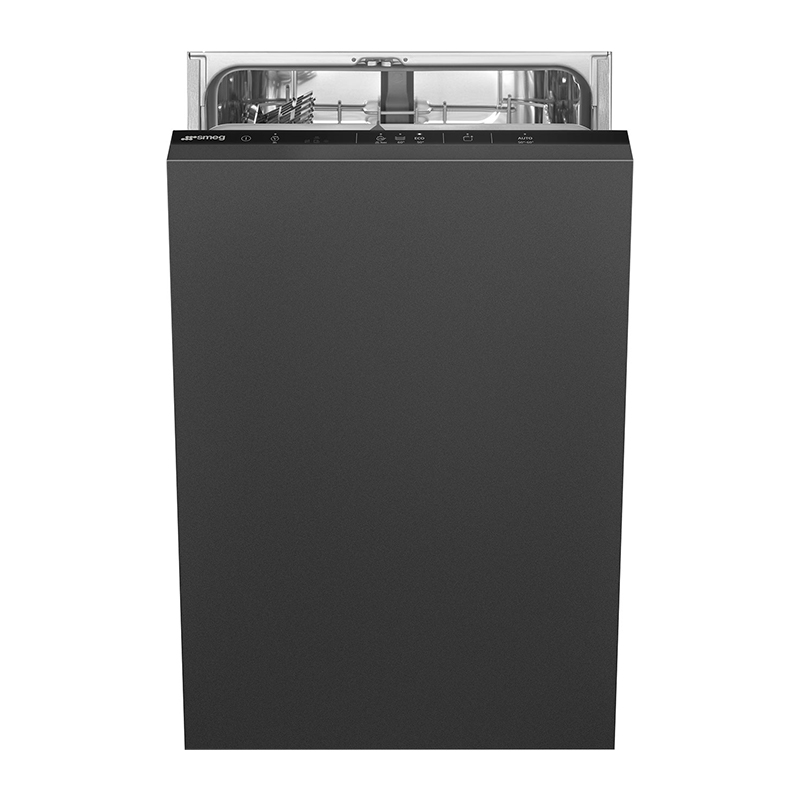

The SMEG DI4522 is a 45 cm fully-integrated built-in dishwasher with a commercial height of 82 cm and a rated capacity of 9 place settings. It offers 6 programmes, including ECO and Auto 50°–60° cycles, with washing temperatures of 50 and 60°C. Featuring natural condenser drying with Dry Assist+ and Total Acquastop flood protection, it combines stainless steel tank construction, electronic controls and adjustable baskets for flexible loading.

Key Features

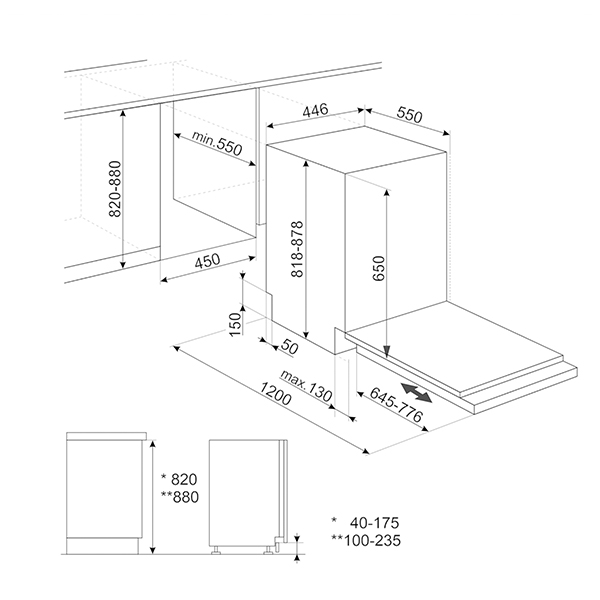

Fully-integrated 45 cm design – 446 mm width, 550 mm depth and 818 mm product height for built-in installation.
9 place setting capacity – rated capacity (ps) 9 for compact yet efficient dishwashing.
6 wash programmes – including Soak, Express 50°, ECO, Self clean, Mix 60° and Auto 50°–60°.
Flexible basket system – two grey baskets with plastic handles, height-adjustable upper basket and cutlery basket.
Dry Assist+ natural condenser drying – automatic door opening at the end of the cycle to support drying.
Total Acquastop flood protection – system that monitors water levels, detects leaks and can switch off the water supply.
Energy efficiency class E – energy consumption of 70 kWh per 100 cycles based on the ECO programme.
Low water use – 9.9 litres water consumption per cycle (ECO programme).
Quiet operation – airborne acoustical noise emissions of 46 dB(A) re 1 pW, noise emission class C.
Electronic controls with display – shows delayed start and programme time indicator with symbol graphics.
Delay timer option – 3 hours delay timer, with an Extreme option to improve washing results.
Stainless steel tank and filter – durable inner tank material and stainless steel filter.
Self balancing FLEXIFIT hinges – sliding hinge design suitable for kitchens with a plinth from 40 to 175 mm.
Adjustable installation height – adjustable feet (6 cm) from 820 to 880 mm, with back feet adjustable from the front.
Single water supply – cold or hot water up to 60°C, with energy saving when using hot water up to 35°C.

Technical Specifications

Product family	Dishwashers
Model	DI4522
Installation	Fully-integrated built-in
Width	45 cm / 446 mm
Product height	Commercial height 82 cm / 818 mm
Depth	550 mm
Depth with open door	1200 mm
Kitchen panel	Not supplied
Number of baskets	2
Rated capacity	9 place settings (ps)
Number of programmes	6
Washing temperatures	50, 60°C
Programmes	Soak; Express 50°; ECO; Self clean; Mix 60°; Auto 50°–60°
Options	Delay timer option 3 hours; Extreme option
Controls	Electronic
Display	Delayed start; Programme time indicator; Programme graphics symbols
On/off indicator	Yes
Salt indicator	Light
Rinse aid indicator	Light
End of cycle indicator	Acoustic signal
Washing system	Standard
Water softener	With electronic setting
Flood protection system	Total Acquastop
Water supply	Single; cold/hot water max. 60°C – energysave with hot water up to 35°
Max water hardness	90°fH; 50°dH
Drying system	Natural condenser drying, with Dry Assist+ automatic door opening system
Steam protection	In plastic
Tank material	Stainless steel
Filter	Stainless steel
Concealed heating element	Yes
Hinges	Self balancing, Sliding, FLEXIFIT
Min.–max. frontal panel weight	2 – 7.5 kg
Min.–max. plinth height	40 – 175 mm
Adjustable feet	6 cm, from 820 to 880 mm
Back feet adjustment	Back feet adjustable from front
Additional gaskets	Yes
Basket colour	Grey
Basket components colour	Grey
Handle type	In plastic on upper and lower basket
Upper basket	With central fixed racks
Upper basket height adjustment	On two levels (4 cm)
Largest loadable dish – upper basket	20.0 cm
Lower basket	With fixed racks; with anti-drip inserts
Largest loadable dish – lower basket	31.5 cm
Inner components colour	Grey
Cutlery basket	Yes
Energy efficiency class (washing cycle)	E
Energy consumption (per 100 cycles, ECO)	70 kWh
Water consumption (per cycle)	9.9 litres
Programme duration (ECO)	4:00 h:min
Airborne acoustical noise emissions	46 dB(A) re 1 pW
Noise emission class	C
Energy efficiency index (EEI)	55.9
Connected power	1950 W
Current	10 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single-phase
Power supply cable length	140 cm
Plug type	(F;E) Schuko
EAN code	8017709302931

Programmes, Functions and Safety

The dishwasher offers a range of programmes for different loads, including a wash cycle for normally soiled mixed loads such as dishes and pans, even with dried-on residues. When the Auto 50°–60° programme is selected, the appliance recognises the type of dirt and automatically adjusts the washing parameters as appropriate. The ECO programme uses a low amount of water and energy to provide an environmentally friendly cleaning option, while the soak programme provides a rinse to help prevent dirt from drying.

The delay timer can postpone the start of the programme by up to 24 hours, and the Extreme option improves the washing results of the selected programme by increasing the wash temperature and duration. Some models are equipped with special polymer anti-drip nozzles that improve the drying process. Noise levels are reduced by insulation and special devices designed to keep noise to a minimum.

Total Acquastop provides enhanced flood protection. In addition to partial Acquastop protection, an electronic device fitted to the water intake hose monitors water levels, detects leaks in the hose and switches off the water supply immediately when necessary. Models with FLEXIFIT hinges can be installed in kitchens with a plinth of just 5 cm, thanks to a sliding movement of the panel that avoids interference with the plinth.

Frequently Asked Questions

What is the capacity of the SMEG DI4522 dishwasher?

The SMEG DI4522 has a rated capacity of 9 place settings (ps), making it a compact 45 cm fully-integrated dishwasher suitable for smaller loads.

Which wash programmes are available?

This model provides 6 programmes: Soak, Express 50°, ECO, Self clean, Mix 60° and Auto 50°–60°. The Auto programme recognises the type of dirt and automatically adjusts the washing parameters, while the ECO programme is designed to use a low amount of water and energy.

How efficient is the ECO programme?

Based on the ECO programme, the energy consumption is 70 kWh per 100 cycles and water consumption is 9.9 litres per cycle. The ECO programme is described as an economic wash that uses a low amount of water and energy to provide an environmentally friendly cleaning option.

What drying system does the DI4522 use?

The dishwasher uses a natural condenser drying system with Dry Assist+. At the end of the cycle, an automatic door opening system helps to improve the drying process. Some models also feature special anti-drip nozzles that further enhance drying performance.

How does the Total Acquastop safety system work?

Total Acquastop includes an electronic device on the water intake hose that monitors water levels in the machine, detects leaks in the hose and switches off the water supply immediately when necessary. This is in addition to the partial Acquastop protection present in all Smeg dishwashers.

Is there a delay start function?

Yes. The DI4522 includes a delay timer option of 3 hours on the appliance, and the delay timer feature is described as being able to postpone the start of the programme by up to 24 hours, allowing flexible scheduling of wash cycles.

Compatible Accessories

KITPLV2 – Kit extension for dishwasher and washing machine: length 2 m.
