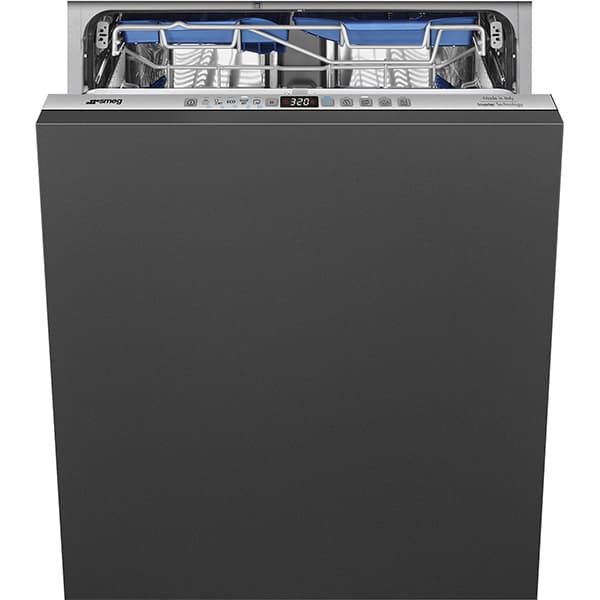

The DI322BQLH is a fully integrated 60 cm SMEG dishwasher with Maxi 86 cm commercial height, offering a rated capacity of 14 place settings. It features three grey baskets with FlexiDuo third basket, an Inverter 2.0 motor and a Planetarium washing system. With 10+1 programmes, B energy efficiency class, Quiet 42 dB noise emissions and Dry Assist+ natural condenser drying, it is designed for flexible loading, effective cleaning and discreet built‑in installation.

Key Features

Fully integrated 60 cm design – Built‑in dishwasher, width 60 cm, commercial Maxi height 86 cm.
Generous 14 place setting capacity – Rated capacity (ps) 14 for larger household loads.
Energy Efficiency Class B – Eco programme energy consumption 64 kWh per 100 cycles; Energy Efficiency Index 37,8.
Quiet 42 dB operation – Airborne acoustical noise emissions 42 dB(A) re 1 pW, noise emission class B, with Quiet (–2 dB) programme.
10+1 wash programmes – Includes Soak, Express 27', Crystal, Full express – 60 minutes, ECO, Mix, Quiet (–2 dB), Intense, Self clean, Hygiene 99,9% and Delicate.
Multiple temperature options – Washing temperatures of 38, 45, 50, 55, 65, 70 and 75 °C.
FlexiDuo 3rd cutlery basket – Two separate moveable modules to arrange cutlery, small cups, ladles or bulky utensils.
Flexible loading with three baskets – Upper basket with EasyGlide system and height adjustment on three levels; lower basket with four foldable racks and anti‑drip inserts.
Dry Assist+ option – Natural condenser drying with automatic door opening to enhance drying and save energy.
Inverter 2.0 motor – Second generation motor designed for greater efficiency, durability, high performance and reduced energy consumption and noise level.
Planetarium washing system – Advanced washing system with third spray arm for thorough coverage.
FlexiZone 1/2 load option – 1/2 load FlexiZone option with varied distribution, allowing reduced loads without restrictions on item placement.
Delay timer up to 24 hours – Delay Timer function postpones the start of the programme by up to 24 hours, with automatic soak.
Hygiene 99,9% high‑temperature programme – 75 °C rinse designed to guarantee removal of 99,9% of germs and bacteria and ideal for sanitising.
Total Acquastop flood protection – Electronic device monitoring water levels, detecting leaks and switching off the water supply when necessary.
Activelight end‑of‑cycle indication – LED projects a red spot on the floor beneath the dishwasher when the appliance is in use.
Electronic controls with 3‑digit display – Shows delayed start and programme time indicator with symbols and label graphics.
Adjustable installation height – Adjustable feet 7 cm from 860 to 930 mm; FlexiFit self‑balancing sliding hinges suitable for plinths from 50 to 215 mm.
Efficient water use – Water consumption 9,0 litres per ECO cycle; compatible with cold or hot water supply up to 60 °C.
Durable stainless steel interior – Stainless steel tank and filter with concealed heating element.

Technical Specifications

Product family	Dishwashers
Model	DI322BQLH
Installation	Fully‑integrated built‑in (kitchen panel not supplied)
Width	60 cm (598 mm)
Commercial height	Maxi, 86 cm
Product height	858 mm
Depth	550 mm
Depth with door open	1186 mm
Rated capacity	14 place settings (ps)
Number of baskets	3, FlexiDuo
Basket colour	Grey, with grey components and blue inner components
Largest dish in upper basket	19,0 cm
Largest dish in lower basket	35,0 cm
Motor type	Inverter 2.0
Washing system	Planetarium with third spray arm (single)
Drying system	Natural condenser drying with Dry Assist+ automatic door opening
Number of programmes	10+1
Washing temperatures	38, 45, 50, 55, 65, 70, 75 °C
Energy efficiency class (washing cycle)	B
Energy consumption (eco, per 100 cycles)	64 kWh
Water consumption (per cycle)	9,0 litres
Programme duration (eco)	4:25 h:min
Airborne noise emissions	42 dB(A) re 1 pW (class B)
Energy Efficiency Index (EEI)	37,8
Water softener	With electronic setting; max water hardness 100°fH; 58°dH
Flood protection	Total Acquastop
Water supply	Single; cold/hot water max. 60 °C; energysave with hot water up to 35%
Tank material	Stainless steel
Filter	Stainless steel
Heating element	Concealed heating element
Hinges	Self balancing, Sliding, FlexiFit
Min & max frontal panel weight	2 – 10 kg
Min & max plinth height	50 – 215 mm
Back feet adjustment	Back feet adjustable from front; back cover included
Top cover	In plastic
Steam protection	In plastic
Controls	Electronic controls with 3 digit display
Display functions	Delayed start and programme time indicator; programme graphics with symbols and label
Indicators	On/off indicator; salt light indicator; rinse aid indicator; end of cycle indicator: ActiveLight
Handle type	In plastic on upper and lower basket
Upper basket features	EasyGlide system; 1 foldable rack; glass holder; height adjustment on three levels
Lower basket features	4 foldable racks; anti‑drip inserts
Dry Assist+ option	Yes
Delay timer option	Up to 24 hours, with automatic soak
1/2 load FlexiZone option	Yes (varied distribution)
Special programmes option	Yes
Energy efficiency related note	Noise level reduced by excellent insulation and special devices (according to glossary).
EAN code	8017709307851
Connected power	1800 W
Current	13 A
Voltage	220–240 V
Frequency	50 Hz
Type of connection	Single‑phase
Power supply cable length	140 cm
Plug type	(G) UK e Singapore

Programmes, Options and Usage Details

Wash programmes

The dishwasher offers 10+1 programmes with a range of temperatures from 38 °C to 75 °C:

Soak – Provides a rinse to prevent dirt from drying.
Express 27' – Rapid 27 minutes quick programme to wash a load.
Crystal – Dedicated to delicate dishes such as glasses and china.
Full express – 60 minutes – Quick full‑load wash in 60 minutes.
ECO – Economic wash using low water and energy for environmentally friendly cleaning.
Mix – For mixed loads (further details not stated in source).
Quiet (–2 dB) – Noise level reduced by excellent insulation and special devices.
Intense – For heavily soiled items (further details not stated in source).
Self clean – For cleaning the dishwasher itself (further details not stated in source).
Hygiene 99,9% – High‑temperature programme with 75 °C rinse to guarantee removal of 99,9% of germs and bacteria, ideal for sanitising.
Delicate – Designed for delicate dishes which are not heavily soiled.

Options and functions

Dry Assist+ option to improve drying and save energy by automatically opening the door at the end of the cycle.
Delay Timer option allowing postponement of the start of the programme by up to 24 hours with automatic soak.
1/2 load FlexiZone option with varied distribution, allowing washing of reduced loads with no restrictions on where items are placed.
Special programmes option for additional cycles (specific programmes not stated in source).

Loading and baskets

The three‑basket configuration provides flexible loading:

Upper basket with EasyGlide system for smooth movement, 1 foldable rack, glass holder and height adjustment on three levels.
Lower basket with 4 foldable racks and anti‑drip inserts to improve drying.
FlexiDuo third cutlery basket consisting of two separate moveable modules to arrange cutlery, small cups, ladles or bulky utensils.
Plastic handles on upper and lower baskets for easier handling.

Installation and compatibility

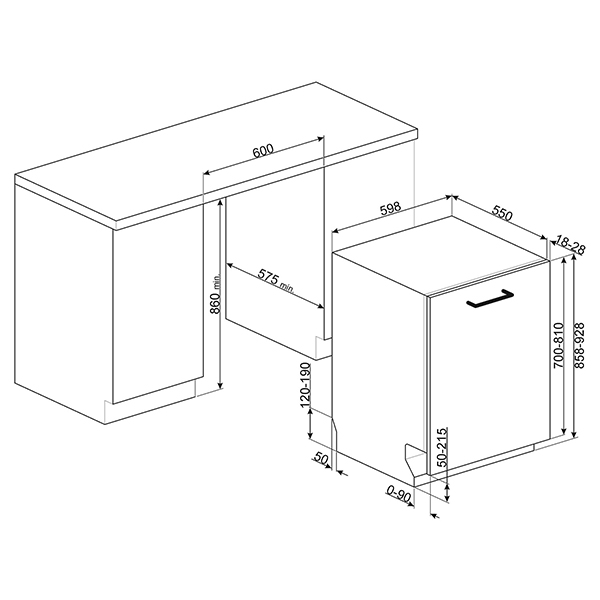

FlexiFit self‑balancing sliding hinges allow installation in kitchens with plinths from 50 to 215 mm. The panel has a sliding movement from bottom to top, avoiding interference with the plinth. Adjustable feet (7 cm) allow height adjustment from 860 to 930 mm, with back feet adjustable from the front.

Compatible accessories include:

KIT86CX-1 – Door kit, stainless steel, Canali handle, for fully integrated dishwashers h.86 cm with FlexiFit and fixed fulcrum hinges.
KIT86PORTAN-1, KIT86PORTWH-1, KIT86PORTX-1 – Door kits (details beyond names not stated in source).
KIT86SPRAN, KIT86SPRMW, KIT86SPRX – Accessories for compatible models (details not stated in source).
KITFLEXI – Kit for 60 cm dishwashers with FlexiFit hinges for door panel weight >11 kg (max 15 kg at 82 cm and 13,5 kg at 86 cm).
KITGH – Kit glass holder to be fitted on the first basket when foldable racks are present.
KITPL60B – Toekick kit in white with adjustable height and depth for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60N – Toekick kit in black with adjustable height and depth for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPL60X – Toekick kit in stainless steel with adjustable height and depth for fully integrated and underbench models with variable fulcrum or FlexiFit hinges.
KITPLV2 – Kit extension for dishwasher and washing machine, length 2 m.

Safety and protection

Total Acquastop provides electronic monitoring of water levels, detects leaks in the hose and switches off the water supply when necessary.
Steam protection and top cover in plastic help protect surrounding cabinetry.
Activelight projects a red spot onto the floor beneath the dishwasher while it is in use to indicate operating status.

Frequently Asked Questions

What is the capacity of the SMEG DI322BQLH dishwasher?

The DI322BQLH has a rated capacity of 14 place settings. It uses three baskets, including a FlexiDuo third basket, to help make use of the full 60 cm width and Maxi 86 cm height.

How quiet is this dishwasher during operation?

The airborne acoustical noise emissions are 42 dB(A) re 1 pW, with noise emission class B. It also includes a Quiet (–2 dB) programme, and noise is reduced by excellent insulation and special devices according to the symbols glossary.

Which energy and water consumption figures apply to the ECO programme?

The Energy Efficiency Class for the washing cycle is B. Energy consumption based on the ECO programme is 64 kWh per 100 cycles, with water consumption of 9,0 litres per cycle and a programme duration of 4:25 h:min.

What drying system does the DI322BQLH use?

It uses a natural condenser drying system combined with the Dry Assist+ option, which opens the door automatically at the end of the cycle to enhance drying and reduce energy use.

Can this dishwasher be connected to hot water?

Yes. The water supply can be single cold or hot water up to a maximum of 60 °C. An energysave benefit is noted when connected to hot water up to 35%.

What safety features are included to prevent leaks?

The dishwasher includes a Total Acquastop flood protection system. This electronic device fitted to the water intake hose monitors water levels, detects leaks in the hose and switches off the water supply immediately when necessary.
