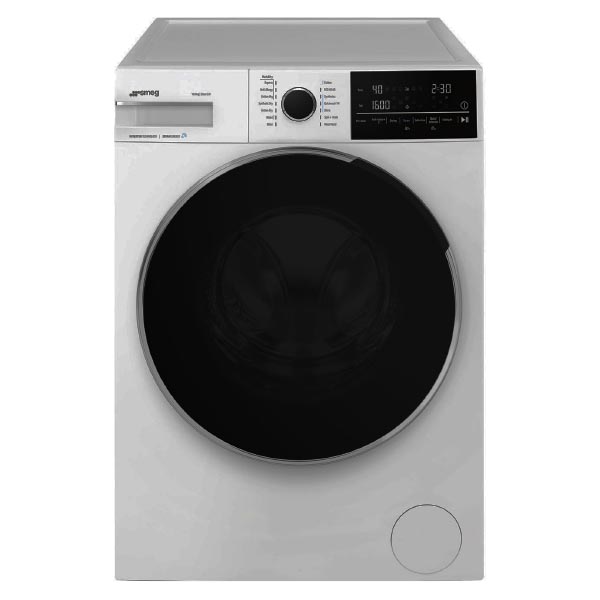

The SMEG WDN064SLDUK is a free-standing frontal load washer dryer with a commercial width of 60 cm and standard capacity depth. It offers a 10 kg rated washing capacity and 6 kg rated capacity for the complete wash and dry cycle. With 14 electronic programmes, a brushless inverter motor and Aquastop anti-flood system, it provides versatile washing and drying options, automatic variable load management and clear LCD display indications for convenient everyday use.

Key Features

Free-standing frontal load design with 60 cm commercial width and standard capacity depth.
Generous capacity with 10 kg rated washing cycle and 6 kg rated complete cycle.
14 electronic programmes including Eco 40–60, Cotton, Synthetics, Wool, Mix and Shirts.
Combined Wash&Dry cycles such as Wash&Dry Cotton 6 kg, Wash&Dry Anti allergy and Wash&Dry Express.
Fast cycles including Quick Wash 14 min and Quick 14 min special programme.
Brushless/Inverter motor for electronically controlled functioning.
LCD display with residual time indicator, delay start, programme status and progress indication.
Flexible spin control with selection of No spin, 600, 800, 1200, 1400 rpm or rinse hold on display/LED.
Temperature regulation with washing options at Cool, 30°C, 40°C, 60°C and 90°C.
Multiple options including Prewash, Extra rinse, Quick, Steam, Drying, Anti-wrinkle (easy ironing) and End in.
Automatic variable load system to diversify wash cycle and operation time according to quantity and type of laundry.
Automatic load balancing system to optimise drum distribution and reduce vibration.
Anti-flood protection with Aquastop system using an Acquastop tube.
Child lock (control block) to prevent accidental changes to the programme or cycle.
Polypropylene tank and stainless steel basket for durable washing performance.
65 l drum capacity with large 34 cm door diameter and 170° door opening.
Easy-to-access filter to support simple maintenance.
Energy efficiency classes of C for the washing cycle and D for the complete cycle.
Spin-drying efficiency class B with airbone acoustical noise class B at 76 dB(A) re 1 pW.
Single cold water supply connection.

Technical Specifications

EAN code	8017709328436
Product family	Washer dryer
Model	WDN064SLDUK
Commercial width	60 cm
Commercial depth	Standard capacity
Installation	Free-standing
Load type	Frontal
Controls	Electronic
Programmes graphics	Written in EN
Number of programmes	14
Main programmes	Eco 40–60, Cotton, Synthetics, Wool, Mix, Shirts, Quick Wash 14 min, Drain + Spin, Rinse, Cotton Dry, Wash&Dry cycles, Anti allergy
Special programmes	Wash&Dry Cotton 6 kg, Wash&Dry Anti allergy, Wash&Dry Express, Wool, Quick 14 min
Washing temperature options	Cool, 30°C, 40°C, 60°C, 90°C
Display	Residual time indicator, delay start, programme status indication, spin regulation, temperature regulation
Display type	LCD display (from symbols glossary)
Buttons / Options	Ending in, Extra rinse, Spin Speed, Temperature, Prewash, Anti-wrinkle (easy ironing), Quick, Steam, Drying
Programme progress indicator	On display (light)
End of cycle indicator	On display (light)
Type of motor	Brushless / Inverter
Electronic control functioning	Yes
Programme selection	Knob
Spin speed selection	On display/LED: No spin / 600 / 800 / 1200 / 1400 / Rinse hold
Temperature regulation display/LED	Yes
Tank material	Polypropilene (polypropylene)
Basket material	Stainless steel
Drum capacity	65 l
Door diameter	34 cm
Door opening angle	170°
Automatic variable load	Yes
Antifoam system	Yes
Load balancing system	Automatic
Easy to access filter	Yes
Child lock (functions block)	Control block
Anti-flood system	Yes
Aquastop system	Acquastop tube
Water supply	Single, cold
Supplier's name or trademark	SMEG
Rated capacity – washing cycle	10 kg
Rated capacity – complete cycle	6 kg
Water consumption (washing cycle)	52 litre
Water consumption (complete cycle)	63 litre
Spin-drying efficiency class	B
Energy efficiency class (washing cycle)	C
Energy efficiency class (complete cycle)	D
Weighted energy consumption (washing)	68 kWh
Weighted energy consumption (complete cycle)	306 kWh
Airbone acoustical noise class	B
Airbone acoustical noise level	76 dB(A) re 1 pW
Programme duration at rated capacity (washing cycle)	3:58 h:min
Programme duration at rated capacity (complete cycle)	9:30 h:min

Programmes, Options and Usage Details

This washer dryer offers a wide range of programmes, including Eco 40–60, Cotton, Cotton Dry, Synthetics, Wool, Mix, Shirts, Drain + Spin, Rinse, Quick Wash 14 min, Wash&Dry Cotton 6 kg, Wash&Dry Anti allergy and Wash&Dry Express. Special programmes specifically highlighted include Wash&Dry Cotton 6 kg, Wash&Dry Anti allergy, Wash&Dry Express, Wool and Quick 14 min.

Washing temperatures can be set to Cool, 30°C, 40°C, 60°C or 90°C. Spin speeds are selectable on the display or LED, including No spin, 600, 800, 1200, 1400 rpm and a rinse hold option. Temperature and spin regulation are clearly indicated on the display.

Available options via the buttons include Ending in, Extra rinse, Spin Speed, Temperature, Prewash, Anti-wrinkle (easy ironing), Quick, Steam and Drying. Programme progress and end of cycle are shown by lights on the display, and a delay start function lets you schedule cycles.

Glossary-based usage notes

Acquastop: float sensor system in the bottom of the appliance to help prevent accidental water leakage.
Easy Iron (Anti-wrinkle): option designed to leave laundry with fewer creases to make ironing easier.
Variable load: the machine automatically adapts wash cycle and operating time to the quantity and type of laundry, allowing water and energy savings compared to fixed load versions.
Automatic Load Balancing: controls rotation speed when imbalance is detected to redistribute laundry in the drum and reduce vibration.
Child lock: device to lock the programme or cycle so it cannot be accidentally changed.
34 cm loading hatch: large door diameter designed to make loading and unloading easier and faster.
Gentle drying: programme designed to get laundry ready for easy ironing. (Programme name 'Gentle drying' is mentioned in the glossary.)
Prewash: programme designed for heavily soiled garments.
Cotton: for soiled cotton fabrics; a separate option is mentioned “To drain the water in the machine.”
Mixed fabrics: for lightly soiled laundry in a mix of cottons and synthetics or for refreshing stored items.
Super fast 14 min: programme designed to wash small amounts of lightly soiled laundry quickly.
Extra rinse: adds an additional rinse when more thorough cleansing of special fabrics is needed.
Shirts programme: cycle to wash shirts in a short time with a delicate spin to support easy ironing.
Synthetics programme: uses a gentle action and shorter cycle for synthetic clothes; for curtains and tulle, it refers to using Synthetic 40°C with prewash and anti-creasing, with reduced detergent in the main wash compartment and no detergent in prewash.
Wool programme: uses slower drum rotations to care for wool or delicate fabrics.
Quick option: option mentioned that allows reduction of times of the selected programme.
Steam option: described as suitable for smoothing creases, refreshing fabrics, neutralising odours and releasing dirt, destroying allergens more quickly than washing in water alone.

Frequently Asked Questions

What are the washing and drying capacities of this washer dryer?

The rated capacity for the washing cycle is 10 kg. The rated capacity for the complete wash and dry cycle is 6 kg. There is also a specific Wash&Dry Cotton 6 kg programme noted among the special programmes.

Which main programmes are available?

Programmes listed include Eco 40–60, Cotton, Cotton Dry, Synthetics, Wool, Mix, Shirts, Quick Wash 14 min, Drain + Spin, Rinse, Wash&Dry Cotton 6 kg, Wash&Dry Anti allergy and Wash&Dry Express, as well as dedicated special programmes such as Wool and Quick 14 min.

What safety features does it have?

Safety-related features include an Anti-flood system with an Aquastop tube, an Acquastop float sensor system described in the glossary, a child lock (control block) to prevent accidental programme changes, an antifoam system and an automatic load balancing system that helps reduce vibration.

How loud is the machine during operation?

The airbone acoustical noise class is B, with a stated noise level of 76 dB(A) re 1 pW.

What are the energy efficiency ratings and consumption figures?

The energy efficiency class for the washing cycle is C and for the complete cycle is D. Weighted energy consumption is 68 kWh for washing and 306 kWh for the complete cycle. Water consumption is 52 litre for the washing cycle and 63 litre for the complete cycle.

What display and control features does it offer?

It uses an electronic control system with an LCD display that shows residual time, delay start, programme status, spin regulation and temperature regulation. Programme progress and end of cycle are indicated by lights on the display. Programmes are selected via a knob, with spin speed and temperature adjustable on the display or LEDs.
