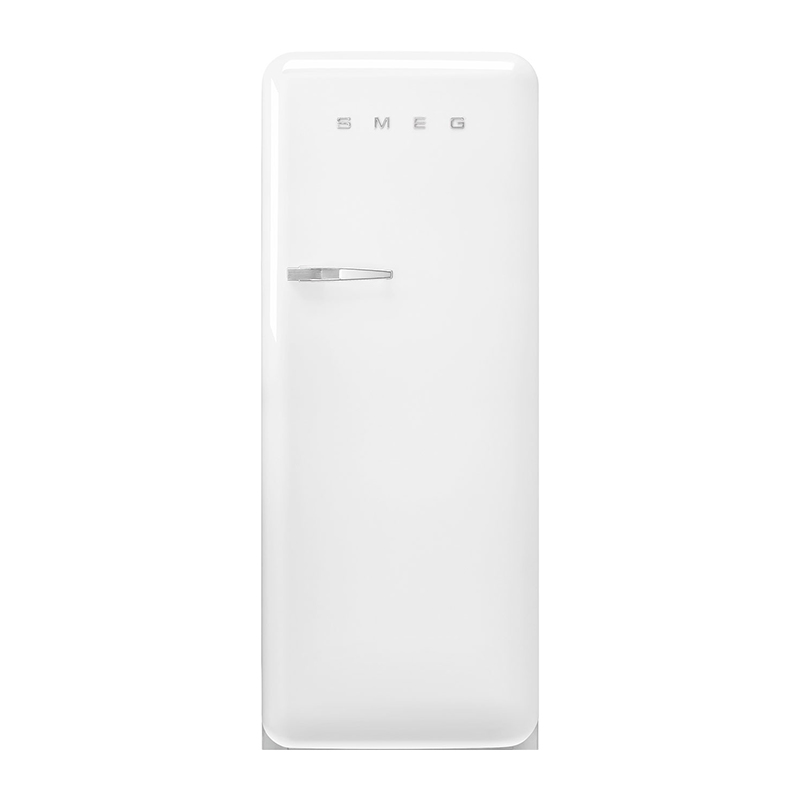

The SMEG FAB28RWH5UK is a white, freestanding one door refrigerator in the 50’s Style aesthetics, designed for homes needing a reference width up to 60 cm and height between 100–160 cm. It features a fan assisted refrigerator with a static internal freezer, automatic defrost for the fridge and LED interior lighting. With a total volume of 270 l, electronic temperature control and an energy efficiency class D rating, it delivers stylish cooling performance.

Key Features

Product family: Refrigerator, freestanding installation with one door design.
50’s Style aesthetics: White gloss finish with rounded design and chrome handle and logo.
Cooling type: Fan assisted refrigerator with static freezer for combined cooling and freezing.
Defrost system: Automatic defrost for the refrigerator and manual defrost for the freezer.
Total volume: 270 l capacity, including 244 l chill/unfrozen and 26 l frozen compartment volume.
Energy performance: Annual energy consumption 130 kWh/year with energy efficiency class D and EEI 79 %.
Quiet operation: Airborne acoustical noise emission class B and 35 dB(A) re 1 pW noise level.
Refrigerator storage: 2 adjustable glass shelves, low temperature compartment and fruit and vegetable compartment with 1 drawer.
Crisper design: Glass crisper/vegetable drawers cover on sliding rails with crisper cover included.
Door storage: 1 door shelf with transparent cover, 1 adjustable door shelf with wire support and 1 bottle shelf with wire support.
Lighting: Internal LED light in the fridge for efficient, long lasting illumination.
Air circulation: MultiFlow and fan in the refrigerator compartment for even temperature distribution.
Freezer features: Internal freezer compartment with 4 star freezing capacity of 2.6 kg/24 h and 9 h thaw time.
Safety and alerts: Acoustic and visual door open alarm.
Controls: Electronic temperature control and variable speed compressor.
Refrigerant and insulation: R600a refrigerant gas (32 g) and cyclopentane foam agent.
Climate suitability: Climatic class SN, N, ST, T.
Construction materials: Heat-moulded door material with steel sides in white.
Hinge configuration: Standard right hinge position.
Alternative colours: Related models in black, orange, yellow, pastel blue, pink, silver, cream, red and pastel green with right hinge position.
Electrical rating: Nominal power 90 W, current 1 A, 220–240 V, 50/60 Hz.
Plug and cable: (G) UK e Singapore plug with 180 cm power supply cable length.
Dimensions: 601 mm width, 728 mm depth without handle and 1530 mm product height with feet.
Door and handle dimensions: 732 mm product depth with handle, 926 mm width with maximum doors opening and 1148 mm depth with doors open at 90°.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	One Door
Reference width	Until 60 cm
Reference height	100 - 160 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Automatic for refrigerator, manual for freezer
Hinge type	Standard
Hinge position	Right
EAN code	8017709299354
Aesthetics	50's Style
Colour	White
Design	Rounded
Finishing	Gloss
Door material	Heat-moulded
Handle	External, fixed
Handle colour	Chrome
Logo colour	Chrome, applied logo
Side material	Steel
Side colour	White
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Colour of glass shelf profile	Chrome
Number of compartments	2
Compartment types	Low temperature compartment, Fruit and vegetable compartment
No. of adjustable shelves	2
Number of fruit and vegetables drawers	1
Type of adjustable shelves	Glass
Crisper/vegetable drawers cover	Glass on sliding rails, crisper cover: Yes
Low temperature compartment	Yes
Internal light in fridge	Yes, LED
Door shelves with transparent cover	1
Number of adjustable door shelves	1
Adjustable door shelves with wire support	Yes
Number of bottle shelves	1
Bottle shelves with wire support	Yes
MultiFlow	Yes
Fan	Yes
Internal freezer compartment	Yes
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
Number of compressors	1
Refrigerant gas type	R600a
Type of compressor	Variable Speed Compressor
Refrigerant quantity	32 g
Foam agent	Cyclopentane
Annual energy consumption	130 kWh/year
Energy efficiency class	D
Airborne acoustical noise emission class	B
Total volume	270 l
Volume of frozen compartment(s)	26 l
Volume of chill and unfrozen compartment(s)	244 l
Noise level	35 dB(A) re 1 pW
Thaw time	9 h
4 star – Freezing capacity	2,6 kg/24h
Climatic class	SN, N, ST, T
EEI	79 %
Nominal power	90 W
Current	1 A
Voltage	220-240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug	(G) UK e Singapore
Width	601 mm
Depth without handle	728 mm
Product height with feet	1530 mm
Product width with maximum doors opening	926 mm
Product depth with handle	732 mm
Product depth with doors open at 90°	1148 mm

Additional Details and Features

The refrigerator compartment includes two adjustable glass shelves, a low temperature compartment and a dedicated fruit and vegetable compartment with one drawer and glass cover on sliding rails. Door storage is arranged with one shelf featuring a transparent cover, one adjustable shelf with wire support and a bottle shelf with wire support, providing flexible organisation for daily items.

MultiFlow and fan assisted cooling ensure forced distribution of cold air in the refrigerator compartment, allowing even temperature distribution within the fridge. LED interior lighting offers a more energy efficient and long lasting way of illuminating the interior of the appliance.

The internal freezer compartment is rated 4 stars, providing better food preservation and a freezing capacity of 2.6 kg per 24 hours. The automatic defrost system operates at regular intervals for the refrigerator, eliminating the need to defrost this section, while the freezer is manually defrosted.

An acoustic and visual door open alarm supports safe and efficient operation by signalling when the door is left open. Electronic temperature control and the variable speed compressor contribute to precise regulation of internal conditions. The climatic class SN, N, ST, T indicates suitability for a wide range of ambient temperatures. Specific installation, cleaning and detailed usage instructions are Not stated in source.

Frequently Asked Questions

What is the total capacity of the SMEG FAB28RWH5UK?

The total volume is 270 l, comprising 244 l for the chill and unfrozen compartments and 26 l for the frozen compartment.

Does this model have an automatic defrost function?

Yes, the refrigerator section has automatic defrost, while the freezer compartment uses manual defrost.

What type of lighting is used inside the fridge?

The fridge uses LED interior lighting, which is described as a more energy efficient and long lasting way of illuminating the interior of the appliance.

How noisy is the FAB28RWH5UK during operation?

The noise level is 35 dB(A) re 1 pW, and it is rated airborne acoustical noise emission class B.

What are the dimensions of this refrigerator?

The width is 601 mm and the depth without handle is 728 mm. The product height with feet is 1530 mm. With maximum doors opening, the width is 926 mm, depth with handle is 732 mm and depth with doors open at 90° is 1148 mm.

Is this model suitable for UK electrical supplies?

Yes, it operates at 220–240 V, 50/60 Hz, with a nominal power of 90 W and current of 1 A, and it is supplied with a (G) UK e Singapore plug and a 180 cm power cable.
