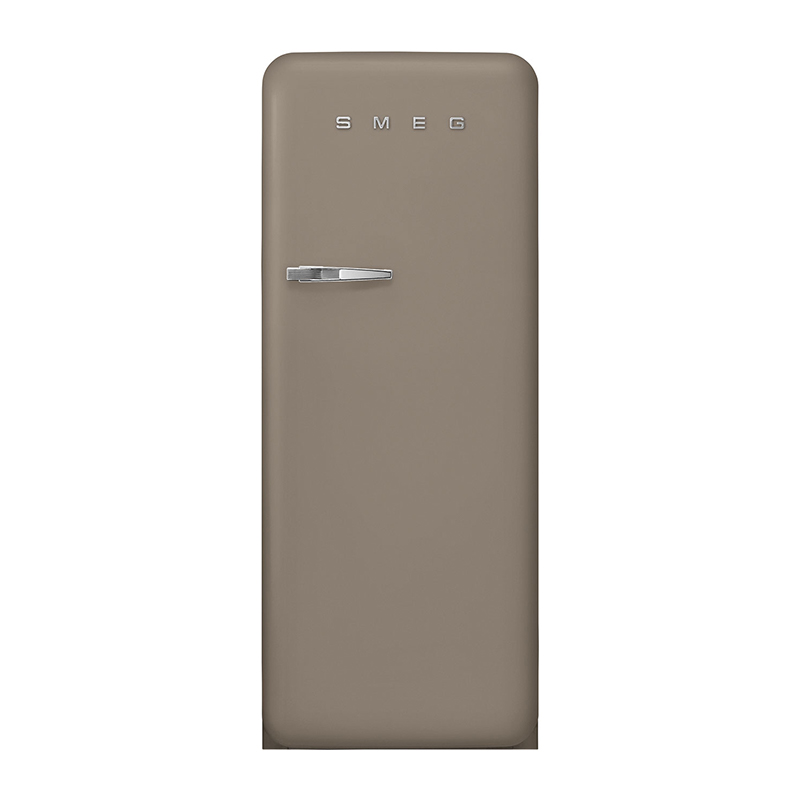

The SMEG FAB28RDTP5 is a free-standing, one-door refrigerator in a 50’s Style taupe matte finish with rounded design and chrome details. It offers fan assisted refrigerator cooling with a static freezer, 270 l total volume and LED interior lighting. Inside, it provides glass adjustable shelves, a low temperature compartment and a fruit and vegetable drawer. Electronic temperature control, acoustic and visual door open alarm, and a 4–star internal freezer compartment complete the specification.

Key Features

Free-standing one-door refrigerator with fan assisted refrigerator and static freezer cooling.
50’s Style aesthetics in taupe colour with rounded design, matte heat-moulded finish and chrome handle and details.
Total volume 270 l including 244 l chill and unfrozen compartments and 26 l frozen compartment volume.
Internal 4–star freezer compartment with 2.6 kg/24 h freezing capacity and 9 h thaw time.
Automatic defrost for refrigerator and manual defrost for freezer.
LED internal fridge lighting for energy efficient, long lasting illumination of the interior.
Electronic temperature control with acoustic and visual door open alarm.
Flexible storage with 2 adjustable glass shelves, low temperature compartment and fruit and vegetable compartment with drawer.
Organised inner door featuring 1 door shelf with transparent cover, 1 adjustable door shelf and 1 bottle shelf, all with wire supports where indicated.
MultiFlow and fan functions for forced distribution of cold air and even temperature distribution within the fridge.
Energy efficiency class D with annual energy consumption of 130 kWh/year and EEI of 79 %.
Quiet operation with 35 dB(A) re 1 pW airborne acoustical noise and B noise emission class.
Variable speed compressor using R600a refrigerant gas and cyclopentane foam agent.
Climatic class SN, N, ST, T for operation in a wide range of ambient conditions.
Right-hand standard hinge with external fixed handle in chrome.
Steel sides with decorated/special side colour and applied logo in chrome.
Schuko plug and 180 cm power supply cable for connection to 220–240 V, 50/60 Hz mains.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	One Door
Reference width	Until 60 cm
Reference height	100 – 160 cm
Cooling type	Fan assisted refrigerator, static freezer
Defrost	Automatic for refrigerator, manual for freezer
Hinge type	Standard
Hinge position	Right
EAN code	8017709299224
Aesthetic style	50’s Style
Colour	Taupe
Design	Rounded
Finishing	Matte
Material	Heat-moulded
Handle	External, fixed, chrome colour
Logo colour	Chrome, applied logo
Side material	Steel
Side colour	Decorated / Special
Door shelves profile colour	Chrome
Drawers profile colour	Chrome
Glass shelf profile colour	Chrome
Number of compartments	2 (low temperature compartment, fruit and vegetable compartment)
Number of adjustable shelves	2 glass adjustable shelves
Fruit and vegetable drawers	1 drawer
Crisper/vegetable drawers cover	Glass cover on sliding rails, crisper cover: Yes
Low temperature compartment	Yes
Internal light (fridge)	Yes, LED type internal light
Door shelves with transparent cover	1
Adjustable door shelves	1, with wire support
Number of bottle shelves	1, with wire support
MultiFlow	Yes
Fan	Yes
Internal freezer compartment	Yes (4–star)
Door open alarm	Acoustic and visual
Type of temperature control	Electronic
Number of compressors	1
Refrigerant gas type	R600a, quantity 32 g
Type of compressor	Variable Speed Compressor
Foam agent	Cyclopentane
Annual energy consumption	130 kWh/year
Energy efficiency class	D (EEI 79 %)
Airborne acoustical noise emission class	B
Noise level	35 dB(A) re 1 pW
Total volume	270 l
Frozen compartment volume	26 l (sum of frozen compartment volumes)
Chill and unfrozen compartment volume	244 l (sum of chill and unfrozen volumes)
Thaw time	9 h
4–star freezing capacity	2.6 kg/24 h
Climatic class	SN, N, ST, T
Nominal power	90 W
Current	1 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko
Width	601 mm
Depth without handle	728 mm
Product height with feet	1530 mm
Product width with maximum doors opening	926 mm
Product depth with handle	768 mm
Product depth with doors open at 90°	1197 mm

Additional Details

The refrigerator compartment benefits from ventilated MultiFlow cooling with a fan, providing forced distribution of cold air and even temperature distribution. The automatic defrost system operates at regular intervals in the refrigerator section, removing the need for manual defrosting there, while the freezer compartment is manually defrosted.

The internal 4–star freezer compartment offers enhanced food preservation, with a specified freezing capacity and thaw time. LED interior lighting delivers an energy efficient and long lasting way of illuminating the interior of the appliance.

The atmospheric and environmental claims from inverter technology and Air plus referenced in the symbols glossary relate to other Smeg products and are not specified as features of this model.

Frequently Asked Questions

What is the total capacity of the SMEG FAB28RDTP5?

The total volume is 270 l, with 244 l for the chill and unfrozen compartments and 26 l for the frozen compartment.

Does this fridge have an internal freezer compartment?

Yes. It includes an internal 4–star freezer compartment with a freezing capacity of 2.6 kg/24 h and a thaw time of 9 h.

How is the refrigerator cooled and defrosted?

The refrigerator section is fan assisted and uses ventilated cold air distribution through MultiFlow and a fan. It has automatic defrost, while the freezer compartment is defrosted manually.

What is the energy rating and noise level?

The appliance has an energy efficiency class D with annual energy consumption of 130 kWh/year and an EEI of 79 %. The noise level is 35 dB(A) re 1 pW and the airborne acoustical noise emission class is B.

What are the main dimensions of this model?

The width is 601 mm, depth without handle is 728 mm and product height with feet is 1530 mm. With the handle, depth is 768 mm, width with maximum doors opening is 926 mm and depth with doors open at 90° is 1197 mm.

What type of power connection does it require?

It operates at 220–240 V, 50/60 Hz with nominal power of 90 W and current of 1 A. It is supplied with a 180 cm power cable and (F;E) Schuko plug.
