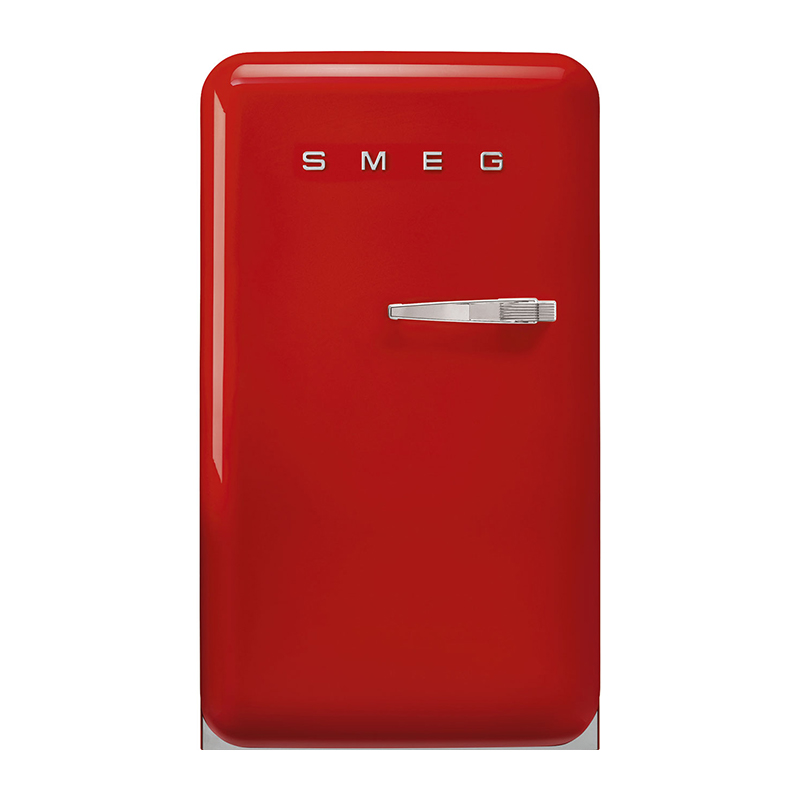

The SMEG FAB10LRD6 is a free standing, one door refrigerator in a red 50’s Style design with a gloss heat-moulded finish and rounded lines. It offers a total volume of 122 l, including a 4–star internal freezer compartment. With automatic defrost for the fridge, LED interior lighting and D energy efficiency class, it combines retro aesthetics with practical storage for chilled and frozen food.

Key Features

Free standing one door refrigerator with internal freezer compartment and left–hand hinge position.
Distinctive 50’s Style aesthetics in red with rounded design, gloss finish and chrome details.
Total volume 122 l with 105 l chill and unfrozen space and 17 l frozen compartment volume.
Automatic defrost for refrigerator reduces the need for manual defrosting in the fridge section.
4–star freezing compartment for better food preservation and freezing capacity of 2,6 kg/24h.
LED internal lighting for energy efficient, long lasting illumination of the fridge interior.
D energy efficiency class with annual energy consumption of 115 kWh/year and EEI of 79 %.
Quiet operation with airborne acoustical noise level of 35 dB(A) re 1 pW and noise emission class B.
Practical internal layout including 1 adjustable glass shelf, fruit and vegetable compartment with glass cover, and 1 fruit and vegetable drawer.
Door storage flexibility with 2 adjustable door shelves and 1 bottle shelf.
Electro–mechanical temperature control with standard compressor and R600a refrigerant gas.
Compact dimensions with width 545 mm, depth without handle 659 mm and product height with feet 970 mm.
Robust construction with heat–moulded material door, steel sides and external fixed handle in chrome.
Climatic classes N, ST, T for suitable operation in a range of ambient temperature conditions (exact temperature range: Not stated in source).
Schuko plug and 180 cm power cable for straightforward electrical connection on 220–240 V, 50 Hz supply.

Technical Specifications

Product family	Refrigerator
Installation	Free Standing
Category	One Door
Reference width	Until 60 cm
Reference height	Until 100 cm
Cooling type	Static
Defrost	Automatic for refrigerator, manual for freezer
Hinge type / position	Standard hinge – Left position
EAN code	8017709342470
Aesthetics	50’s Style
Colour	Red
Design	Rounded
Finishing	Gloss
Material	Heat–moulded
Handle	External, fixed, chrome colour
Side material / colour	Steel sides, red colour
Logo	Applied, chrome colour
Door shelves profile colour	Silver
Colour of glass shelf profile	Silver
Number of compartments	1
Compartment types	Fruit and vegetable compartment
No. of adjustable shelves	1
Type of adjustable shelves	Glass
Number of fruit and vegetables drawers	1
Crisper cover	Yes – Glass
Number of adjustable door shelves	2
Number of bottle shelves	1
Internal freezer compartment	Yes – 4 stars freezing compartment
Type of temperature control	Electro–mechanical
No. of compressors	1
Type of compressor	Standard
Refrigerant gas type / quantity	R600a, 25 g
Foam agent	Cyclopentane
Annual energy consumption	115 kWh/year
Energy efficiency class	D
EEI	79 %
Airborne acoustical noise emission class	B
Noise level	35 dB(A) re 1 pW
Total volume	122 l
Volume of frozen compartment(s)	17 l (sum of the volumes of the frozen compartment(s))
Volume of chill and unfrozen compartments	105 l (sum of the volumes of the chill compartment(s) and the unfrozen compartment(s))
Thaw time	6 h
4 star – Freezing capacity	2,6 kg/24h
Climatic class	N, ST, T
Nominal power	50 W
Current	0,42 A
Voltage	220–240 V
Frequency	50 Hz
Power supply cable length	180 cm
Plug	(F;E) Schuko
Width	545 mm
Depth without handle	659 mm
Product depth with handle	701 mm
Product depth with doors open at 90°	1085 mm
Product height with feet	970 mm
Product width with maximum doors opening	842 mm

Additional Details and Functions

The refrigerator includes an internal light in the fridge compartment, using LED technology for efficient and long lasting illumination. The automatic defrost system in the refrigerator works by defrosting at regular intervals, eliminating the need to defrost the fridge compartment manually.

The internal freezer compartment is rated with 4 stars, which supports better food preservation. Temperature is managed via electro–mechanical control and a standard compressor operating with R600a refrigerant and cyclopentane foam agent.

Frequently Asked Questions

What is the total capacity of the SMEG FAB10LRD6?

The total volume is 122 l, with 105 l for the chill and unfrozen compartments and 17 l for the frozen compartment(s).

Does the fridge need manual defrosting?

The refrigerator compartment has automatic defrost, which works at regular intervals and removes the need to defrost the fridge. The freezer compartment defrost is manual.

What is the energy efficiency rating and annual consumption?

The appliance has a D energy efficiency class with an annual energy consumption of 115 kWh/year and an EEI of 79 %.

How noisy is the SMEG FAB10LRD6 in operation?

The airborne acoustical noise level is 35 dB(A) re 1 pW, with a noise emission class of B.

What type of lighting is used inside the fridge?

The fridge compartment uses LED interior lighting, described as a more energy efficient and long lasting way of illuminating the interior of the appliance.

What are the key dimensions for installation?

The width is 545 mm, depth without handle 659 mm, product depth with handle 701 mm, product depth with doors open at 90° 1085 mm, and product height with feet 970 mm.
