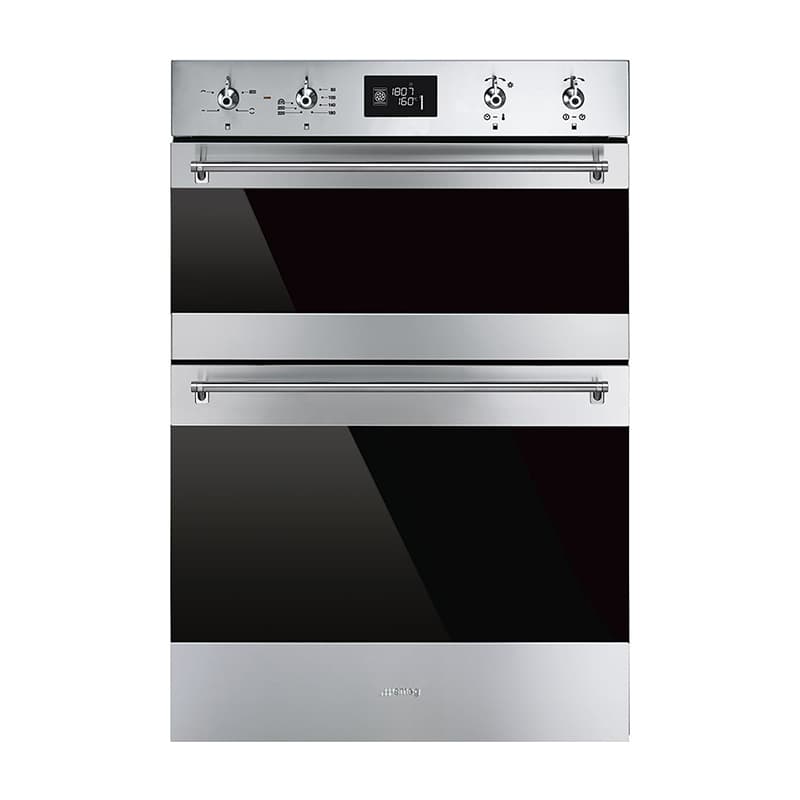

The SMEG DOSF6390X is a 60 cm built–in electric double oven with a thermo–ventilated main cavity and static auxiliary oven. Finished in fingerprint proof brushed stainless steel with Eclipse glass and Classic controls, it offers 9 cooking functions plus 20 automatic programmes, Vapor Clean and A energy efficiency for both cavities. With generous 68 l and 35 l capacities, Fresh Touch triple–glazed doors and easy clean enamel, it is designed for flexible everyday cooking.

Key Features

Main oven capacity 68 l with thermo–ventilated electric cooking and 5 shelf positions.
Auxiliary oven capacity 35 l with static electric cooking and 2 shelf positions.
9 traditional cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO, Large grill, Fan grill (large), Base and Fan assisted base.
20 automatic programmes for convenient preset cooking.
Vapor Clean function to help loosen deposits in the cavity using steam.
Additional functions include Defrost by time, Defrost by weight, Proving and Sabbath.
Energy efficiency class A for both cavities with fan–forced consumption from 0,80 kWh per cycle.
Fingerprint proof stainless steel finish to help stainless steel stay looking as good as new.
Fresh Touch triple–glazed doors designed to keep outer door temperatures below 50°C.
Easy clean enamel cavities with removable doors and full glass inner doors.
Classic stainless steel aesthetics with flat design, Eclipse glass and steel effect control knobs.
LCD display and control knobs with delay start, automatic end cooking and minute minder.
Child safety lock and showroom demo option on the main controls.
Halogen interior lighting in both cavities for good visibility.
Tangential double cooling system with speed reduction for safe surface temperatures.
Supplied accessories include 2 chrome shelves, 2 extra deep enamelled trays (40 mm) and 2 grill meshes.
Compatible telescopic guides available as GTP partially extractable and GTT totally extractable sets.

Technical Specifications

Category	60cm Double Ovens (Built–in Column)
Product family	Oven
Power supply	Electric
Heat source main cavity	Electric – Cooking method Thermo–ventilated
Heat source second cavity	Electric – Cooking method Static
EAN code	8017709214203
Aesthetics	Classic
Colour / material	Stainless steel, brushed, Fingerproof finish
Glass type	Eclipse
Serigraphy	Black, symbols
Door design	With 2 horizontal strips, triple glazed, Fresh Touch
Handle	Classic handle, stainless steel colour
Controls	Classic control knobs, steel effect, LCD display, 4 controls
No. of cooking functions (main)	9 traditional functions + 20 automatic programmes
Main traditional functions	Static; Fan assisted; Circulaire; Turbo (circulaire + bottom + upper + fan); ECO; Large grill; Fan grill (large); Base; Fan assisted base
Other functions (main)	Defrost by time; Defrost by weight; Proving; Sabbath; Vapor Clean
No. of functions (auxiliary)	4 traditional functions: Static; ECO; Small grill; Large grill
Time–setting options (main)	Delay start and automatic end cooking; Minute minder; Controls Lock / Child Safety; Showroom demo option
Time–setting options (auxiliary)	No delay options
Main cavity net volume	70 litres (capacity 68 l stated for cavity)

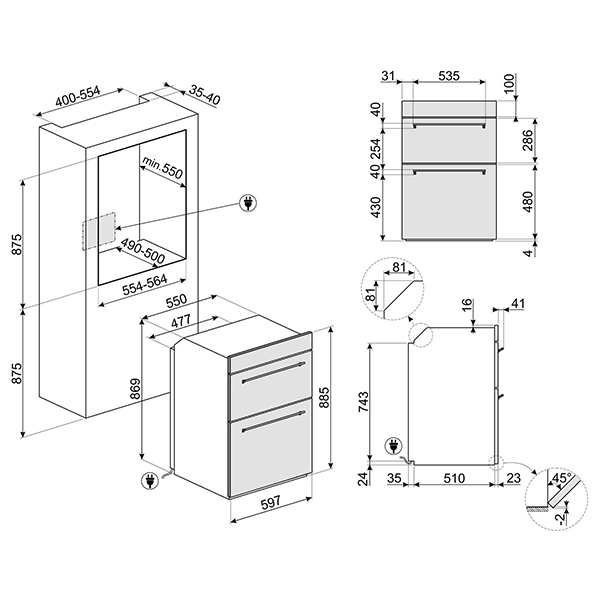

Main cavity usable dimensions (HxWxD)	316x444x425 mm
Main temperature range	30°C – 280°C
Main lights	1 x 40 W halogen, light on when door is opened
Main heating elements	Lower 1200 W; Upper 1000 W; Grill 1700 W; Large grill 2700 W; Circular element 2000 W
Main cavity material	Easy clean enamel
Temperature control main	Electro–mechanical
Auxiliary cavity net volume	35 litres (gross volume 41 l)
Auxiliary cavity type	EN 50304 small second oven
Auxiliary usable dimensions (HxWxD)	169x440x443 mm
Auxiliary temperature range	50°C – 270°C
Auxiliary lights	1 x 40 W halogen
Auxiliary heating elements	Bottom 1200 W; Upper 1000 W; Grill 1700 W; Large grill 2700 W; Tilting grill
Door glasses (both cavities)	3 total glasses, 1 thermoreflecting glass in auxiliary cavity
Door features	Removable door; Full glass inner door; Removable inner door
Shelves and trays included	2 chrome shelves with back and side stop; 2 extra deep enamelled trays (40 mm); 2 grill meshes; Catalytic panels Yes (location not further specified)
Number of cavities	2
Energy efficiency class (main)	A – Energy efficiency index 95,2 %
Energy use main – conventional	0,99 kWh per cycle; 3,56 MJ
Energy use main – fan forced	0,80 kWh per cycle; 2,88 MJ
Energy efficiency class (second)	A – Energy efficiency index 105,7 %
Energy use second – conventional	0,74 kWh per cycle; 2,66 MJ (natural convection)
Cooling system	Tangential cooling; Double cooling duct; Speed Reduction Cooling System Yes
Voltage	220–240 V; Alternative connection 380–415 V
Frequency	50/60 Hz
Current	26 A
Nominal power	5900 W
Power supply cable length	150 cm
Compatible accessories	GTP partially extractable telescopic guides (1 level), extraction 300 mm, Stainless steel AISI 430 polished; GTT totally extractable telescopic guides (1 level), extraction 433 mm, Stainless steel AISI 430 polished

Programmes, Functions and Usage Details

The main thermo–ventilated cavity offers traditional and fan–assisted functions such as Circulaire, Turbo and Fan assisted base. According to the function descriptions, Circulaire combines the fan with a circular element to provide hot air cooking, reducing preheat time, limiting flavour transfer when cooking different foods together and helping to shorten cook times. Fan assisted base mixes the fan with the lower element and is recommended to finish foods already cooked on the surface but not internally.

Static upper and lower elements provide a traditional cooking method suited to single items placed centrally, with the top of the oven typically hottest. The lower heating element alone is described as ideal for foods needing extra base temperature without browning, such as pastry dishes and pizza, and for slow cooking stews and casseroles. ECO combines grill, fan and lower element for small quantities of food.

Grill functions include full and fan–assisted grill. The grill element is indicated as suitable for medium and small portions of meat, sausages and bacon. Fan with grill reduces the intensity of the grill heat while giving even browning and distribution; the top two levels are recommended for grilling, with the lower part of the cavity usable to keep items warm at the same time.

The Proving function uses air at 40°C to provide an environment for proving yeast–based dough mixes. The Sabbath function allows cooking while respecting the provisions of the Jewish day of rest (no further detail provided). Defrost by time and Defrost by weight automatically determine thawing time based on selected parameters.

Vapor Clean is described as a simple cleaning function using steam to loosen deposits in the oven cavity. Easy clean enamel interiors and removable, full glass inner doors support straightforward cleaning. The tilting grill in the auxiliary cavity can be unhooked to move the heating element and clean the roof of the appliance in one step.

The Fresh Touch door concept combines tangential cooling and internal heat–reflecting glasses to keep the outer surface of the door below 50°C and to protect adjacent furniture from overheating. An air cooling system is referenced as a means to ensure safe surface temperatures. Child lock is available on some models and is described as a device to lock programmes or cycles so they cannot be accidentally changed; on this model, a Controls Lock / Child Safety feature is specified.

Frequently Asked Questions

What are the capacities of the two ovens?

The main thermo–ventilated oven has a capacity of 68 litres with a net volume of 70 litres stated for the cavity. The auxiliary static oven has a net volume of 35 litres and a gross volume of 41 litres.

What cleaning features does this oven have?

The model includes a Vapor Clean function, which uses steam to loosen deposits in the cavity, and easy clean enamel interiors. Both doors have full glass inner panels and removable inner doors. A tilting grill allows easier cleaning of the roof of the auxiliary oven. Catalytic panels are listed as included accessories.

How energy efficient is the DOSF6390X?

Both cavities are rated energy efficiency class A. The main oven has an energy efficiency index of 95,2 % with 0,99 kWh per cycle in conventional mode and 0,80 kWh per cycle in fan–forced convection. The second cavity has an energy efficiency index of 105,7 % and consumes 0,74 kWh per cycle in conventional mode.

What safety features are provided?

Safety features include a Fresh Touch triple–glazed door designed to keep the outer surface below 50°C, a tangential cooling system with double duct and speed reduction, a Controls Lock / Child Safety function, and heating suspension when the main door is opened. An air cooling system is described in the glossary as ensuring safe surface temperatures.

Which accessories are supplied and which are optional?

Supplied accessories are 2 chrome shelves with back and side stop, 2 extra deep enamelled trays (40 mm), 2 grill meshes and catalytic panels. Optional compatible accessories include GTP partially extractable telescopic guides (1 level, 300 mm extraction, stainless steel AISI 430 polished) and GTT totally extractable telescopic guides (1 level, 433 mm extraction, stainless steel AISI 430 polished).

What temperature ranges do the ovens cover?

The main oven operates from a minimum of 30°C to a maximum of 280°C. The auxiliary oven operates from 50°C to 270°C. A proving function is specified as using air at 40°C for dough proving.
