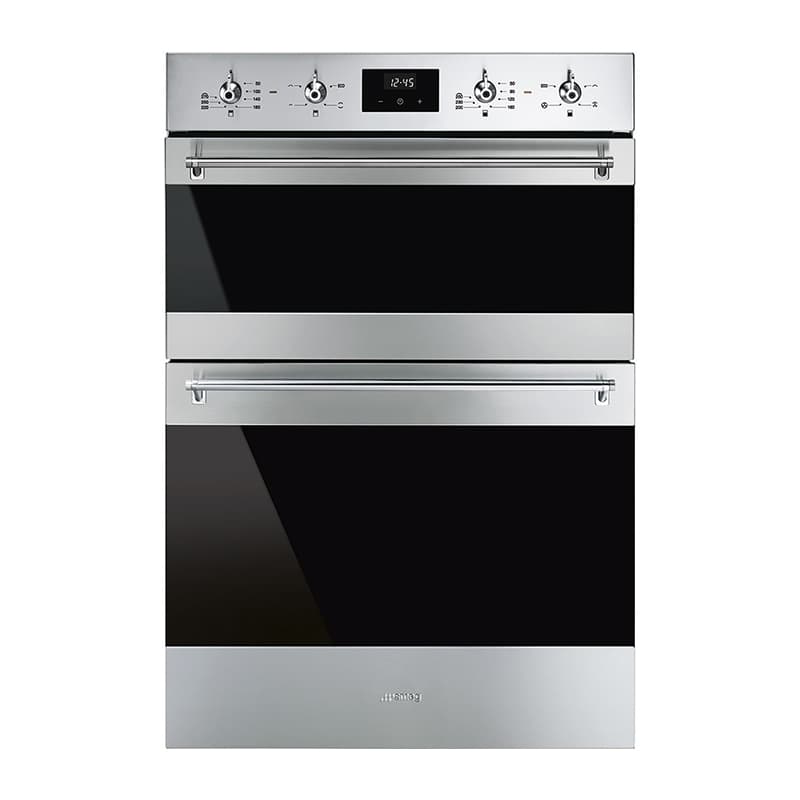

The SMEG DOSF6300X is a 60cm built-in column double electric oven with a thermo-ventilated main cavity and static secondary oven. Finished in fingerprint proof stainless steel with Classic aesthetics, it offers multiple traditional cooking functions, rapid pre-heating and easy clean enamel interiors. With an A energy efficiency class main oven and B rated second cavity, triple glazed doors and practical accessories, it is designed for versatile everyday cooking and grilling.

Key Features

60cm built-in double oven with two electric cavities and thermo-ventilated main oven plus static secondary oven.
Classic stainless steel design with brushed fingerprint proof finish, flat design and Classic handle and control knobs.
Thermo-ventilated main oven cooking using Circulaire for hot air cooking without flavour transfer and shorter cook times.
Four main oven functions including Circulaire ECO, large grill and fan grill (large).
Four secondary oven functions including static, ECO small grill and large grill.
Rapid pre-heating reduces cooking cavity heating time by up to 50% so cooking can start faster.
Generous capacities with 70 litres net main cavity and 35 litres net second cavity.
Energy efficient performance with A class main oven and B class second cavity.
DigiScreen LED display with knobs & touch buttons, timer, minute minder and delay start/end cooking.
Easy clean enamel cavities with enamel interior designed to reduce cooking grease adherence.
Triple glazed doors with temperate door design and full glass inner door for a flat, easy-to-clean surface.
Removable doors and inner glass in both cavities for easier cleaning access.
Tilting grill in second oven that can be unhooked to clean the roof of the appliance more easily.
Flexible shelving with 5 shelf positions in the main oven and 2 in the second oven.
Halogen lighting in both cavities with user-replaceable 40 W lamps.
Tangential cooling system with double cooling duct and speed reduction function.
Included accessories of 2 chrome shelves, 2 extra deep enamelled trays (40mm) and 2 grill meshes.
Compatible telescopic guides available as GTP partially extractable or GTT totally extractable guides (1 level each).
Standard opening doors with 3 glasses in each door and thermoreflecting glass in the second cavity.
Electro-mechanical temperature control with main oven temperatures from 50 °C to 250 °C and secondary oven up to 270 °C.

Technical Specifications

Category	60cm Double Ovens (Built-in Column)
Product family	Oven
Number of cavities	2
Power supply	Electric
Heat source – main cavity	Electric, thermo-ventilated
Heat source – second cavity	Electric, static
Aesthetics	Classic
Colour / material	Stainless steel, brushed, fingerprint proof
Finishing	Fingerproof
Glass type	Eclipse
Serigraphy	Black, symbols
Door design	With 2 horizontal strips, temperate door, standard opening
Handle	Classic, stainless steel
Logo	Embossed
Controls	Classic control knobs, steel effect; knobs & touch buttons
Number of controls	4
Display	DigiScreen, LED technology
Main oven capacity	68 l (capacity), 70 litres (net volume)
Main oven usable space (HxWxD)	360x444x425 mm
Main oven temperature range	50 °C to 250 °C
Main oven shelf positions	5 levels
Main oven lighting	1 x 40 W halogen, user-replaceable
Main oven grill element power	1800 W
Circular heating element power	2700 W
Second cavity net volume	35 litres
Second cavity gross volume	41 l
Second cavity usable space (HxWxD)	169x440x443 mm
Second cavity temperature range	50 °C to 270 °C
Second cavity shelf positions	2 levels
Second cavity lighting	1 x 40 W halogen
Second cavity bottom element power	1200 W
Second cavity upper element power	1000 W
Second cavity grill element power	1700 W (large grill 2700 W)
Door glasses	3 glasses per door; second cavity with 1 thermoreflecting glass
Cavity material	Easy clean enamel
Cooling system	Tangential, double cooling duct, speed reduction cooling system
Heating suspended when door is opened	Yes (main cavity)
Temperature control	Electro-mechanical
Energy efficiency class (main)	A
Energy consumption – forced air convection	2.88 MJ / 0.80 kWh per cycle (fan-forced convection)
Energy efficiency index (main cavity)	95.2 %
Energy efficiency class (second cavity)	B
Energy efficiency index (second cavity)	120 %
Energy consumption per cycle – conventional second cavity	0.84 kWh / 3.02 MJ
Cavity type second oven	EN 50304 medium
Voltage	220-240 V; alternative 380-415 V
Current	21 A
Frequency	50/60 Hz
Nominal power	4800 W
Power supply cable length	150 cm

Functions and Usage

Main Oven Cooking Functions

Circulaire: Fan and circular element provide hot air cooking with no flavour transfer when cooking different foods at the same time, less energy use and shorter cook times. No preheat is needed if cook time is more than 20 minutes.
Circulaire ECO: Combination of grill, fan and lower element, particularly suitable for cooking small quantities of food.
Large grill: Grill element ideal for cooking meat portions and also suitable for sausages and bacon.
Fan grill (large): Fan with grill element reduces fierce heat to give even browning and heat distribution without drying out food; top two levels are recommended, with lower part of oven usable to keep items warm.

Second Cavity Cooking Functions

Static: Upper and lower element only, best for single items in the centre of the oven; hottest at the top, ideal for roasts, fruit cakes and bread.
ECO small grill: Combination of grill, fan and lower element for small quantities of food.
Large grill: Suitable for rapid cooking and browning of larger items.
Half grill (described in glossary): Heat generated only at the centre of the element, ideal for smaller quantities on the top shelf or larger items on lower shelves.

Controls and Timing

The DigiScreen LED display with knobs and touch buttons provides time display, programmed cooking and a minute minder timer. Options include delay start and automatic end of cooking in the main oven, a minute minder, a timer and a rapid pre-heating function. The auxiliary oven options include time-setting with no delay options.

Cleaning and Maintenance

Easy clean enamel interiors have a special antacid lining designed to help keep the cavities clean by reducing the amount of cooking grease adhering to them.
All glass inner doors provide a single flat surface that is simple to keep clean.
Removable inner door glass can be taken out with a few quick movements for cleaning.
Tilting grill in the second oven can be unhooked to move the heating element and clean the roof of the appliance in one step.

Cooling and Safety

Air cooling system helps ensure safe surface temperatures.
Heating suspended when door is opened in the main cavity for added safety during use.
Triple glazed doors help manage heat and improve efficiency.

Frequently Asked Questions

What are the capacities of the two ovens?

The main cavity has a capacity of 68 l and a net volume of 70 litres. The second cavity has a net volume of 35 litres and a gross volume of 41 l.

What energy ratings do the ovens have?

The main oven has an energy efficiency class A with an energy efficiency index of 95.2 %. The second cavity has an energy efficiency class B with an energy efficiency index of 120 %.

Which cooking functions are available?

The main oven offers 4 functions: Circulaire ECO, large grill and fan grill (large), plus thermo-ventilated cooking. The secondary oven has 4 functions: static, ECO small grill, large grill and half grill as described in the function glossary.

How does rapid pre-heating work?

Rapid pre-heating reduces cooking cavity heating time by up to 50 %, allowing the oven to reach the selected temperature in just a few minutes so cooking can start faster.

What accessories are supplied with the oven?

The oven is supplied with 2 chrome shelves with back and side stop, 2 extra deep enamelled trays (40mm), and 2 grill meshes. Compatible telescopic guides (GTP partially extractable and GTT totally extractable, 1 level each) are also available.

Is the oven easy to clean?

Both cavities feature easy clean enamel interiors with an antacid lining to reduce grease adherence. The all glass inner doors and removable inner glass, plus the tilting grill in the second cavity, are designed to simplify cleaning.
