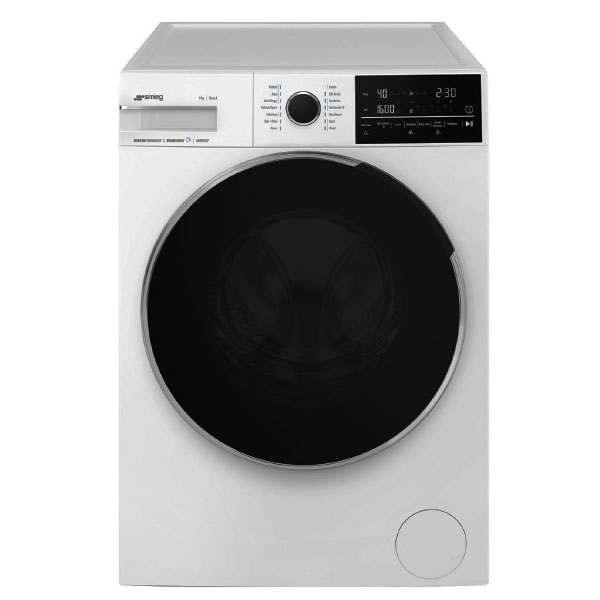

The SMEG WNP96SLAAUK1 is a free–standing, front–loading 60 cm washing machine with a large 9 kg capacity, designed to handle heavy loads with advanced programmes for impeccable results every wash. It offers up to 14 programmes, steam energy technology and an inverter brushless motor for efficient, high–performance washing. A large 34 cm door with wide 160° opening and LCD display with soft touch controls provide convenient loading and easy programme management.

Key Features

9 kg large capacity drum – Large capacity to handle heavy loads with advanced programmes for impeccable results every wash.
Energy Efficiency Class A – Rated A for energy efficiency with energy consumption of 49 kWh per 100 cycles.
Up to 14 wash programmes – Includes Anti–allergy, Cotton Eco 40–60, Wool/Hand wash, Mix, Outdoor, Quick Wash 14 min, Shirts, Synthetics, Self Clean and more to meet everyday needs.
Steam Energy Technology – Uses steam at the beginning or end of the cycle, depending on the programme, to remove stains, creases, smells and allergens.
Brushless inverter motor – Offers greater energy efficiency, lower consumption, longer life and reduced wear and noise while ensuring high washing efficiency.
LCD display with soft touch control – Provides residual time indicator, delay start, programme status, spin and temperature regulation for an improved user experience.
Giant 34 cm door with 160° opening – Wide opening for easier and faster loading and unloading, enhancing convenience and the premium look of the appliance.
Automatic variable load system – Automatically adapts the wash cycle and duration to the quantity and type of laundry to save water and energy, up to 30% compared to fixed load versions.
Automatic load balancing – Controls drum rotation speed to evenly redistribute laundry, reducing vibration.
Child lock (control block) – Locks the programme/cycle so it cannot be accidentally changed.
Anti–flood system – Integrated protection against flooding.
Flexible temperature settings – Cool, 20°C, 30°C, 40°C, 60°C and 90°C temperature options to tailor each wash.
Customisable options – End Time, Anticrease+, Autodose, Extra Rinse, Spin Speed, Temperature, Anti–wrinkle (easy ironing), Quick and Steam options.
High spin performance – Spin–drying efficiency class A with selectable speeds including No spin, 600, 800, 1200 and 1600 rpm, plus rinse hold.
Low water usage – Water consumption of 43 litres.
Stainless steel basket and polypropylene tank – Durable construction with 65 l drum capacity.
Liquid detergent accessory included – Supplied as standard for convenient use of liquid detergents.
Easy–access filter – Convenient filter position for fast and simple maintenance.
Airborne acoustical noise class C – Noise emission of 78 dB(A) re 1 pW during spin.

Technical Specifications

Product family	Washing Machine
Model	WNP96SLAAUK1
Supplier's name or trademark	SMEG
EAN code	8017709347215
Installation	Free–standing
Load type	Frontal
Commercial width	60 cm
Commercial depth	Large capacity
Rated capacity	9 kg
Drum capacity	65 l
Door diameter	34 cm
Door opening angle	160°
Energy Efficiency Class	A
Energy consumption (per 100 cycles)	49 kWh
Water consumption	43 litres
Spin–drying efficiency class	A
Airborne acoustical noise class	C
Airborne acoustical noise	78 dB(A) re 1 pW
Programme duration at rated capacity	3:48 h:min
Controls	Electronic
Programme selection	Programme selection knob
Display type	LCD display with lights (residual time, delay start, programme status, spin and temperature regulation)
Electronic control functioning	Yes
Spin speed selection	On display/LED – No spin / 600 / 800 / 1200 / 1600 / Rinse hold
Temperature regulation	Display/LED for temperature regulation
Tank material	Polypropylene tank
Basket material	Stainless steel
Liquid detergent accessory	Yes, as standard
Automatic variable load	Yes
Antifoam system	Yes
Load balancing system	Automatic
Easy to access filter	Yes
Child lock (functions block)	Control block
Anti–flood system	Yes
Type of motor	Brushless/Inverter
Nominal power	2200 W
Current	10 A
Voltage	230 V
Frequency	50 Hz
Power supply cable length	140 cm
Plug type	Schuko (F;E)
Compatible accessory	KITPLV2 – Kit extension for dishwasher and washing machine: length mt. 2

Programmes and Functions

Programmes

Number of programmes: 14 – Programmes graphics: written in IT.

Standard and specialised programmes include:

Anti–allergy
Auto Program
Shirts
Cotton
Cotton Eco 40–60
Wool/Hand wash
Mix / Mixed fabrics
Outdoor
Quick Wash 14 min / Super fast 14 min
Refresh
Rinse
Drain + Spin
Self Clean
Synthetics

Special programmes

Automatic
Outdoor
Refresh
Anti–allergy
Quick 14 min

Temperature settings

Washing temperature options: Cool, 20°C, 30°C, 40°C, 60°C, 90°C.

Temperature Adjustment allows selection of the most suitable temperature to protect fabrics, remove dirt and achieve optimal results with every wash.

Programme options and buttons

Buttons / options:

End Time
Anticrease+ / Anti–wrinkle (easy ironing)
Autodose
Extra Rinse
Spin Speed
Temperature
Quick (option to reduce times of the selected programme)
Steam option

Programme progress indicator (light) and end of cycle indicator (light) are shown on the display.

Display functions

The LCD display provides residual time indicator, delay start, programme status indication, spin regulation and temperature regulation. LCD display helps to optimise performance and simplify use of the appliance.

Key programme descriptions

Anti–allergy / Antiallergic: programme with particular attention to the total removal of residual detergent.
Cotton: for soiled fabrics in cotton.
Cotton Eco 40–60: for normally soiled, durable cotton and linen laundry, providing high energy and water savings; programme time may shorten automatically with smaller loads.
Mixed fabrics / Mix: designed for lightly soiled laundry in a mix of cottons and synthetics or to refresh stored items.
Super fast 14 min / Quick 14 min: designed to wash small amounts of laundry fast, ideal for lightly soiled garments.
Refresh: refreshes garments kept for a long time indoors and eliminates unpleasant odours without washing.
Shirts: washes shirts in a short time with delicate spin for easy ironing.
Synthetics: for synthetic clothes such as shirts, blouses and synthetic/cotton blends, with gentle action and shorter cycle than Cottons.
Wool/Hand wash: ideal for delicate wool and silk garments, using room–temperature water and slow drum rotations for maximum care.
Self Clean: to be run with an empty drum; thoroughly cleans the inside of the washing machine by removing fabric and detergent residues and bacteria from low–temperature washes.
Drain + Spin: used to drain the water in the machine.

Additional functional details

Variable load: system automatically diversifies wash cycle and operating time based on quantity and type of laundry, allowing significant water and energy savings (up to 30% compared to fixed load versions).
Automatic Load Balancing: provides ideal distribution of laundry in the drum and controls rotation speed to reduce vibration when imbalance is detected.
Child lock: locks programme/cycle so it cannot be accidentally changed.
End Time function: allows setting the desired finishing time of the wash cycle to align laundry readiness with your schedule.
Extra Rinse: adds an extra rinse cycle to remove residual detergent, particularly suitable for those with allergies or skin problems.
Easy Iron / Anti–wrinkle: option to ensure laundry is left with fewer creases to make ironing easier.
Spin speed control: spin speed can be adjusted and, in some models, maximum spin speed is 1400 rpm/min or spin can be excluded. (Note: this machine offers selectable speeds up to 1600 rpm as listed in its spin options.)
Steam option: steam is used for smoothing creases, refreshing fabrics, neutralising odours, releasing dirt and destroying allergens more quickly than washing in water.

Frequently Asked Questions

What is the load capacity of the SMEG WNP96SLAAUK1?

The drum has a rated capacity of 9 kg and a drum volume of 65 l, offering large capacity to handle heavy loads with advanced programmes for impeccable results every wash.

Which energy efficiency class does this washing machine have?

This washing machine has an Energy Efficiency Class of A. Its energy consumption is 49 kWh per 100 cycles and water consumption is 43 litres.

How many washing programmes are available and what types are included?

There are 14 programmes. These include Anti–allergy, Auto Program, Shirts, Cotton, Cotton Eco 40–60, Wool/Hand wash, Mix, Outdoor, Quick Wash 14 min, Refresh, Rinse, Drain + Spin, Self Clean and Synthetics, plus special programmes such as Automatic, Outdoor, Refresh, Anti–allergy and Quick 14 min.

What does the variable load system do?

The variable load system automatically adapts the wash cycle and operating time based on the quantity and type of laundry. This allows significant savings of water and energy power, up to 30% compared to versions with fixed load.

How does the Steam Energy Technology help with laundry?

Steam Energy Technology uses steam at the beginning or end of the cycle, depending on the programme, to remove stains, creases, smells and allergens. The steam option is also suitable for smoothing creases, refreshing fabrics, neutralising odours and releasing dirt.

Is there a function to help people with sensitive skin or allergies?

Yes. The Anti–allergy (Antiallergic) programme focuses on the total removal of residual detergent. In addition, the Extra Rinse option adds an extra rinse cycle to remove any residual detergent, particularly suitable for those with allergies or skin problems.
