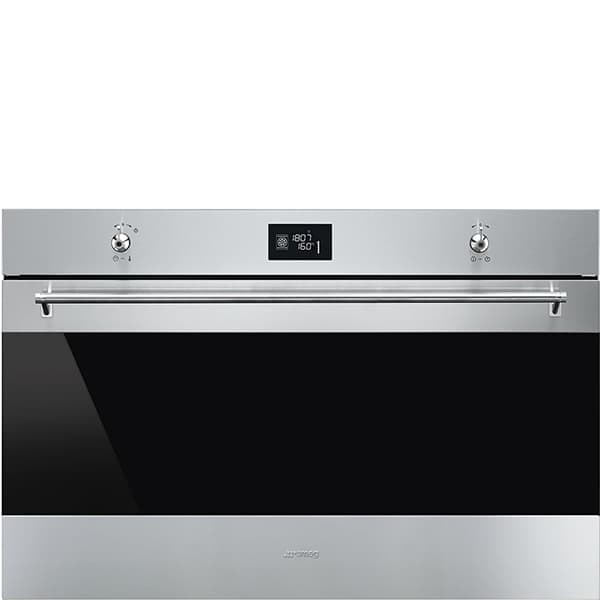

The SMEG SF9390X1 is a 90 cm electric single oven with thermo–ventilated cooking and a 70 l capacity. Finished in fingerprint proof stainless steel with Classic styling, it features an Eclipse glass door, LCD CompactScreen display and easy clean enamel cavity. With 9 cooking functions, 20 automatic programmes, Vapor Clean and an A+ energy efficiency class, this oven is designed to deliver versatile performance with electronic temperature control and rapid pre–heating.

Key Features

90 cm electric single oven from the Classic aesthetics family with flat, brushed stainless steel design.
Thermo–ventilated cooking method with double fan for effective hot air circulation.
9 cooking functions including Static, Fan assisted, Circulaire, Turbo, ECO, Large grill, Fan grill (large), Base and Fan assisted base.
20 automatic programmes for pre–set cooking options.
Vapor Clean system uses steam to loosen deposits in the oven cavity for simpler cleaning.
A+ energy efficiency class for reduced energy consumption compared to class A.
Electronic temperature control maintains oven temperature with 2–3 °C precision.
Temperature range 30–280 °C suitable for low–temperature proving through to high–heat cooking.
70 l capacity with 5 shelf positions and usable cavity dimensions of 371x724x418 mm.
Easy clean enamel cavity with antacid lining to help reduce grease adherence.
Temperate triple glazed door with full glass inner door and removable inner glass for cleaning.
Fingerprint proof stainless steel finishing helps the exterior stay looking as good as new.
CompactScreen LCD display with steel effect Classic control knobs (2 controls).
Rapid pre–heating function to reach the selected temperature in a few minutes.
Keep warm and Eco light options for holding food warm and saving energy.
Child lock / safety controls to prevent the programme being accidentally changed.
Tangential air cooling system with double cooling duct and speed reduction cooling system.
Halogen side lighting with 2x40 W lights and automatic light when the door is opened.
Standard opening door that suspends heating and activates cooling when opened.
Included accessories of chrome shelf with back and side stop, extra deep enamelled tray, grill mesh and partial telescopic guide rails.

Technical Specifications

Category	90cm Single Ovens
Product family	Oven
Model	SF9390X1
Power supply	Electric
Heat source	Electric
Cooking method	Thermo–ventilated
Cleaning system	Vapor Clean
EAN code	8017709234614
Aesthetics	Classic
Colour	Stainless steel
Finishing	Fingerproof
Design	Flat
Material	Stainless steel
Type of steel	Brushed
Glass type	Eclipse
Serigraphy colour	Black
Serigraphy type	Symbols
Door design	With 2 horizontal strips
Handle	Classic
Handle colour	Stainless steel
Logo	Embossed
Control knobs	Classic
Controls colour	Steel effect
Display name	CompactScreen
Display technology	LCD
Control setting	Control knobs
Number of controls	2
Capacity	70 l
Net volume of cavity	115 litres

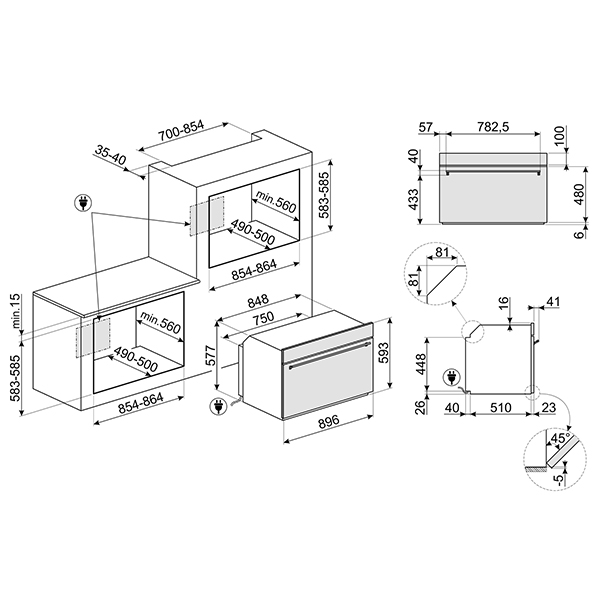

Usable cavity space (HxWxD)	371x724x418 mm
Shelf positions	5
Number of cavities	1
Cavity material	Easy clean enamel
Minimum temperature	30 °C
Maximum temperature	280 °C
Temperature control	Electronic
Lower heating element power	1700 W
Upper heating element power	1200 W
Grill element power	1700 W
Large grill power	2900 W
Circular heating element power	1550 W
Double fan	Yes
Door opening type	Standard opening
Door type	Temperate door
Removable door	Yes
Full glass inner door	Yes
Removable inner door	Yes
Total number of door glasses	3
Cooling system	Tangential
Cooling duct	Double
Speed reduction cooling system	Yes
Number of lights	2
Light type	Halogen
Light power	40 W
Light when door is opened	Yes
Heating suspended when door is opened	Yes
Controls lock / child safety	Yes
Time–setting options	Delay start and automatic end cooking
Minute minder	Yes
Other options	Keep warm, Eco light, Showroom demo option, Rapid pre–heating
Energy efficiency class	A+
Energy efficiency index	81,6 %
Energy consumption per cycle (conventional)	1,35 kWh
Energy consumption in conventional mode	4,86 MJ
Energy consumption per cycle (fan–forced convection)	0,84 kWh
Energy consumption in forced air convection	3,02 MJ
Chrome shelf with back and side stop	1
Extra deep enamelled tray (40 mm)	1
Grill mesh	1
Telescopic guide rails, partial extraction	1
Voltage	220–240 V
Frequency	50/60 Hz
Current	14 A
Nominal power	3100 W
Power supply cable length	150 cm

Functions and Usage Details

Traditional cooking functions

Static (upper and lower element only): Traditional method best suited for single items in the centre of the oven; the top of the oven is hottest. Ideal for roasts, fruit cakes and bread.
Fan assisted (fan with upper and lower elements): Provides more uniform heat, similar to conventional cooking; pre–heat required and suitable for slow cooking.
Circulaire: Fan with circular element for hot air cooking, with no pre–heat if cooking for more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy use and shorter cook times.
Turbo (circulaire + bottom + upper + fan): Fan used with both elements to cook food quickly and effectively, ideal for large joints that require thorough cooking.
ECO: Combination of grill, fan and lower element, particularly suitable for cooking small quantities of food.
Large grill: Grill element gives excellent results for medium and small portions of meat, sausages and bacon.
Fan grill (large): Fan softens the fierce grill heat for even browning and distribution, suitable for chops, steaks and sausages; top two levels recommended and the lower part can keep items warm.
Base (lower heating element only): Ideal for foods needing extra base heat without browning, such as pastry dishes and pizza, and for slow cooking stews and casseroles.
Fan assisted base: Mix of fan and lower element to finish cooking foods already cooked on the surface but not internally, recommended where moderate higher heat is needed.

Other functions

Defrost by time: Defrosting time is determined automatically based on time.
Defrost by weight: Defrosting time is determined according to the weight of the food.
Proving: Air at 40 °C provides the environment for proving yeast–type dough mixes; place dough in the cavity for the allotted time.
Sabbath: Allows food to be cooked whilst respecting the provisions of the Jewish day of rest.
Keep warm: Keeps pre–cooked foods warm.
Showroom demo option: Function available for display use.
Rapid preheat: Reaches the selected temperature in just a few minutes.

Cleaning and maintenance

Vapor Clean: Simple cleaning function using steam to loosen deposits in the oven cavity.
Easy clean enamel interior: Special antacid lining helps reduce the amount of cooking grease adhering to the cavity.
All glass inner door: Single flat surface that is simple to keep clean.
Removable inner door glass: Inner glass can be removed with a few quick movements for cleaning.
Fingerprint proof stainless steel: Helps stainless steel surfaces stay looking as good as new.

Safety and convenience

Child lock: Locks the programme or cycle so it cannot be accidentally changed.
Air cooling system: Ensures safe surface temperatures.
Automatic lighting switch–off: Lighting switches off automatically after one minute from the start of cooking for energy savings.
Telescopic rails: Allow dishes to be pulled out to check food without removing trays entirely.
Oven cavity levels: 5 different cooking levels for flexible tray positioning.

Compatible accessories

GTP: Partially extractable telescopic guides (1 level), extraction 300 mm, stainless steel AISI 430 polished.
GTT: Totally extractable telescopic guides (1 level), extraction 433 mm, stainless steel AISI 430 polished.

Frequently Asked Questions

What is the capacity of the SMEG SF9390X1 oven?

The oven has a stated capacity of 70 litres and a net volume of 115 litres, with usable cavity space measuring 371x724x418 mm and 5 shelf positions.

Which cooking functions are available?

The oven offers 9 cooking functions: Static, Fan assisted, Circulaire, Turbo (circulaire + bottom + upper + fan), ECO, Large grill, Fan grill (large), Base and Fan assisted base. It also includes other functions such as defrost by time, defrost by weight, proving and Sabbath.

How does the Vapor Clean system work?

Vapor Clean is a simple cleaning function that uses steam to loosen deposits in the oven cavity, making it easier to wipe away residues from the easy clean enamel interior.

What energy rating does this oven have?

The SF9390X1 has an A+ energy efficiency class. This helps save up to 10 % energy compared to class A, providing maximum performance with minimum consumption according to the glossary description.

What safety features are included?

Safety features include a child lock to prevent accidental programme changes, an air cooling system to ensure safe surface temperatures, a temperate triple glazed door, heating suspended when the door is opened, and a tangential cooling system with double cooling duct and speed reduction cooling system.

Which accessories are supplied with the oven?

Supplied accessories are one chrome shelf with back and side stop, one extra deep enamelled tray (40 mm), one grill mesh and one set of partially extractable telescopic guide rails. Additional compatible telescopic guides (GTP and GTT) are also available.

SF9390X1

Smeg SF9390X1 Classic Single Oven
