The SMEG KV194G is a 90 cm angled chimney cooker hood in Neptune Grey glass from the Linea aesthetic range. It offers ducted out or recirculation extraction, with perimeter extraction and stainless steel anti–grease filters. Touch control settings with white LED back–lighting provide access to three speeds plus intensive, 24 hour air filter function, time–setting options and Auto–Vent 2.0. Energy efficiency class A+ supports efficient kitchen ventilation.

Key Features

Product family & type: Hood – Chimney Cooker Hoods with angled design.
Installation options: Extraction can be ducted out or re–circulation is possible.
Perimeter extraction: Perimeter extraction panels are very efficient and aid noise reduction.
Touch controls: Electronic touch control, back–lighted in white for easy operation.
Speeds: 3 standard speeds plus intensive/turbo setting when extra fast extraction is required.
24 h air filter function: When selected, this function refreshes the air for about 10 minutes every hour over a 24 hour period at minimum speed and an imperceptible noise level.
Time–setting options: Includes a special setting to run after the end of cooking for a pre–set time and then switch off automatically.
Auto–Vent 2.0: Connection between hob and hood (further details Not stated in source).
Lighting: 2 LED lights, 2.1 W each, with dimmer mode and adjustable colour temperature range 2700–4000 K to illuminate the cooking area or add to kitchen ambience.
Energy performance: Energy efficiency class A+ with Annual Efficiency Consumption 41 kWh/year.
Extraction performance: Free outlet maximum capacity 820 m³/h and intensive extraction rate 782 m³/h.
Noise levels: Airborne acoustical A–weighted sound power emissions from 50 dBA at minimum speed to 72 dBA at intensive speed.
Filters: Stainless steel anti–grease filters with filter replacement indicator and charcoal filters included.

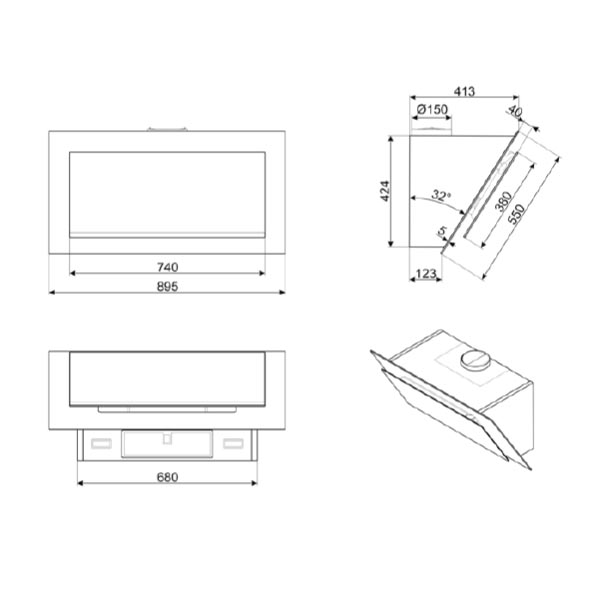

Dimensions & clearances: Hood width 90 cm; minimum distance from gas hob 650 mm and from electric hob 450 mm.
Vent outlet: 150 mm vent outlet with non return valve included.
Electrical connection: Nominal power 279 W, voltage 220–240 V, frequency 50–60 Hz, with 1500 mm power supply cable.
Materials & finish: Glass material with Neptune Grey colour, black glass type, grey serigraphy and silk screen logo.
Alternative colour available: Black version available as model KV194B3.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Angled
Aesthetics	Linea
Colour	Neptune Grey
Material	Glass
Glass type	Black
Serigraphy colour	Grey
Logo	Silk screen
EAN code	8017709327897
Model	KV194G
Hood width	90 cm
Electronic control	Yes
Control setting	Touch control back–lighted
Back–light colour	White
Extraction type	Ducted out or re–circulation possible
Perimeter extraction	Yes
Free outlet maximum capacity	820 m³/h
Air flow at minimum speed (Qmin)	277 m³/h
Maximum extraction rate	636 m³/h
Intensive extraction rate	782 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	50 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	71 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	72 dBA
Sound power level at highest setting (Lwa)	71 dBA
Speed 1 – extraction rate / noise	277 m³/h – 50 dBA
Speed 2 – extraction rate / noise	406 m³/h – 63 dBA
Speed 3 – extraction rate / noise	636 m³/h – 70 dBA
Intensive speed – extraction rate / noise	782 m³/h – 72 dBA
Motor power	275 W
Measured air flow rate at best efficiency point (Qbep)	403 m³/h
Measured air pressure at best efficiency point (Qbep)	479 Pa
Measured electric power input at best efficiency point (Wbep)	148 W
Number of lights	2
Light type	LED
Light power	2,1 W
Dimmer mode	Yes
Light colour temperature range	2700 – 4000 K
Normal power of the light system (Wl)	5 W
Average illumination on cooking surface (Emiddle)	139 lux
Anti–grease filters	Stainless steel
Number of filters	2
Charcoal filters included	Yes
Filter replacement indicator	Yes
Vent outlet	150 mm
Non return valve	Yes
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	450 mm
Energy efficiency class (EEC)	A+
Annual Efficiency Consumption (AEChood)	41 kWh/year
Fluid Dynamic Efficiency (FDE)	36,2
Fluid Dynamic Efficiency class (FDEC)	A
Lighting Efficiency (LE)	34,8 lux/W
Lighting Efficiency class (LEC)	A
Grease Filtering Efficiency (GFE)	64,3 %
Grease Filtering Efficiency class (GFEC)	E
Time increase factor (F)	0,7
Energy Efficiency Index per first cavity	41,2
Nominal power	279 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Extraction rate IEC 61591	Values as per speed breakdown above
Noise level IEC 60704–2–13	Values as per speed breakdown above

Additional Details & Usage

Programmes & Functions

3 speeds plus intensive speed.
24 h air filter function – refreshes the air for about 10 minutes every hour over 24 hours at minimum speed and an imperceptible noise level.
Time–setting options with a special setting to run after the end of cooking for a pre–set time and then switch off automatically.
Auto–Vent 2.0 – connection between hob and hood (operation details Not stated in source).

Installation & Safety

Can be installed for ducted extraction or recirculation.
Vent outlet diameter 150 mm with non return valve.
Minimum distance from gas hob: 650 mm.
Minimum distance from electric hob: 450 mm.

Filters & Cleaning

The hood includes stainless steel anti–grease filters and charcoal filters. A warning light advises when filters need changing. Models have filters to help remove grease from the steam emanating from the pans during cooking. Extracting through charcoal filters or directly to the exterior lessens strong cooking odours considerably.

Lighting

The cooker hood features LED lights to illuminate the cooking area or add to the ambience of the kitchen. Lights are dimmable and offer a colour temperature range from 2700 K to 4000 K.

Compatible Accessories

KITALLFC – Universal charcoal filter in stainless steel AISI 304. The filter can be washed in a dishwasher at 50 °C (water and suitable detergent) and to dry it put in the oven at 180 °C for 25 minutes.
KITCMNKVMB – Chimney extension in stainless steel for hood KV* series, 300 mm*200 mm + 500/850 mm.
KITCMNKVX – Chimney extension in stainless steel for hood KV* series.
KITFCKV1 – Kit of 2 charcoal filters for hood KV1* series.

Frequently Asked Questions

Can this hood be used in recirculation as well as ducted mode?

Yes. Extraction can be ducted out or re–circulation is possible. Charcoal filters are included to support recirculation use.

How many speeds does the SMEG KV194G have?

The hood has 3 speeds plus an intensive speed for extra fast extraction when required.

What is the maximum extraction rate?

The maximum extraction rate is 636 m³/h, with an intensive extraction rate of 782 m³/h and a free outlet maximum capacity of 820 m³/h.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 450 mm.

Does the hood indicate when filters need changing?

Yes. There is a filter replacement indicator and warning light to advise when filters need changing.

What is the energy efficiency class of this hood?

The energy efficiency class is A+. This helps to save up to 10 % energy compared to class A, with maximum performance and minimum consumption guaranteed.
