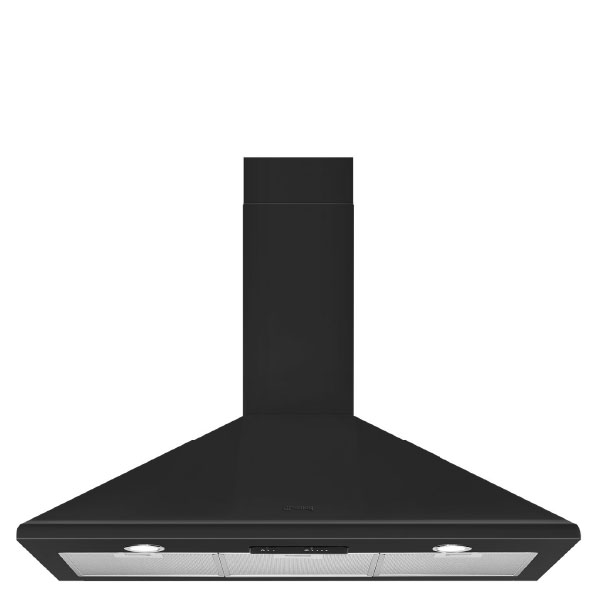

The SMEG KSED95MBL is a 90 cm matte black chimney cooker hood from the Victoria aesthetic line, designed for ducted or re–circulation extraction. It features three slider–controlled speeds, efficient LED lighting and aluminium anti–grease filters. With a free outlet maximum capacity of 595 m³/h and energy efficiency class B, it offers effective extraction, clear illumination of the cooking area and flexible installation options.

Key Features

90 cm chimney cooker hood designed as part of the Victoria aesthetics family.
Flexible extraction with ducted out or re–circulation operation possible.
Matte black finish in painted material with brushed steel and silk screen logo.
Three slider–controlled speeds to adjust extraction performance as needed.
LED lighting with 2 lights, 1 W each, at 4000 K for clear cooking area illumination.
Aluminium anti–grease filters with 3 filters supplied for grease removal.
High extraction performance with free outlet maximum capacity of 595 m³/h.
Energy efficiency class B with annual energy consumption of 54 kWh/year.
Noise levels from 50 to 65 dBA depending on selected speed.
150 mm vent outlet with non–return valve included.
Minimum installation clearances of 750 mm above gas hobs and 650 mm above electric hobs.
Available in alternative colours including stainless steel, anthracite and red wine in corresponding models.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Extraction	Ducted out or re–circulation possible
Material	Painted material, brushed type of steel
EAN code	8017709346324
Hood width	90 cm
Aesthetics	Victoria
Colour / finishing	Matte Black, black finishing, silk screen logo
Control setting	Slider
Number of speeds	3
Number of lights	2
Light type	LED
Light power	1 W (each light)
Light colour temperature	4000 K
Free outlet maximum capacity	595 m³/h
Motor power	200 W
Number of filters	3
Anti–grease filters	Aluminium
Vent outlet	150 mm
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Non–return valve	Yes
Extraction rate IEC 61591 – speed 1	328 m³/h – 50 dBA
Extraction rate IEC 61591 – speed 2	420 m³/h – 57 dBA
Extraction rate IEC 61591 – speed 3	588 m³/h – 65 dBA
Annual efficiency consumption (AEChood)	54 kWh/year
Energy efficiency class (EEC)	B
Fluid Dynamic Efficiency (FDE)	25,3
Fluid Dynamic Efficiency class (FDEC)	B
Lighting Efficiency (LE)	74 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	70,8 %
Grease Filtering Efficiency Class (GFEC)	D
Air flow at minimum speed (Qmin)	328 m³/h
Maximum extraction rate	588 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	50 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	65 dBA
Time increase factor (F)	1,1
Energy Efficiency Index per first cavity	61,2
Measured air flow rate at best efficiency point (Qbep)	318,4 m³/h
Measured air pressure at best efficiency point (Qbep)	375 Pa
Measured electric power input at best efficiency point (Wbep)	131 W
Normal power of the light system (Wl)	2,2 W
Average illumination on cooking surface (Emiddle)	164 lux
Sound power level at highest setting (Lwa)	65 dBA
Nominal power	202 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	Stainless steel, Anthracite, Red Wine
Available colour models	KSED95XE – KSED95AE – KSED95RWE

Additional Details and Usage

The hood uses aluminium anti–grease filters to help remove grease from the steam produced during cooking. It is equipped with LED lights designed to illuminate the cooking area or contribute to the ambience of the kitchen.

The appliance operates at three speeds controlled via a slider, allowing the extraction rate and corresponding noise level to be matched to cooking intensity. Minimum installation distances are 750 mm above gas hobs and 650 mm above electric hobs.

A non–return valve is included, and the hood can be installed for either ducted extraction through a 150 mm vent outlet or operated in re–circulation mode when suitable filters are fitted.

Frequently Asked Questions

What is the maximum extraction rate of the SMEG KSED95MBL?

The free outlet maximum capacity is 595 m³/h, and the maximum extraction rate is stated as 588 m³/h under the performance data.

How many speeds and what noise levels does this hood have?

The hood has 3 speeds. At speed 1 the extraction rate is 328 m³/h at 50 dBA, speed 2 is 420 m³/h at 57 dBA, and speed 3 is 588 m³/h at 65 dBA.

Can this cooker hood be used in re–circulation mode?

Yes. The extraction system allows for ducted out installation or re–circulation operation, depending on how it is configured and which filters are used.

What type of lighting is provided and what is the colour temperature?

The hood is fitted with 2 LED lights, each rated at 1 W. The light colour temperature is 4000 K, and the average illumination on the cooking surface is 164 lux.

Which compatible charcoal filters are available?

Compatible accessories include the FLT6 round charcoal filters (kit of 2 pieces) and the KITALLFC universal charcoal filter in stainless steel AISI 304, which can be washed in a dishwasher at 50 °C with suitable detergent and dried in an oven at 180 °C for 25 minutes.

What is the energy efficiency class and annual energy consumption?

The hood has an energy efficiency class B with an annual efficiency consumption (AEChood) of 54 kWh/year.
