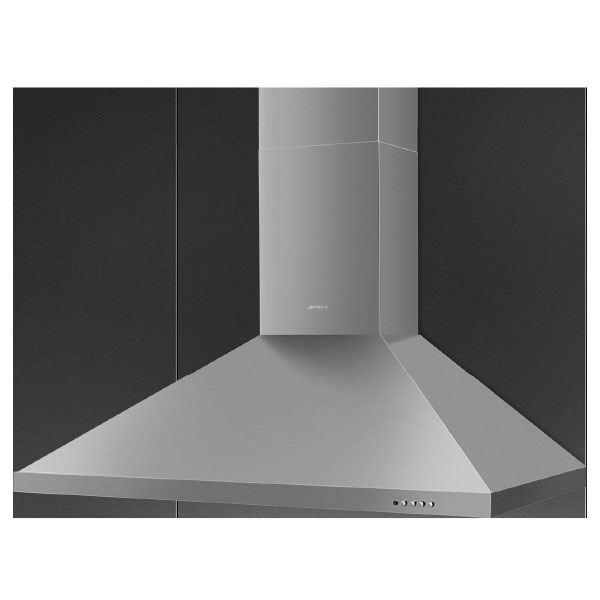

The SMEG KD91XE3 is a 90 cm stainless steel chimney cooker hood with a universal aesthetic and brushed finish. It offers ducted out or re–circulation extraction, with three button–controlled speeds delivering up to 600 m³/h extraction. Equipped with two 4 W LED lights at 4000 K and three aluminium anti–grease filters, it combines effective illumination and grease filtering. The hood is suitable for installation above gas or electric hobs within the stated minimum distances.

Key Features

90 cm chimney design with universal aesthetics, stainless steel colour and brushed finishing.
Flexible extraction with ducted out or re–circulation operation possible.
Button controls with 3 speeds to adjust extraction performance.
High free outlet maximum capacity of 620 m³/h and maximum extraction rate of 600 m³/h.
Efficient LED lighting with 2 x 4 W LED lights at 4000 K and 133 lux average illumination on the cooking surface.
Aluminium anti–grease filters – 3 filters to help remove grease from cooking steam.
Energy efficiency class C with annual energy consumption of 79 kWh/year.
Grease Filtering Efficiency of 75,1 % (Class C).
Lighting Efficiency of 17 lux/W (Class C).
Fluid Dynamic Efficiency of 18,20 (Class C).
Quiet operation at minimum speed with airborne A–weighted sound power emission of 45 dBA.
Vent outlet of 150 mm with tube reduction supplied.
Compatible charcoal filter kit KITFC152 – Charcoal filters Round Kit 2 pieces.
Embossed logo for a defined brand detail on the hood.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Universal
Model	KD91XE3
EAN code	8017709345976
Hood width	90 cm
Colour	Stainless steel
Finishing	Brushed
Material	Stainless steel
Type of steel	Brushed
Logo	Embossed
Extraction	Ducted out or re–circulation possible
Control setting	Buttons
Number of speeds	3
Number of lights	2
Light type	LED
Light power	4 W (each)
Light colour temperature	4000 K
Free outlet maximum capacity	620 m³/h
Maximum extraction rate	600 m³/h
Motor power	160 W
Number of filters	3
Anti–grease filters	Aluminium
Vent outlet diameter	150 mm
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Annual Efficiency Consumption (AEChood)	79 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	18,20
Fluid Dynamic Efficiency class (FDEC)	C
Lighting Efficiency (LE)	17 lux/W
Lighting Efficiency Class (LEC)	C
Grease Filtering Efficiency (GFE)	75,1 %
Grease Filtering Efficiency Class (GFEC)	C
Air flow at minimum speed (Qmin)	260 m³/h
Extraction rate IEC 61591 – Speed 1	260 m³/h
Noise level IEC 60704–2–13 – Speed 1	45 dBA
Extraction rate IEC 61591 – Speed 2	390 m³/h
Noise level IEC 60704–2–13 – Speed 2	54 dBA
Extraction rate IEC 61591 – Speed 3	600 m³/h
Noise level IEC 60704–2–13 – Speed 3	63 dBA
Airborne A–weighted sound power emission at minimum speed (SPEmin)	45 dBA
Airborne A–weighted sound power emission at maximum speed (SPEmax)	63 dBA
Sound power level at highest setting (Lwa)	63 dBA
Time increase factor (F)	1,3
Energy Efficiency Index per first cavity	75,6
Measured air flow rate at best efficiency point (Qbep)	338 m³/h
Measured air pressure at best efficiency point	300 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Normal power of the light system (Wl)	8 W
Average illumination on the cooking surface (Emiddle)	133 lux
Nominal power	168 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
Accessories included	Tube reduction
Compatible accessories	KITFC152 – Charcoal filters Round Kit 2 pieces

Additional Details and Usage

This hood uses aluminium anti–grease filters to help remove grease from the steam produced during cooking. It is fitted with lights to illuminate the cooking area or contribute to the ambience of the kitchen.

For installation, maintain a minimum distance of 650 mm above gas hobs and 500 mm above electric hobs. The unit can be configured for ducted extraction through a 150 mm vent outlet, or for re–circulation when used with suitable charcoal filters such as the KITFC152 round kit (2 pieces).

Operation is via button controls offering three speeds, allowing adjustment of extraction rate and sound level to suit different cooking activities.

Frequently Asked Questions

What is the width of the SMEG KD91XE3 hood?

The hood width is 90 cm.

Can this hood be used in re–circulation mode?

Yes. The extraction system allows for ducted out or re–circulation operation. For re–circulation, compatible charcoal filters such as the KITFC152 round kit (2 pieces) can be used.

What are the recommended installation heights above the hob?

The minimum distance from a gas hob is 650 mm, and from an electric hob is 500 mm.

How many speeds and what extraction rates does the hood offer?

There are 3 speeds. At speed 1 the extraction rate is 260 m³/h, at speed 2 it is 390 m³/h, and at speed 3 it is 600 m³/h.

What type of filters are fitted to this hood?

The hood has 3 aluminium anti–grease filters designed to help remove grease from steam produced during cooking.

How loud is the hood during operation?

The airborne A–weighted sound power emission is 45 dBA at minimum speed and 63 dBA at maximum speed. The sound power level at the highest setting (Lwa) is 63 dBA.
