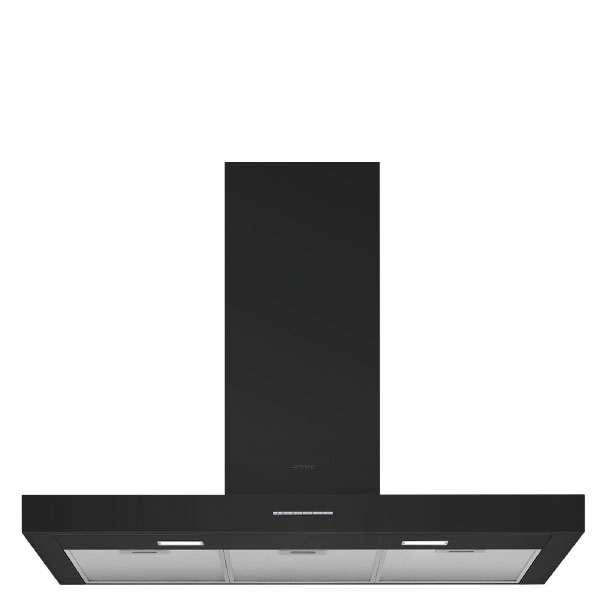

The Smeg KBT900NE is a 90 cm T flat chimney cooker hood in a universal matte black finish. It can be used ducted out or in re–circulation mode and offers electronic button controls with three speeds plus intensive. Energy efficiency class A, LED lighting and aluminium anti–grease filters provide effective extraction, while features such as 24 hour air filter function, time–setting options and filter replacement indicator support convenient everyday use.

Key Features

Product family & type: Chimney cooker hood from the Hood product family with T flat design.
Installation options: Extraction can be ducted out or operated in re–circulation mode.
Width: 90 cm hood width suitable for larger cooking areas.
Finish & aesthetics: Universal aesthetics in matte black with matte finishing and silk screen logo.
Controls: Electronic control with electronic buttons and three speeds plus intensive speed.
Lighting: Two LED lights, 1.3 W each, 3000 K colour temperature, lighting efficiency 70.4 lux/W (class A).
Maximum airflow: Free outlet maximum capacity 820 m³/h; intensive extraction rate 686 m³/h.
Energy performance: Energy efficiency class A with annual efficiency consumption 53 kWh/year.
Grease filtering: Three aluminium anti–grease filters with grease filtering efficiency 79.7 % (class C).
Noise performance: Airborne acoustical A–weighted sound power emissions from 48 dBA (minimum) to 71–72 dBA at highest/boost setting.
24 h air filter function: Refreshes the air for about 10 minutes every hour over 24 hours at minimum speed and imperceptible noise level.
Time–setting options: Special setting to run after cooking for a pre–set time and then switch off automatically.
Filter replacement indicator: Warning light advises when filters need changing.
Vent outlet & non return valve: 150 mm vent outlet with non return valve and tube reduction included.
Safety distances: Minimum distance from gas hob 650 mm and from electric hob 500 mm.
Construction: Painted material with brushed type of steel.
Electrical connection: Nominal motor power 230 W, voltage 220–240 V, frequency 50–60 Hz, power supply cable length 1500 mm.
Intensive/turbo setting: Intensive/turbo setting available when extra fast extraction is required.
Lighting function: Lights illuminate the cooking area or add to the ambience of the kitchen.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Extraction	Ducted out or re–circulation possible
Electronic control	Yes
Material	Painted material
Type of steel	Brushed
EAN code	8017709299811
Model	KBT900NE
Hood width	90 cm
Aesthetics	Universal
Colour	Matte Black
Finishing	Matte
Logo	Silk screen
Control setting	Electronic buttons
Number of speeds	3 plus intensive speed
24h air filter function	Yes
Time–setting options	Yes (switch off automatically after pre–set time)
Number of lights	2
Light type	LED
Light power	1,3 W
Light colour temperature	3000 K
Free outlet maximum capacity	820 m³/h
Motor power	230 W
Number of filters	3
Anti–grease filters	Aluminium
Filter replacement indicator	Yes (warning light)
Vent outlet	150 mm
Tube reduction	Yes
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Non return valve	Yes
Annual efficiency consumption (AEChood)	53 kWh/year
Energy efficiency class (EEC)	A
Fluid dynamic efficiency (FDE)	29,8
Fluid dynamic efficiency class (FDEC)	A
Lighting efficiency (LE)	70,4 lux/W
Lighting efficiency class (LEC)	A
Grease filtering efficiency (GFE)	79,7 %
Grease filtering efficiency class (GFEC)	C
Air flow at minimum speed (Qmin)	261 m³/h
Maximum extraction rate (standard)	473 m³/h
Intensive extraction rate	686 m³/h
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	48 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	64 dBA
Airborne acoustical A–weighted sound power emission at boost speed (SPEboost)	71 dBA
Time increase factor (F)	0,9
Energy efficiency index per first cavity	52,0
Measured air flow rate at best efficiency point (Qbep)	395 m³/h
Measured air pressure at best efficiency point (Qbep)	451 Pa
Measured electric power input at best efficiency point (Wbep)	159 W
Normal power of the light system (Wl)	3 W
Average illumination on cooking surface (Emiddle)	156 lux
Sound power level at highest setting (Lwa)	71 dBA
Extraction rate IEC 61591 – Speed 1	265 m³/h
Noise level IEC 60704–2–13 – Speed 1	47 dBA
Extraction rate IEC 61591 – Speed 2	360 m³/h
Noise level IEC 60704–2–13 – Speed 2	55 dBA
Extraction rate IEC 61591 – Speed 3	480 m³/h
Noise level IEC 60704–2–13 – Speed 3	62 dBA
Extraction rate IEC 61591 – Intensive speed	713 m³/h
Noise level IEC 60704–2–13 – Intensive speed	72 dBA
Nominal power	230 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm

Additional Details and Usage

Controls and Programmes

The hood features electronic button controls with three standard speeds and an intensive speed for extra fast extraction when required. Time–setting options allow the hood to run for a pre–set time after cooking and then switch off automatically.

24 Hour Air Filter Function

When the 24 hour function is selected, the hood refreshes the air for approximately 10 minutes every hour over a 24 hour period, operating at minimum speed and an imperceptible noise level.

Filters and Maintenance

Model has aluminium anti–grease filters to help remove grease from steam during cooking.
A warning light advises when filters need changing.

Lighting

Two LED lights illuminate the cooking area and can also add to the ambience of the kitchen. Lighting efficiency is rated at 70,4 lux/W with lighting efficiency class A.

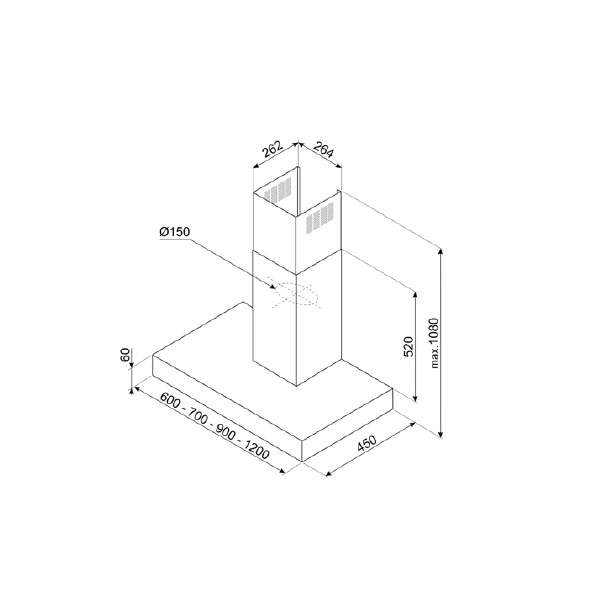

Installation Considerations

Minimum distance from a gas hob is 650 mm.
Minimum distance from an electric hob is 500 mm.
Vent outlet diameter is 150 mm and a tube reduction is included.
A non return valve is supplied.

Compatible Accessories

KITCEKBTMB / KITFCKBT: 1 pcs of activated carbon filter for hood models KBT* / KBCT*.
KITFCKBTR: 1 pcs of charcoal filter regenerable suitable for all the KBT/KBCT models. It can be washed in the dishwasher up to 12 times and dried in the oven at max 90 ° for 60 minutes. Dimension 237,5(H)x245x10 mm.

Frequently Asked Questions

Can this hood be used in re–circulation mode?

Yes. The extraction system can be ducted out or used in re–circulation mode. Compatible activated carbon and charcoal filters (KITCEKBTMB, KITFCKBT, KITFCKBTR) are available for KBT/KBCT models.

What is the energy efficiency class of the KBT900NE?

The hood has an energy efficiency class A with an annual efficiency consumption of 53 kWh/year.

How loud is the hood during operation?

Airborne acoustical A–weighted sound power emission is 48 dBA at minimum speed and 64 dBA at maximum speed. At boost speed it is 71 dBA, and the sound power level at the highest setting (Lwa) is 71 dBA.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 500 mm.

How does the 24 hour function work?

When activated, the 24 hour function refreshes the air for about 10 minutes every hour over a 24 hour period at minimum speed and with an imperceptible noise level.

How will I know when to change the filters?

The hood has a filter replacement indicator with warning light(s) to advise when filters need changing.

KBT900NE

Smeg KBT900NE Chimney Hood
