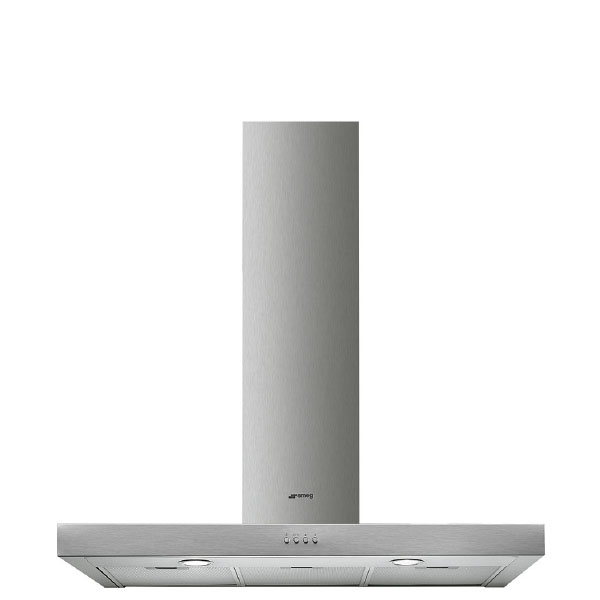

The KATE900EX is a 90 cm stainless steel chimney cooker hood with a T flat design and Universal aesthetics. It offers ducted out or re‑circulation extraction, operated via button controls with three speeds. Featuring LED lighting at 3500 K and aluminium anti‑grease filters, it combines brushed stainless steel finish with practical performance. It is suitable for installation above gas or electric hobs within the stated minimum distances.

Key Features

Chimney cooker hood, 90 cm width with T flat design and Universal aesthetics.
Stainless steel construction with brushed stainless steel finish and brushed steel material.
Flexible extraction – ducted out or re‑circulation operation possible.
Button controls with 3 speeds for simple adjustment of extraction rate.
LED lighting – 2 lights, 2.5 W each, 5 W total, 3500 K colour temperature.
Aluminium anti‑grease filters – 3 filters to help remove grease from steam during cooking.
Maximum free outlet capacity 612 m³/h with motor power of 175 W.
Extraction rates by speed (IEC 61591): 241, 370 and 590 m³/h.
Noise levels by speed (IEC 60704-2-13): 46, 56 and 67 dBA.
Energy efficiency class C with annual efficiency consumption of 77 kWh/year.
Lighting Efficiency Class A with 76.1 lux/W and average illumination of 381 lux on the cooking surface.
Grease Filtering Efficiency 76 % with Grease Filtering Efficiency Class C.
Vent outlet 150 mm with non‑return valve included.
Minimum installation distances – 650 mm from gas hobs and 500 mm from electric hobs.
Nominal power 180 W with 220–240 V, 50–60 Hz electrical connection.
Power supply cable length 1500 mm.
Optional charcoal filter kit – KITFC900 high‑performance washable charcoal filter, 1 piece.
Optional chimney extension – KITCMNKAT stainless steel chimney extension for T‑shape hood KAT & KATE.
Lights illuminate the cooking area or add to the ambience of the kitchen.

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	T flat
Aesthetics	Universal
Colour	Stainless steel
Finishing	Brushed
Material / Type of steel	Stainless steel, brushed
Hood width	90 cm
Extraction	Ducted out or re‑circulation possible
Serigraphy colour	Black
Logo	Silk screen
Control setting	Buttons
Number of speeds	3
Number of lights	2
Light type	LED
Light power	2.5 W (each), 5 W total (Normal Power of the light system Wl)
Light colour temperature	3500 K
Free outlet maximum capacity	612 m³/h
Maximum extraction rate	581 m³/h
Air flow at minimum speed (Qmin)	240 m³/h
Extraction rate IEC 61591 – Speed 1	241 m³/h
Extraction rate IEC 61591 – Speed 2	370 m³/h
Extraction rate IEC 61591 – Speed 3	590 m³/h
Noise level IEC 60704-2-13 – Speed 1	46 dBA
Noise level IEC 60704-2-13 – Speed 2	56 dBA
Noise level IEC 60704-2-13 – Speed 3	67 dBA
Sound power level at highest setting (Lwa)	68 dBA
Airborne acoustical A‑weighted sound power emission at minimum speed (SPEmin)	47 dBA
Airborne acoustical A‑weighted sound power emission at maximum speed (SPEmax)	68 dBA
Motor power	175 W
Nominal power	180 W
Number of filters	3
Filter type	Aluminium anti‑grease filters
Vent outlet	150 mm
Non return valve	Yes
Minimum distance from gas hob	650 mm
Minimum distance from electric hob	500 mm
Annual Efficiency Consumption (AEChood)	77 kWh/year
Energy efficiency class (EEC)	C
Fluid Dynamic Efficiency (FDE)	20.2
Fluid Dynamic Efficiency Class (FDEC)	C
Lighting Efficiency (LE)	76.1 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	76 %
Grease Filtering Efficiency Class (GFEC)	C
Time increase factor (F)	1.3
Measured air flow rate at best efficiency point (Qbep)	336 m³/h
Measured air pressure at best efficiency point (Qbep)	334 Pa
Measured electric power input at best efficiency point (Wbep)	155 W
Average illumination on cooking surface (Emiddle)	381 lux
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1500 mm
EAN code	8017709235147

Additional Details and Usage

This model includes aluminium anti‑grease filters designed to help remove grease from the steam produced during cooking. The hood also features integrated lights to illuminate the cooking area or contribute to the ambience of the kitchen.

For installation above a hob, the minimum distance from a gas hob is 650 mm and from an electric hob is 500 mm. The vent outlet measures 150 mm and a non‑return valve is included.

Optional accessories include the KITFC900 charcoal filter kit (1 piece, high performances washable) and the KITCMNKAT stainless steel chimney extension, dimension 241 × 231 × 810 for T‑shape hood KAT & KATE.

Frequently Asked Questions

Can this hood be used in both ducted and recirculation modes?

Yes. The extraction system allows for ducted out installation or re‑circulation operation.

What is the width of the KATE900EX hood?

The hood width is 90 cm.

How many speeds and what type of controls does it have?

The hood has 3 speeds and is operated using button controls.

What are the minimum installation distances from the hob?

The minimum distance from a gas hob is 650 mm and from an electric hob is 500 mm.

Does the hood provide lighting over the cooking area?

Yes. It has two LED lights (2.5 W each) which illuminate the cooking area or can add to the ambience of the kitchen.

Which optional accessories are compatible with this hood?

Compatible accessories include the KITFC900 charcoal filter kit (1 piece high performances washable) and the KITCMNKAT stainless steel chimney extension, dimension 241 × 231 × 810 for T‑shape hood KAT & KATE.
