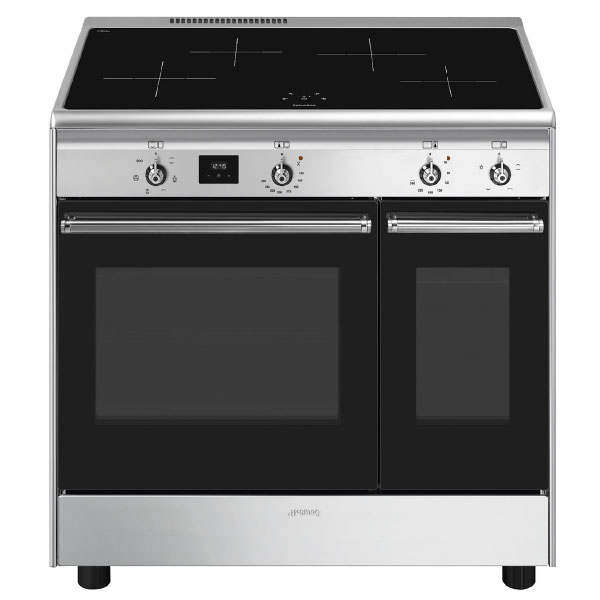

The Smeg CX92IM is a 90x60 cm Classic Concert cooker with an induction hob and two A-rated electric ovens. It combines a Thermo-ventilated main oven with Vapor Clean assisted steam cleaning and a static auxiliary oven. Designed in brushed stainless steel with Smeg Classic knobs and handle, it offers multilevel cooking, precise touch control and a practical storage compartment, providing flexible performance for everyday cooking and baking.

Key Features

90x60 cm Concert cooker with Classic aesthetics, brushed stainless steel finish and embossed logo on the facia below the oven.
Induction hob with 4 zones including giant and single zones, each with Booster function for fast heating.
Two electric ovens with energy label, both rated energy efficiency class A for main and second cavities.
Thermo-ventilated main oven with Circulaire fan system for homogeneous and quicker cooking inside the cavity.
Static auxiliary oven offering additional capacity and traditional cooking functions.
Vapor Clean system in the main oven, using steam to help loosen food residue and spills for easier cleaning.
Touch control display with easy and intuitive timer setting with a single touch.
Multilevel cooking with several cooking levels for maximum flexibility of use.
Multilevel halogen lighting in the main cavity for excellent internal visibility.
Full glass doors and removable inner glass for a flat surface that is simple to keep clean.
Tangential cooling and cold door for a safe external door temperature during any function.
Storage compartment door providing extra space for accessories or cooking utensils.
Isothermic cavity designed to support cooking performance with high energy efficiency.
Adjustable height so the cooker top can be flushed with the working area using adjustable feet.
Single turbine fan system with circular heating element for cooking with rotating heat.
Compatible with optional AirFry, pizza stone and BBQ accessories for lighter frying, stone-baked pizza and barbeque-style cooking in the oven.

Technical Specifications

Model	CX92IM
Cooker size	90x60 cm
Series	Concert
Aesthetics	Classic
Design	Standard
Colour / finish	Stainless steel, brushed finish
Hob type	Induction
Total no. of cook zones	4
Front left zone	Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm
Rear left zone	Induction – single – 1.30 kW – Booster 1.40 kW – Ø 18.0 cm
Rear right zone	Induction – giant – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm
Front right zone	Induction – single – 1.30 kW – Booster 1.40 kW – Ø 18.0 cm
No. of cavities with energy label	2
Cavity heat source	Electric
Type of main oven	Thermo-ventilated
Type of second oven	Static
Cleaning system main oven	Vapor Clean
Energy efficiency class (main)	A
Energy efficiency class (second cavity)	A
Main oven net volume	70 litres
Main oven gross volume	79 l
Main cavity material	Easy clean enamel
Main oven shelf positions	5
Main oven shelves type	Metal racks
Main oven lights	1 – Halogen – 40 W
Main oven usable cavity (HxWxD)	360X460X425 mm
Main oven lower heating element power	1200 W
Main oven upper heating element power	1000 W
Main oven grill element power	1700 W
Circular heating element power	2000 W
Main oven grill type	Electric
Main oven temperature control	Electro-mechanical
Main oven temperature range	50 °C to 260 °C
Second oven net volume	35 litres
Second oven gross volume	36 l
Second cavity material	Easy clean enamel
Second oven shelf positions	4
Second oven shelves type	Metal racks
Second oven lights	1 – Incandescent – 25 W
Second oven usable cavity (HxWxD)	311x206x418 mm
Second oven lower heating element power	700 W
Second oven upper heating element power	600 W
Second oven grill element power	1300 W
Second oven large grill power	1900 W
Second oven grill type	Electric
Second oven temperature control	Electro-mechanical
Second oven temperature range	50 °C to 245 °C
Door opening (both ovens)	Flap down
Door type	Full glass, removable door and removable inner door
Total no. of door glasses (main)	3 – 1 thermo-reflective glass
Total no. of door glasses (second)	3 – 1 thermo-reflective glass
Cooling system	Tangential cooling
Safety thermostat	Yes (both cavities)
Type of control setting	Touch control with slider (white)
Control knobs	Smeg Classic, stainless steel, 4 controls
Serigraphy colour	Silver
Display	Touch
Accessories included (main oven & hob)	Chrome shelf with back and side stop (1) 20mm deep tray (1) 40mm deep tray (1) Grill mesh (1)
Accessories included (second oven)	Chrome shelf with back and side stop (1) Wide baking tray (1) Grill mesh (1)
Max power draw	11000 W
Current	33 A
Voltage	220-240 V
Voltage 2	380-415 V
Type of electric cable	Yes, Single phase
Additional connection modalities	Yes, Double and Three Phase
Frequency	50/60 Hz
Terminal block	5 poles

Functions, Cleaning and Usage

Main oven cooking functions

The main oven offers 6 traditional cooking functions:

Static – upper and lower elements for traditional cooking.
Fan assisted – fan with upper and lower elements for more uniform heat.
Circulaire – fan with circular element for hot air cooking, allowing quicker, homogeneous results.
ECO – combination of grill, fan and lower element for small quantities of food.
Large grill – full grill element, ideal for meat, sausages and bacon.
Fan assisted base – fan with lower element, recommended for finishing foods already cooked on the surface.

Auxiliary oven cooking functions

The auxiliary static oven provides 4 traditional functions:

Static
Small grill
Large grill
Bottom (lower heating element only)

Induction hob usage benefits

Fast cooking and precise temperature control thanks to electromagnetic induction.
Easy to use and maintain when used with suitable cookware.
Safe and responsive heating generated directly in the bottom of the pan.

Vapor Clean assisted cleaning

The Vapor Clean function is an assisted steam clean programme designed to help loosen food residue and spills inside the main oven cavity. Steam softens deposits, making them easier to wipe away from the easy clean enamel interior.

Lighting and visibility

Multilevel halogen light provides excellent visibility inside the main oven.
Light activation – the oven light comes on when the door is open.

Controls and timers

Touch control timer allows easy and intuitive timer setting with a single touch.
Cooking time setting with Start and Stop functions on the main oven.
Timer and acoustic alarm signal the end of cooking.

Safety and cooling

Tangential cooling system with airflow from the door to the splashback.
Cold door – during any function, the external door glass is cold, avoiding risk of burns.
Safety thermostat fitted to both cavities.

Optional and compatible accessories

AIRFRY air fryer rack and AIRFRY2 air fryer tray for recreating traditional frying in the oven with fewer calories and less fat, suitable for dishes such as French fries, fried vegetables and fish.
BBQ double sided plate for succulent and crispy dishes with a grilled taste, with ribbed side for meats and cheeses and smooth side for fish, seafood and vegetables.
STONE rectangular refractory stone, ideal for cooking pizzas with results similar to a wood-fired oven, and for bread, focaccias, pies, flans or biscuits.
BN620-1 / BN640 / BNP608T enamelled and Teflon-coated trays of various depths.
GTP / GTT partially or totally extractable telescopic guides (1 level), stainless steel AISI 430 polished.
KITH95 height extension kit (950 mm), stainless steel.
KITPC92X9 splash back, 90x60 cm, stainless steel, for Concert cookers with double pyrolitic cavity.
KITPDQ height reduction feet (850 mm), stainless steel, for cookers.
PALPZ pizza shovel with fold away handle (width 315 mm, length 325 mm).
SCRP scraper for induction and ceramic hobs and teppanyaki.
SFLK1 child lock.
SMOLD set of 7 silicone moulds usable from −60 °C to +230 °C.

Frequently Asked Questions

What type of hob does the Smeg CX92IM have?

The CX92IM has a 4 zone induction hob. It includes single and giant induction zones with Booster functions, offering fast cooking and precise temperature control when used with suitable cookware.

How many ovens does this cooker include and what are their types?

This cooker has two electric ovens with energy labels. The main oven is Thermo-ventilated and the second oven is static. Both cavities are rated energy efficiency class A.

What is the capacity of the main and auxiliary ovens?

The main oven has a net volume of 70 litres and a gross volume of 79 l. The auxiliary oven has a net volume of 35 litres and a gross volume of 36 l.

How does the Vapor Clean function work?

Vapor Clean is an assisted steam clean programme in the main oven. It uses steam to help loosen food residue and spills inside the cavity so they can be removed more easily from the easy clean enamel surface.

What accessories are supplied with the cooker?

For the main oven and hob, the cooker comes with a chrome shelf with back and side stop, a 20mm deep tray, a 40mm deep tray and a grill mesh. The secondary oven includes a chrome shelf with back and side stop, a wide baking tray and a grill mesh.

Are there optional accessories for air frying and pizza?

Yes. The AIRFRY air fryer rack and AIRFRY2 air fryer tray are designed to recreate traditional frying in the oven with fewer calories and less fat. The STONE refractory stone allows baking pizzas and yeast products with results similar to a typical wood-fired oven.

CX92IM

Smeg CX92IM Concert Induction Range Cooker
