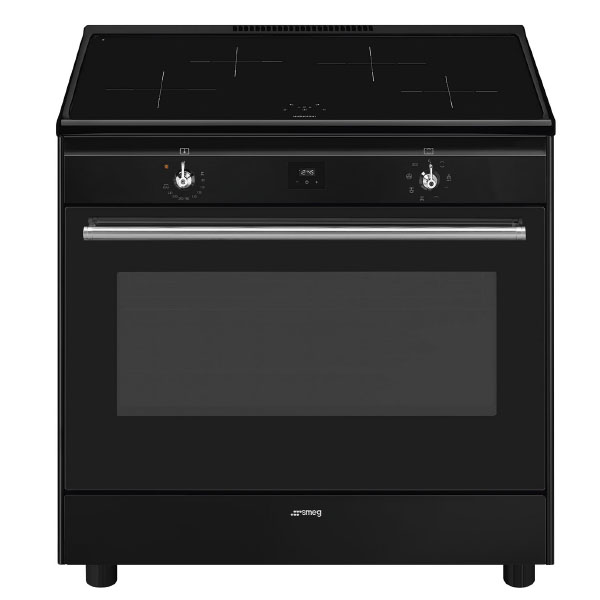

The SMEG CX91IMBL is a 90x60 cm Concert cooker with a black enamel induction hob and a single thermo–ventilated electric oven cavity. Designed with Classic aesthetics, it features a full glass black door, Smeg Classic stainless steel controls and handle, and an A energy efficiency rating. The spacious 115 litre oven offers eight cooking functions, Vapor Clean and catalytic cleaning, making it suitable for users seeking flexible cooking performance and easier oven maintenance.

Key Features

Cooker size 90x60 cm – Generous width and depth for a spacious cooking area.
Induction hob with 4 zones – Front and rear zones up to 2.30 kW with Booster up to 3.00 kW and diameters of 18.0 cm and 21.0 cm.
Thermo–ventilated main oven – Electric cavity with fan and circular elements for hot air cooking (Circulaire function).
Eight cooking functions – Static, Fan assisted, Circulaire, ECO, Small grill, Large grill, Fan grill (large), Fan assisted base.
Dual cleaning systems – Vapor Clean steam function and catalytic panels to assist with oven cleaning.
Large 115 litre net oven capacity – With 5 shelf positions and easy clean enamel cavity.
Energy efficiency class A – Electric cooker with A–rated efficiency.
Classic black aesthetics – Black finish, black enamel hob, full glass black door and brushed stainless steel Smeg Classic handle.
Touch control hob operation – Touch control with red slider, touch display and selected zone indicator.
Safety features on hob – Control lock, automatic switch off when overheated, automatic pan detection and minimum pan diameter indication.
Flexible power management – Limited Power Consumption Mode options at 3000, 4500 and 7400 W.
Oven lighting and visibility – Two halogen lights, side lighting and light activation when the oven door is open.
Full glass inner door – Removable full glass inner door with 2 door glasses, including 1 thermo–reflective.
Included accessories – Chrome shelf with back and side stop, 20 mm deep tray and 1 catalytic panel.
Flexible electrical connection – Max power draw 10600 W with single, double or three phase connection options.

Technical Specifications

Model	CX91IMBL
Cooker size	90x60 cm
N. of cavities with energy label	1
Cavity heat source	Electric
Hob type	Induction
Type of main oven	Thermo–ventilated
Cleaning system main oven	Vapor Clean, Catalytic
EAN code	8017709343194
Energy efficiency class	A
Design	Standard
Series	Concert
Aesthetics	Classic
Colour / Finishing	Black / Black
Command panel finish	Enamelled metal
Hob colour	Black enamel
Logo	Embossed, on facia below the oven
Type of control setting	Touch control
Slider	Red
Control knobs	Smeg Classic, stainless steel, 2 controls
Serigraphy colour	Silver
Display	Touch
Door	Full glass, black, flap down opening
Handle	Smeg Classic, brushed stainless steel
Feet	Black
No. of cooking functions	8
Traditional cooking functions	Static; Fan assisted; Circulaire; ECO; Small grill; Large grill; Fan grill (large); Fan assisted base
Cleaning functions	Catalytic; Vapor Clean
Control lock	Yes
Limited Power Consumption Mode	Yes – 3000, 4500, 7400 W
Total no. of cook zones	4 (all with Booster)
Front left zone	Induction, single, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm
Rear left zone	Induction, single, 1.30 kW, Booster 1.40 kW, Ø 18.0 cm
Rear right zone	Induction, giant, 2.30 kW, Booster 3.00 kW, Ø 21.0 cm
Front right zone	Induction, single, 1.30 kW, Booster 1.40 kW, Ø 18.0 cm
Automatic switch off when overheat	Yes
Automatic pan detection	Yes
Minimum pan diameter indication	Yes
Selected zone indicator	Yes
No. of lights (oven)	2
Fan number	2
Net volume of the cavity	115 litres
Gross volume, 1st cavity	129 l
Cavity material	Easy clean enamel
Shelf positions	5
Type of shelves	Metal racks
Light type	Halogen, 40 W
Cooking time setting	Start and Stop
Light when oven door is open	Yes
Door opening	Flap down
Removable door	Yes
Full glass inner door	Yes
Removable inner door	Yes
Total no. of door glasses	2 (1 thermo–reflective)
Safety Thermostat	Yes
Cooling system	Tangential
Usable cavity space (HxWxD)	371x724x418 mm
Temperature control	Electro–mechanical
Lower heating element power	1700 W
Upper heating element – Power	1200 W
Grill element	1700 W, electric
Large grill – Power	2900 W
Circular heating element – Power	2 x 1550 W
Timer	Yes
End of cooking acoustic alarm	Yes
Minimum temperature	50 °C
Maximum temperature	260 °C
Chrome shelf with back and side stop	1 (included)
20 mm deep tray	1 (included)
Catalytic panels	1 (included)
Max Power Draw	10600 W
Current	46 A
Voltage	220–240 V
Voltage 2	380–415 V
Type of electric cable	Yes, Single phase
Additional connection modalities	Yes, Double and Three Phase
Frequency	50/60 Hz
Terminal block	5 poles

Additional Details and Usage

Cooking programmes

The oven provides eight traditional cooking functions: Static, Fan assisted, Circulaire, ECO, Small grill, Large grill, Fan grill (large) and Fan assisted base. Circulaire uses the fan and circular element to deliver hot air cooking, with benefits including reduced preheat for cook times over 20 minutes, no flavour transfer when cooking different foods together, lower energy use and shorter cook times. Fan assisted base combines fan and lower element to finish foods that are cooked on the surface but need more internal cooking.

Cleaning systems

Vapor Clean is a simple cleaning function that uses steam to loosen deposits in the oven cavity. Catalytic cleaning uses self–cleaning panels coated with a special enamel that promotes progressive elimination of grease and odours during cooking. The enamel interior has an antacid lining designed to reduce the amount of cooking grease adhering to the surface.

Hob functions and safety

The induction hob works on the principle of electromagnetic induction, generating heat directly in the pan base. A Power booster option allows a zone to work at full power when very intense cooking is necessary. The giant zone offers extra space and flexibility. Safety features include overheat protection with automatic hob switch off, automatic pan detection, minimum pan diameter indication, and a control lock. ECO–logic allows restriction of the power limit for energy saving.

Oven visibility and access

Two opposing side lights and halogen illumination increase visibility inside the oven. The oven cavity has 5 different cooking levels. The all glass inner door provides a flat surface that is simple to keep clean, and the inner glass can be removed with a few quick movements. The light turns on when the oven door is open.

Timer and controls

A touch timer display provides simple functionality, displaying the time, programmed cooking and the minute minder timer. Cooking time can be set with Start and Stop. A child lock device is available on some models, designed to lock the programme or cycle to prevent it from being accidentally changed; this is listed as SFLK1 in the compatible accessories.

Compatible Accessories

AIRFRY9 – Air fryer rack AIRFRY, ideal for recreating traditional frying in the oven with fewer calories and less fat, for dishes such as French fries, fried vegetables and fish, ensuring browning and crispiness.
AL90X9 – Upstand suitable for 90 cm Concert cookers SX91.
BBQ9 – Teflon–coated aluminium grid for 90 cm cavity.
BN920 – Enamelled tray 90 cm cavity, 20 mm deep.
BN940 – Enamelled tray 90 cm, 40 mm deep.
GTP – Partially extractable telescopic guides (1 level), extraction 300 mm, stainless steel AISI 430 polished.
GTT – Totally extractable telescopic guides (1 level), extraction 433 mm, stainless steel AISI 430 polished.
KIT600SNL-9 – Cover strip for hob back side, suitable for 90 cm Concert cookers.
KIT90X9-1 – Splash back, 90x60 cm, stainless steel, for Concert cookers.
KITH95 – Height extension kit (950 mm), stainless steel.
KITPDQ – Height reduction feet (850 mm), stainless steel, for cookers.
PALPZ – Pizza shovel with fold away handle, width 315 mm, length 325 mm.
SCRP – Induction and ceramic hobs and teppanyaki scraper.
SFLK1 – Child lock.
SMOLD – Set of 7 silicone moulds for ice creams, ice lollies, pralines, ice cubes or to portion food, usable from –60 °C to +230 °C.

Frequently Asked Questions

What is the oven capacity of the SMEG CX91IMBL?

The main oven has a net volume of 115 litres and a gross volume of 129 litres, with 5 shelf positions to accommodate different cooking levels.

How many cooking functions does the oven provide?

The oven offers 8 traditional cooking functions: Static, Fan assisted, Circulaire, ECO, Small grill, Large grill, Fan grill (large) and Fan assisted base.

Does the CX91IMBL have special cleaning features?

Yes. It features Vapor Clean, which uses steam to loosen deposits, and catalytic cleaning panels with a special enamel that helps progressively remove grease and odours. The easy clean enamel interior also helps reduce grease adhesion.

What safety features are included on the induction hob?

The hob includes a control lock, automatic switch off when the control unit overheats, automatic pan detection and minimum pan diameter indication. ECO–logic allows restriction of the appliance power limit for energy saving.

What are the electrical requirements for installation?

The maximum power draw is 10600 W with a current of 46 A. It operates at 220–240 V or 380–415 V, 50/60 Hz. It is supplied with a single phase electric cable and allows double and three phase connection via a 5–pole terminal block.

Which accessories are supplied as standard with the oven?

The cooker is supplied with a chrome shelf with back and side stop, one 20 mm deep tray and one catalytic panel for the oven cavity.
