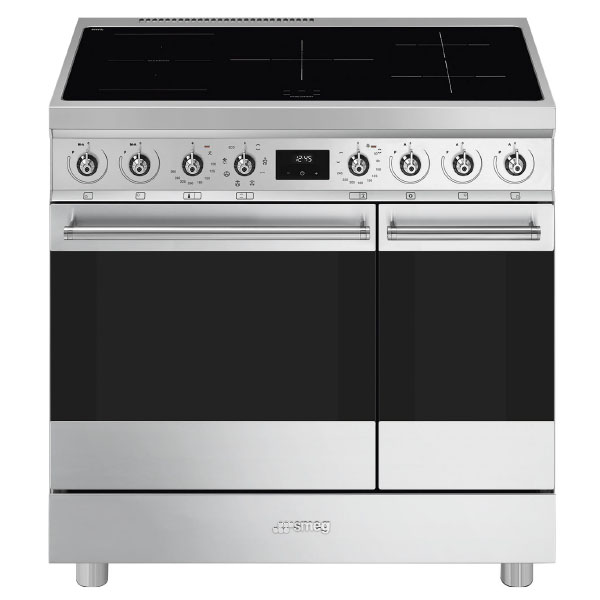

The Smeg Symphony C92IMX2 is a 90x60 cm stainless steel electric cooker with a five zone induction hob and two A–rated cavities. The main 70 litre thermo–ventilated oven offers eight cooking functions and Vapor Clean, while the 35 litre static auxiliary oven adds extra flexibility. With Classic Smeg controls, touch display, easy clean enamel interiors and a storage compartment, it is designed for users wanting efficient induction cooking and versatile oven performance.

Key Features

90x60 cm dual cavity electric cooker with two ovens carrying energy efficiency class A.
Induction hob with 5 zones including one flexible multizone and booster functions up to 3.00 kW.
Main thermo–ventilated oven with 70 litre net volume, Circulaire and eight cooking functions.
Auxiliary static oven with 35 litre net volume and three traditional functions: static, large grill, bottom.
Vapor Clean system in the main oven for assisted steam cleaning to help loosen food residue and spills.
Classic stainless steel design with Square design, Smeg Classic handle and control knobs in brushed stainless steel.
Easy clean enamel cavities with removable inner door glass and metal racks for straightforward maintenance.
Multilevel cooking with 5 shelf positions in the main oven and 4 in the auxiliary oven.
Halogen and incandescent lighting for excellent internal visibility across different levels.
Advanced induction safety with automatic switch off on overheat and overflow, automatic pan detection and residual heat indicators.
Touch display and timer with easy, intuitive setting and end of cooking acoustic alarm.
Storage compartment door providing additional space for accessories or cooking utensils.
Tangential cooling system and cold door concept to help maintain safe external temperatures.
Adjustable height feet enabling the cooker top to be flushed with the working area.
High power output with maximum power draw of 11000 W and ECO–logic option (as described in glossary) for energy saving.

Technical Specifications

Model	C92IMX2
Cooker size	90x60 cm
Number of cavities with energy label	2
Cavity heat source	Electric
Hob type	Induction
Type of main oven	Thermo–ventilated
Type of second oven	Static
Cleaning system – main oven	Vapor Clean
EAN code	8017709321321
Energy efficiency class – main cavity	A
Energy efficiency class – second cavity	A
Design	Square design, Symphony series, Classic aesthetics
Colour and finish	Stainless steel, matte finish; hob colour stainless steel
Command panel finish	Enamelled metal
Controls	Smeg Classic control knobs, stainless steel, 8 controls, touch display, slider red, serigraphy colour silver
Door and handle	Door with 2 horizontal strips, flap down opening, Smeg Classic handle, brushed stainless steel
Storage compartment	Door
Feet	Silver; adjustable height (as described in benefits)
Number of cooking functions – main oven	8 traditional cooking functions
Traditional functions – main oven	Fan assisted bottom + Vapor Clean, Static, Fan assisted, Circulaire, ECO, Large grill, Fan grill (large), Fan assisted base
Other functions – main oven	Defrost by time
Cleaning functions – main oven	Vapor Clean
Cooking functions – cavity 2	3 traditional cooking functions
Traditional functions – cavity 2	Static, Large grill, Bottom
Total number of cooking zones	5 induction zones
Number of flexible zones	1
Front left zone	Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm
Rear left zone	Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm
Central zone	Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm
Rear right zone	Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm
Front right zone	Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm
Automatic switch off when overheat	Yes
Automatic switch off when overflow	Yes
Automatic pan detection	Yes
Minimum pan diameter indication	Yes
Selected zone indicator	Yes
Residual heat indicator	Yes
Main oven net volume	70 litres
Main oven gross volume	79 l
Cavity material – main oven	Easy clean enamel
Shelf positions – main oven	5, metal racks
Lighting – main oven	1 halogen light, 40 W; light when oven door is open: Yes
Door glass – main oven	Total no. of door glasses 3; no. of thermo–reflective glasses 2; removable inner door; full glass inner door
Safety thermostat – main oven	Yes
Cooling system – main oven	Tangential
Usable cavity dimensions – main oven (HxWxD)	360x460x425 mm
Temperature control – main oven	Electro–mechanical
Lower heating element power – main oven	1200 W
Upper heating element power – main oven	1000 W
Grill element power – main oven	1700 W
Large grill power – main oven	2700 W
Circular heating element power – main oven	2000 W
Grill type – main oven	Electric
Timer and controls – main oven	Timer, cooking time setting Start and Stop, end of cooking acoustic alarm
Temperature range – main oven	Minimum temperature 50 °C; maximum temperature 260 °C
Net volume – second cavity	35 litres
Gross volume – second cavity	36 l
Cavity material – second oven	Easy clean enamel
Shelf positions – second oven	4, metal racks
Lighting – second oven	1 incandescent light, 25 W
Door glass – second oven	No. total door glasses 3; no. thermo–reflective door glasses 2; removable door; removable inner door; full glass inner door
Safety thermostat – second oven	Yes
Cooling system – second oven	Tangential
Usable cavity dimensions – second oven (HxWxD)	311x206x418 mm
Temperature control – second oven	Electro–mechanical
Lower heating element power – second oven	700 W
Upper heating element power – second oven	600 W
Grill element power – second oven	1300 W
Large grill power – second oven	1900 W
Grill type – second oven	Electric
Minimum & maximum temperature – second oven	Minimum temperature 50 °C; maximum temperature 245 °C
Options – main oven	Not stated in source
Options – auxiliary oven	Minimum temperature 50 °C (as listed)
Accessories included – main oven & hob	Chrome shelf with back and side stop (2); 40 mm deep tray (1); grill mesh (1); telescopic guide rails, partial extraction (1)
Accessories included – secondary oven	Chrome shelf with back and side stop (1); wide baking tray (1); grill mesh (1)
Max power draw	11000 W
Current	33 A
Voltage	220–240 V
Voltage 2	380–415 V
Type of electric cable	Yes, single phase
Additional connection modalities	Yes, double and three phase
Frequency	50/60 Hz
Terminal block	5 poles
Overall external dimensions	Not stated in source

Additional Details and Usage

Induction hob operation and safety

The induction hob works on the principle of electromagnetic induction, generating heat directly in the base of suitable cookware when in contact with the hob. It offers fast cooking and precise temperature control. Safety features include automatic switch off in case of overheating of the control unit, overfill protection which shuts down the hob in the presence of liquid overflow, automatic pan detection, minimum pan diameter indication and residual heat indication. When the temperature of a zone drops below 60 °C, the residual heat indicator goes out.

Oven cooking functions

The main thermo–ventilated oven offers functions including fan assisted base, fan with upper and lower elements, upper and lower element only, lower heating element only, Circulaire hot air, ECO, grill element and fan with grill element. These combinations are described as suitable for traditional roasting and baking, finishing foods that need extra base temperature, faster internal cooking with rotating heat, small quantity cooking and even browning when grilling chops, steaks, sausages and similar foods.

The auxiliary static oven provides static, large grill and bottom functions, offering additional capacity for conventional baking and grilling. The ovens feature multiple cooking levels, giving flexibility when preparing different dishes.

Vapor Clean and cavity care

The Vapor Clean function is an assisted steam clean programme designed to help loosen food residue and spills inside the main oven for easier cleaning. Both cavities have easy clean enamel interiors with an antacid lining that helps reduce the amount of grease adhering to the surface. All glass inner doors and removable inner door glass allow simple access for thorough cleaning.

Cooling, safety and door comfort

A tangential air cooling system helps ensure safe surface temperatures by directing airflow from the door to the splashback. Triple glazed doors with thermo–reflective glass support an isothermic cavity and cold door concept, described as keeping the external door glass cold during functions to avoid risk of burns. A safety thermostat is fitted in both cavities.

Lighting and visibility

Internal halogen lighting in the main oven and incandescent lighting in the auxiliary oven provide clear visibility, supporting multilevel cooking. The light in the main oven comes on when the door is opened, aiding monitoring of dishes without fully removing trays.

Controls, timers and ECO–logic

The touch timer display allows simple operation, showing the time, programmed cooking and minute minder. Timer functions include Start and Stop cooking time and an end of cooking acoustic alarm. The glossary describes an ECO–logic option which allows restriction of the power limit of the appliance for real energy saving; presence of ECO–logic on this specific model beyond the ECO cooking function is not stated in source.

Compatible accessories (optional)

A range of compatible accessories is listed, including a double sided BBQ plate (BBQ) for oven grilling, enamelled trays BN620–1 (20 mm) and BN640 (40 mm), a teflon–coated tray BNP608T, a universal griddle for induction, gas, ceramic and electric hobs (GRILLPLATE), partially and totally extractable telescopic guides (GTP, GTT), splashback KITC9X9–1, height extension and reduction kits (KITH900CPF9, KITH95CPF9, KITPBX), pizza shovel (PALPZ), scraper for induction and ceramic hobs and teppanyaki (SCRP), child lock (SFLK1), silicone mould set (SMOLD), refractory pizza stone (STONE) and universal plate for various hobs (TPKPLATE). These are described as compatible accessories and may be optional.

Frequently Asked Questions

What type of hob does the Smeg C92IMX2 have?

The appliance is equipped with an induction hob featuring a total of five cooking zones, including one flexible multizone. Induction cooking generates heat directly in the bottom of the pan through electromagnetic induction, offering fast cooking and precise temperature control.

How big are the ovens and what are their energy ratings?

The main oven has a net volume of 70 litres (79 l gross) and the auxiliary oven has a net volume of 35 litres (36 l gross. Both cavities carry energy efficiency class A.

What cleaning features are included?

The main oven includes a Vapor Clean function, an assisted steam clean programme designed to help loosen food residue and spills inside the cavity. Both ovens have easy clean enamel interiors with antacid lining, and the inner door glass is removable to facilitate cleaning.

What safety features are provided on the hob and ovens?

The hob has automatic switch off when overheating or overflow is detected, automatic pan detection, minimum pan diameter indication and residual heat indicators. Both ovens are equipped with a safety thermostat and tangential cooling system. Triple glazed doors with thermo–reflective glass support cold door operation as described in the benefits.

Which accessories are supplied as standard?

Supplied accessories for the main oven and hob include two chrome shelves with back and side stop, one 40 mm deep tray, one grill mesh and one set of partially extractable telescopic guide rails. The secondary oven is supplied with one chrome shelf with back and side stop, one wide baking tray and one grill mesh.

What is the maximum power draw and electrical connection?

The maximum power draw is 11000 W with a current of 33 A. The cooker is designed for 220–240 V and 380–415 V supplies, with a single phase electric cable and additional double and three phase connection modalities. Frequency is 50/60 Hz and the terminal block has five poles.
