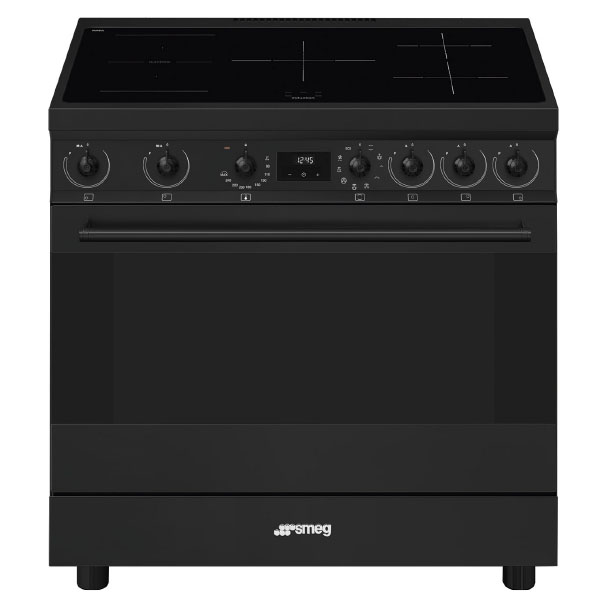

The Smeg Symphony C9IMN2 is a 90x60 cm matte black electric cooker with a 5-zone induction hob and a large 115 litre thermo-ventilated main oven. It offers 9 traditional cooking functions, Vapor Clean for easier cleaning and an A energy efficiency class. With Classic design details, Smeg control knobs and touch display, it suits users seeking a spacious, flexible cooker with multizone induction options and practical oven accessories included.

Key Features

Cooker size 90x60 cm for a large cooking surface and generous oven capacity.
Single electric cavity with energy label and thermo-ventilated main oven.
Energy efficiency class A for efficient electric oven performance.
Induction hob with 5 zones including multizone areas and Booster on all cooking zones.
Multizone option and automatic merge of zones for a bigger cooking area.
Large 115 litre net oven volume with 5 shelf positions and side lights for visibility.
9 traditional cooking functions including Static, Fan assisted, Circulaire, ECO, grills and Fan assisted base.
Vapor Clean system uses steam to loosen deposits in the oven cavity.
Easy clean enamel cavity with antacid lining to help reduce grease adhesion.
Induction safety features including automatic switch off when overheated, pan detection and residual heat indicators.
Control lock and child lock compatibility for added safety (child lock accessory SFLK1 available).
Limited Power Consumption Mode with selectable limits at 3700, 4800 or 7400 W.
Triple glazed door with 3 glasses, 2 thermo-reflective, removable inner door and full glass inner door.
Classic design aesthetics with matte black finish, Smeg Classic handle and control knobs.
Included oven accessories such as chrome shelf, trays, grill mesh and meat probe.
Wide temperature range from 50 °C to 260 °C with electro-mechanical control.
Max power draw 10600 W with 220–240 V or 380–415 V electrical connection.
Compatible accessories range including air fry rack, BBQ plates, enamelled trays and induction griddles.

Technical Specifications

Model	C9IMN2
EAN code	8017709336233

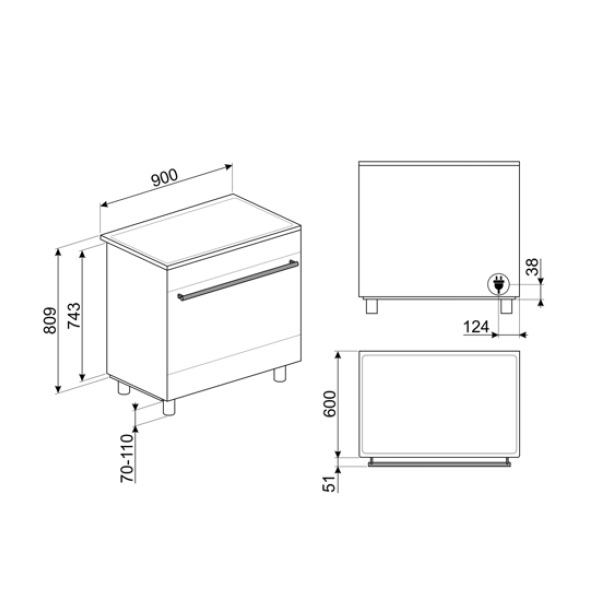

Cooker size	90x60 cm
No. of cavities with energy label	1
Cavity heat source	Electric
Hob type	Induction
Type of main oven	Thermo-ventilated
Cleaning system main oven	Vapor Clean
Energy efficiency class	A
Design	Square design
Aesthetics	Classic
Series	Symphony
Colour	Matte Black
Finishing	Matte
Hob colour	Anthracite
Type of control setting	Control knobs
Control knobs	Smeg Classic
Controls colour	Black
No. of controls	7
Serigraphy colour	Silver
Display	Touch
Slider	Red
Door design	With 2 horizontal strips
Glass type	Dark grey
Handle	Smeg Classic
Handle colour	Black
Storage compartment	Door
Feet	Black
Total no. of cook zones	5
No. of cooking zones with Booster	5
Number of Flexible zones	1
Front left zone	Induction – multizone – 2.10 kW – Booster 2.30 kW – 21.0x19.0 cm
Rear left zone	Induction – multizone – 1.60 kW – Booster 1.85 kW – 21.0x19.0 cm
Central zone	Induction – single – 2.30 kW – Booster 3.00 kW – Ø 27.0 cm
Rear right zone	Induction – single – 1.20 kW – Booster 1.40 kW – Ø 18.0 cm
Front right zone	Induction – single – 2.30 kW – Booster 3.00 kW – Ø 21.0 cm
Multizone option	Yes
Automatic switch off when overheat	Yes
Automatic pan detection	Yes
Minimum pan diameter indication	Yes
Selected zone indicator	Yes
Residual heat indicator	Yes
Net volume of the cavity	115 litres
Gross volume, 1st cavity	129 l
Cavity material	Easy clean enamel
Shelf positions	5
Type of shelves	Metal racks
Light type	Halogen
Light power	40 W
No. of lights	2
Fan number	2
Usable cavity space dimensions (HxWxD)	371x724x418 mm
Door opening	Flap down
Removable inner door	Yes
Removable door	Yes
Full glass inner door	Yes
Total no. of door glasses	3
No. of thermo-reflective door glasses	2
Safety thermostat	Yes
Cooling system	Tangential
Lower heating element power	1700 W
Upper heating element power	1200 W
Grill element	1700 W
Large grill power	2900 W
Circular heating element power	2 x 1550 W
Grill type	Electric
Temperature control	Electro-mechanical
Minimum temperature	50 °C
Maximum temperature	260 °C
Cooking time setting	Start and Stop
No. of cooking functions	9 (traditional cooking functions)
Defrost by time	Yes
Cleaning functions	Vapor Clean
Control lock	Yes
Limited Power Consumption Mode	Yes
Limited Power Consumption Mode in W	3700, 4800, 7400 W
Chrome shelf with back and side stop	1
20 mm deep tray	1
40 mm deep tray	1
Grill mesh	1
Meat probe	1
Timer	Yes
End of cooking acoustic alarm	Yes
Max power draw	10600 W
Current	46 A
Voltage	220–240 V
Voltage 2	380–415 V
Frequency	50/60 Hz
Terminal block	5 poles

Programmes, Functions and Usage

Traditional cooking functions

The cooker offers 9 traditional cooking functions:

Static (upper and lower element only)
Fan assisted (fan with upper and lower elements)
Circulaire (fan with circular element)
ECO
Small grill (half grill)
Large grill
Fan grill (large)
Base (lower heating element only)
Fan assisted base

Function descriptions

Upper and lower element only is a traditional method best suited for single items located in the centre of the oven.
Fan with upper and lower elements provides more uniform heat and is suitable for slow cooking methods.
Lower heating element only is ideal for foods that require extra base temperature without browning, such as pastry dishes and pizza.
Circulaire gives hot air cooking with no preheat if cook time is more than 20 minutes, no flavour transfer between dishes and shorter cook times.
ECO (grill, fan and lower element) is suitable for cooking small quantities of food.
Grill element is suitable for meat portions such as sausages and bacon.
Half grill (small grill) uses the centre of the grill element, ideal for smaller quantities.
Fan with grill element reduces fierce heat from the grill for even browning without drying out food.
Fan assisted base helps finish cooking foods already cooked on the surface but not internally.

Cleaning and maintenance

Vapor Clean is a simple cleaning function using steam to loosen deposits in the oven cavity.
The enamel interior has a special antacid lining to help keep the cavity clean by reducing cooking grease adhesion.
The all glass inner door provides a single flat surface which is simple to keep clean.
The inner door glass can be removed with a few quick movements for cleaning.

Safety and control features

Control lock to prevent accidental programme changes.
Overheat protection automatically turns off the hob in case of overheating of the control unit.
Indication of residual heat shows which heating zones remain hot until temperature drops below 60 °C.
Safety thermostat and tangential air cooling system help ensure safe surface temperatures.
Child lock is available via accessory SFLK1.

Hob usage

Induction hob generates heat directly in the base of the pan during its contact with the hob.
Power booster option allows a zone to work at full power when intense cooking is necessary.
Automatic pan detection and minimum pan diameter indication help correct use of induction zones.
ECO-logic option allows restriction of the power limit for real energy saving.

Compatible Accessories

A range of optional accessories is compatible with this cooker:

AIRFRY9 – Air fryer rack AIRFRY, ideal for recreating traditional frying in the oven with fewer calories and less fat, ensuring browning and crispiness.
BBQ – Double sided plate BBQ for succulent and crispy dishes with the typical taste of grilled cooking.
BBQ9 – Teflon-coated aluminium grid for 90 cm cavity.
BN920 – Enamelled tray 90 cm cavity, 20 mm deep.
BN940 – Enamelled tray 90 cm, 40 mm deep.
GRILLPLATE – Universal griddle for induction, gas, ceramic and electric hobs, non-stick surface, 410 x 240 mm.
GTP – Partially extractable telescopic guides (1 level), extraction 300 mm, stainless steel AISI 430 polished.
GTT – Totally extractable telescopic guides (1 level), extraction 433 mm, stainless steel AISI 430 polished.
KITC9X9-1 – Splashback, 90x75 cm, stainless steel, suitable for Portofino and Symphony cookers.
Height reduction feet – KITPBX for 850 mm height.
KITSB9MB – Not stated in source.
PALPZ – Pizza shovel with fold away handle, width 315 mm, length 325 mm.
SCRP – Induction and ceramic hobs and teppanyaki scraper.
SFLK1 – Child lock.
SMOLD – Set of 7 silicone moulds usable from -60 °C to +230 °C.
TPKPLATE – Universal plate for induction, gas, ceramic and electric hobs, non-stick, 410 x 240 mm.

Frequently Asked Questions

What is the oven capacity of the Smeg Symphony C9IMN2?

The main oven has a net volume of 115 litres and a gross volume of 129 litres, with 5 shelf positions to maximise usable space.

How many cooking functions does the oven have?

The cooker provides 9 traditional cooking functions, including Static, Fan assisted, Circulaire, ECO, Small grill, Large grill, Fan grill (large), Base and Fan assisted base.

Is this cooker energy efficient?

Yes. The appliance has an energy efficiency class A and features an ECO-logic option to restrict the power limit for energy saving.

What safety features does the induction hob include?

The hob offers automatic switch off when overheated, automatic pan detection, minimum pan diameter indication, selected zone indicators, residual heat indicators and overheat protection.

How is the oven cleaned?

The oven uses a Vapor Clean function, which applies steam to loosen deposits in the cavity. The easy clean enamel with antacid lining and all glass inner door further aid cleaning.

What accessories are included with the cooker?

Included accessories are 1 chrome shelf with back and side stop, 1 x 20 mm deep tray, 1 x 40 mm deep tray, 1 grill mesh and 1 meat probe.

Alternative Colours

Alternative products in the same family include C9IMMB2 in Matte Black and C9IMX2 in Stainless steel.
