The SIM3964MWH is a 90 cm built-in electric induction hob with an ultra-low profile or fully flushed installation. Finished in matte white Eclipse ceramic glass with a Classic aesthetic, it offers six induction cook zones, including three Multizone flexible areas. EVO Slider touch controls, nine power levels, booster options and keep warm and grill functions provide precise, versatile cooking. Advanced safety features and Auto-Vent 2.0 enhance everyday use and peace of mind.

Key Features

90 cm built-in induction hob with ultra-low profile or fully flushed installation.
Classic matte white aesthetic with matte Eclipse ceramic glass and straight edge.
6 induction cook zones in total, all with booster function and three Flexible Multizone areas.
Multizone function allowing several pans to be used at once, large or small, for greater flexibility.
EVO Slider touch control with slider control panel and red slider display, front positioned.
9 power levels plus booster, double booster on selected zones and rapid level selection.
Keep warm automatic function operating at minimum capacity for 120 minutes, then switching off automatically.
Grill function for specific cooking needs on compatible areas.
Auto-Vent 2.0 providing connection between hob and hood.
Automatic pan detection with minimum pan diameter of 9 cm and permanent automatic pot detection with indication of the relative control.
Automatic setting according to pan dimension to adapt the cooking area to the cookware.
Quick Start function where the chosen temperature is reached faster using maximum power initially.
Pause option and time elapsed indication showing how long the cooking zone has been in use.
End cooking timer for 6 zones plus minute minder and end of cooking acoustic alarm.
Residual heat indicator showing hot zones until temperature drops below 60 °C.
Advanced safety systems including control lock/child safety, protection against accidental start up, overheat protection and overfill protection with automatic switch off.
Limited Power Consumption Mode with adjustable power from 2400 to 11100 W in 100 W steps.
Main on/off switch for full hob control.
Show Room Demo option for demonstration purposes.
Compatible accessory SCRP – induction and ceramic hobs and teppanyaki scraper.

Technical Specifications

Product family	Hob
Model	SIM3964MWH
Built-in type	Ultra-low profile or Fully Flushed
Dimensions	90 cm

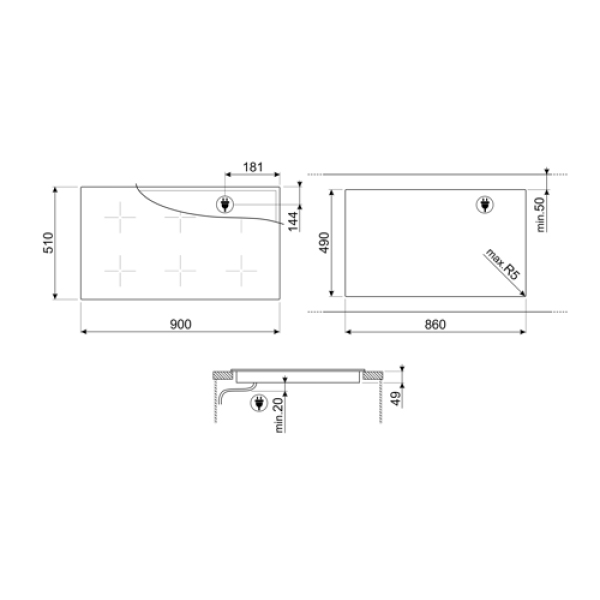

Standard cut out	490x860 mm
Power supply	Electric
Type	Induction
EAN code	8017709339678
Aesthetic style	Classic
Colour	Matte White
Finishing	Matte
Material	Glass
Glass type	Eclipse ceramic
Glass edge	Straight edge
Double ceramization	Yes
Control setting type	EVO Slider
Slider	Yes, Red
Control position	Front
Logo	Silk screen
Serigraphy colour	Black
Total number of cook zones	6
Number of induction cook zones	6
Number of cooking zones with booster	6
Number of Flexible zones	3
Flexible Zone type	MultiZone
Multizone option	Yes
Main on/off switch	Yes
Power levels	9
Auto-Vent 2.0	Yes
Time-setting options	Automatic switch-off
Keep warm automatic function	Yes
Grill function	Yes
End cooking timer	6
Minute minder	1
End of cooking acoustic alarm	Yes
Residual time indicator	Yes
Limited Power Consumption Mode	Yes advance
Limited Power Consumption Mode in W	2400 a 11100 – step 100 W
Show Room Demo option	Yes
Control lock / Child safety	Yes
Bridge option	Yes
Quick start	Yes
Rapid level selection	Yes
Automatic setting according to pan dimension	Yes
Automatic pan detection	Yes, min 9 cm
Permanent automatic pot detection	Yes, with indication of the relative control
Automatic switch off when overheat	Yes
Automatic switch off when overflow	Yes
Residual heat indicator	Yes
Protection against accidental start up	Yes
Nominal power	11100 W
Current	49 A
Voltage	220–240 V
Voltage 2	380–415 V
Type of electric cable	Three-phase; Single and Double phase
Type of electric cable supplied	Yes, Single and Double phase
Frequency	50/60 Hz
Power supply cable length	120 cm
Terminal box	5 poles
Front left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Rear centre zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – Double booster 3 kW – 22.0x18.0 cm
Front right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – 22.0x18.0 cm
Rear right zone	Induction – Multizone – 2.10 kW – Booster 2.50 kW – 22.0x18.0 cm
Multizone left	Booster 3.7 kW – 38.5x23.0 cm
Multizone centre	Booster 3.7 kW – 38.5x23.0 cm
Multizone right	Booster 3.7 kW – 38.5x23.0 cm

Additional Details and Usage

Cooking functions and operation

The hob uses induction based on the principle of electromagnetic induction, generating heat directly in the bottom of the pan during contact with the hob. Multizone allows several pans to be used at once, large or small, offering freedom of placement and greater flexibility. The power booster option lets a zone work at full power when very intense cooking is necessary. Quick Start reaches the chosen temperature faster by working at maximum power until the right temperature is reached. Quick selection with one touch starts cooking at the highest level and then automatically reduces after time, ideal for dishes requiring quick boiling and continued cooking.

The keep warm function keeps cooked food heated by operating at minimum capacity for 120 minutes before automatically turning off. A timer automatically ends cooking after a preset time, and time elapsed shows how long the cooking zone has been in use.

Safety and protection

The hob includes child lock to prevent programmes being accidentally changed, protection against accidental start up, overheat protection that turns off the hob in case of overheating of the control unit, and overfill protection that shuts down the hob in the presence of overflow of liquids. Residual heat indication shows which heating zones remain hot after switch off and goes out when the temperature drops below 60 °C.

Automatic switch off is provided when overheat or overflow is detected. Possibility to set the maximum power absorption of the hob is available via the Limited Power Consumption Mode.

Controls and usability

The Evolution Slider is totally back-lighted with a ghost effect. The slider control panel allows the power to be adjusted simply by passing a finger across the touch device. Rapid level selection enables quick setting of cooking power. Connection between hob and hood is available via Auto-Vent 2.0.

Installation and compatibility

The hob offers a perfect fit in a 90 cm cabinet and can be installed in ultra-low profile or fully flushed configurations. It supports three-phase, single and double phase electrical connection, with a supplied single and double phase cable and a 5 poles terminal box.

Frequently Asked Questions

How many cooking zones does the SIM3964MWH have?

The hob has a total of 6 induction cook zones, all of which have a booster function. There are also 3 Flexible MultiZone areas that can be used as Multizones.

What is the minimum pan size for this induction hob?

Automatic pan detection requires a minimum pot diameter of 9 cm for the zones to operate correctly.

Does the hob have child safety features?

Yes, the hob includes control lock/child safety, which locks the programme so it cannot be accidentally changed. It also has protection against accidental start up.

What safety features protect against overheating and spills?

Overheat protection automatically turns off the hob if the control unit overheats. Overfill protection shuts down the hob in the presence of overflow of liquids. There are also automatic switch off functions for overheat and overflow.

Can I limit the power consumption of the hob?

Yes, the hob has an advanced Limited Power Consumption Mode that allows the maximum power absorption to be set between 2400 and 11100 W in 100 W steps.

Is there a compatible accessory for cleaning?

The SCRP accessory is compatible and is described as an induction and ceramic hobs and teppanyaki scraper.

Alternative Models

Alternative products listed for this family include SIM3964D (Colour: Black), SIM3964MB (Colour: Matte Black) and SIM3964N (Colour: Matte Black).
