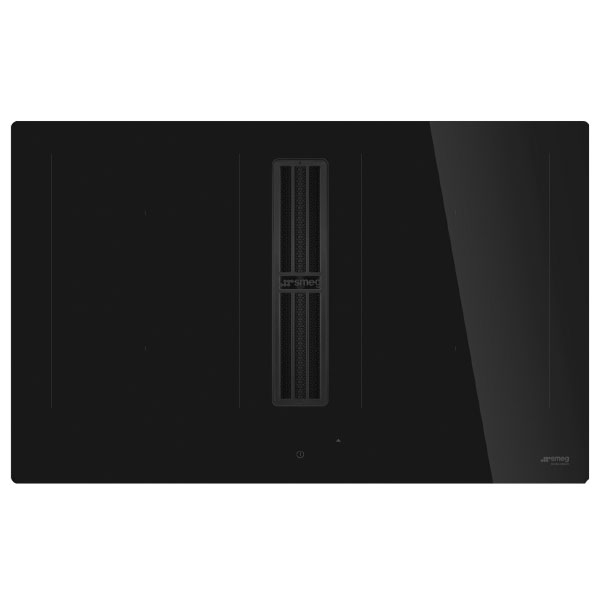

The SMEG HOBD482D2 is an 83 cm built–in electric induction hob with an integrated hood, designed for ultra–low profile or fully flushed installation. Finished in black ceramic glass with a universal aesthetic, it offers four induction cook zones, two MultiZone flexible areas and an A+ energy efficiency class. With advanced EVO Slider controls, automatic functions and powerful expulsion extraction, it suits users seeking a sleek, efficient cooking and ventilation solution in one appliance.

Key Features

Built–in induction hob with integrated hood – electric induction hob combined with extraction system in a single 83 cm unit.
Ultra–low profile or fully flushed installation – designed for seamless, built–in fit.
A+ energy efficiency class – supports efficient operation of the integrated hood.
Four induction cook zones – including 4 booster zones and 2 MultiZone flexible areas for varied pan sizes.
MultiZone flexible cooking – left and right multizones (39.0x21.0 cm) with booster up to 3.70 kW.
Powerful booster function – individual zones up to 3.00 kW and multizones up to 3.70 kW for intensive cooking.
EVO Slider touch controls – red back–lit slider with front control position for precise power adjustment.
9 power levels – with rapid level selection, quick start and automatic settings according to pan dimension.
Integrated hood with up to 650 m³/h free outlet capacity – 8 speeds plus 2 intensive speeds and Auto–Vent.
Stainless steel and charcoal filters included – stainless steel anti–grease filter and regenerable charcoal filters supplied.
Grease Filtering Efficiency 85.1 % (Class B) – supports effective capture of cooking grease.
Comprehensive safety features – control lock/child safety, residual heat indicator, protection against accidental start–up and automatic switch–off when overflow.
Convenience functions – keep warm automatic function, pause option, minute minder, end cooking timers and end of cooking acoustic alarm.
Limited power consumption mode – adjustable to 2800, 3500, 4500 or 7400 W.
Black ceramic glass finish – straight glass edge, glass material and stainless steel pan stands in a universal aesthetic.

Technical Specifications

Product family	Hob
Installation	Built–in, ultra–low profile or fully flushed
Dimensions	83 cm

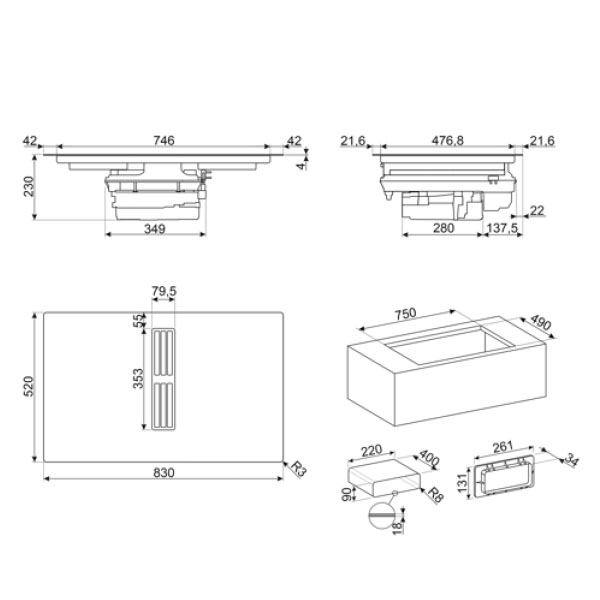

Standard cut–out	490x750 mm
Power supply	Electric
Type	Induction with integrated hood, extraction expulsion
Electronic control	Yes
Energy efficiency class (EEC)	A+
Aesthetics	Universal, black glass, ceramic glass type, straight glass edge
Material & pan stands	Glass hob surface, stainless steel pan stands
Controls	EVO Slider, red slider, front control knobs position, touch capacitive hood control, red LED hood display
Logo and serigraphy	Silk screen logo, serigraphy colour grey
Total number of cook zones	4 induction cook zones, all with booster, 2 flexible MultiZone areas
Front left zone	Induction – Multizone – 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Rear left zone	Induction – Multizone – 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Rear right zone	Induction – 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Front right zone	Induction – 2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Multizone left	Booster 3.70 kW – 39.0x21.0 cm
Multizone right	Booster 3.70 kW – 39.0x21.0 cm
Power levels	9 power levels with rapid level selection
Time–setting options	Automatic switch–off, 4 end cooking timers, minute minder, residual time indicator
Main on/off switch	Yes
Keep warm automatic function	Yes
Pause option	Yes
End of cooking acoustic alarm	Yes
Residual time indicator	Yes
Limited power consumption mode	Yes advance – 2800, 3500, 4500, 7400 W
Showroom demo option	Yes
Control lock / child safety	Yes
Cleaning option	Yes
Quick start / automatic functions	Quick start, rapid level selection, automatic setting according to pan dimension, automatic pan detection (min 9 cm), permanent automatic pot detection with indication of the relative control
Safety protections	Automatic switch–off when overflow, residual heat indicator, protection against accidental start–up
Integrated hood – control	Touch capacitive, red LED colour, display, delay function, Auto–Vent, delay time setting
Hood speeds	8 speeds plus 2 intensive speeds
Free outlet maximum capacity	650 m³/h
Hood motor power	220 W
Number of filters	1 anti–grease filter, stainless steel, charcoal filters included (regenerable), filter replacement indicator
Fluid Dynamic Efficiency (FDE)	32,10 (Class A FDEC)
Grease Filtering Efficiency (GFE)	85,1 % (Class B GFEC)
Lighting efficiency	Lighting Efficiency (LE) 0,0 lux/W – Lighting Efficiency Class (LEC) NA
Air flow (hood) – minimum speed Qmin	230 m³/h
Air flow (hood) – maximum speed Qmax	500 m³/h
Air flow (hood) – boost speed Qboost	630 m³/h
Sound power emission SPEmin / SPEmax / SPEboost	49 dBA (minimum), 68 dBA (maximum), 73 dBA (boost)
Time increase factor (F)	0,8
Energy Efficiency Index (hood)	44,2
Measured air flow at best efficiency point Qbep	328 m³/h
Measured air pressure at best efficiency point Qbep	502 Pa
Measured electric power input at best efficiency point Wbep	139 W
Sound power level at highest setting Lwa	68 dBA
Nominal power (hob)	7620 W
Current	33 A
Voltage	220–240 V; 380–415 V (Voltage 2)
Frequency	50/60 Hz
Type of electric cable supplied	Yes, single and double phase
Power supply cable length	120 cm
Terminal box	6 poles
Included accessories	Filtering kit and charcoal filter included; kit for recirculation and extraction included

Additional Details and Functions

Cooking Functions and Options

Multizone option and MultiZone flexible zone type for combining areas.
Keep warm automatic function.
End cooking timer for 4 zones and 1 minute minder.
Pause option to interrupt and resume cooking.
End of cooking acoustic alarm and residual time indicator.
Quick start and rapid level selection.
Automatic setting according to pan dimension.
Automatic pan detection, minimum 9 cm.
Permanent automatic pot detection with indication of the relative control.

Safety and Protection

Control lock / child safety.
Protection against accidental start–up.
Automatic switch–off when overflow.
Residual heat indicator.
Limited power consumption mode with selectable wattage.

Hood Performance by Speed

Extractor performance is specified according to IEC 61591 and IEC 60704–2–13:

Speed 1: 230 m³/h, 49 dBA, 280 Pa, 40 W.
Speed 2: 270 m³/h, 51 dBA, 400 Pa, 70 W.
Speed 3: 340 m³/h, 55 dBA, 400 Pa, 70 W.
Speed 4: 370 m³/h, 60 dBA, 450 Pa, 90 W.
Speed 5: 400 m³/h, 62 dBA, 500 Pa, 100 W.
Speed 6: 435 m³/h, 63 dBA, 550 Pa, 120 W.
Speed 7: 460 m³/h, 65 dBA, 600 Pa, 150 W.
Speed 8: 500 m³/h, 68 dBA, 620 Pa, 170 W.
Intensive speed: 540 m³/h, 70 dBA, 625 Pa, 180 W.
Intensive speed 2: 630 m³/h, 73 dBA, 630 Pa, 220 W.

Compatible Accessories (Optional)

The following compatible accessories are listed for ventilation and cooking enhancements:

CON60H – flat duct connector for tubes 220×60 mm.
CON90H – connector for rectangular tubes high 90 mm (external 227×94×63 mm, internal 223×90×63 mm).
FLTHOBD2 – 2 high–performance carbon filters, regenerable up to 8 times by dishwasher washing and drying at max 70°C in the oven for max 120 minutes.
FLTSTDHOBD2 – anti–odour filter, not regenerable, suitable for recirculation mode.
GRI60H – rectangular louvred grille, external 246×80 mm, internal 226×60×50 mm.
GRILLPLATE – universal griddle for induction, gas, ceramic and electric hobs, non–stick surface, 410×240 mm.
GRIX6H – stainless steel ventilation grille, 426×60 mm.
KITDT50X10 – tape for installation kit of HOBD*2, 10 m length, 50 mm width.
KITEHOBD10 – ducted kit for HOBD*2 with tubes and curve high 10 mm.
KITEHOBD4 – filtering kit (lateral outlet) optional for Hobd: tube 1.5 m and curve.
KITFIT15 – horizontal 15° pipe bend with moulded socket to adapt ventilation course.
KITFLEXP – flexible pipe, extension range 205–550 mm.
KITRDEF – 90° deflector for rectangular pipes and round pipes Ø 150 mm.
KITREBFLOW – rectangular grid for regulating air flow, suitable for HOBD*2 models.
KITRHOBD6 – mounting kit for recirculating installation for HOBD*2, for plinth minimum 6 cm height.
KITRRFIT – connection kit from round to rectangular, round pipe Ø 150 mm.
KITSEBL – squared grid with backdraft damper for regulating air flow, compatible with HOBD*2 models.
KRP1000 – round tube Ø 150 mm, 1 m long.
KRP500 – round tube Ø 150 mm, 50 cm long.
RED60H – reducer from 90 to 60 mm for rectangular tube 220 mm (220×90×92 mm).
TPK – stainless steel grill plate to cook Teppanyaki dishes.
TPKPLATE – universal plate for induction, gas, ceramic and electric hobs, non–stick surface, 410×240 mm.

Installation requirements beyond the dimensions and electrical connection data listed above are Not stated in source.

Frequently Asked Questions

How many cooking zones does the SMEG HOBD482D2 have?

It has a total of 4 induction cook zones, all equipped with booster function, and 2 flexible MultiZone areas that can be combined to accommodate larger cookware.

What is the size of the hob and the required cut–out?

The hob measures 83 cm and is designed for a standard cut–out of 490x750 mm, suitable for built–in ultra–low profile or fully flushed installation.

Does the hob have child safety features?

Yes. It includes a control lock / child safety function, protection against accidental start–up, automatic switch–off when overflow and a residual heat indicator.

What extraction performance does the integrated hood offer?

The hood provides a free outlet maximum capacity of 650 m³/h, with air flow from 230 m³/h at minimum speed up to 630 m³/h at intensive speed 2, depending on the selected speed setting.

Are filters supplied with the appliance?

Yes. The appliance includes a filtering kit and charcoal filter, a stainless steel anti–grease filter and charcoal filters that are regenerable, along with a filter replacement indicator.

What power supply is required?

The hob has a nominal power of 7620 W and operates at 220–240 V or 380–415 V, 50/60 Hz, with a current of 33 A. It is supplied with a single and double phase electric cable, 120 cm in length.
