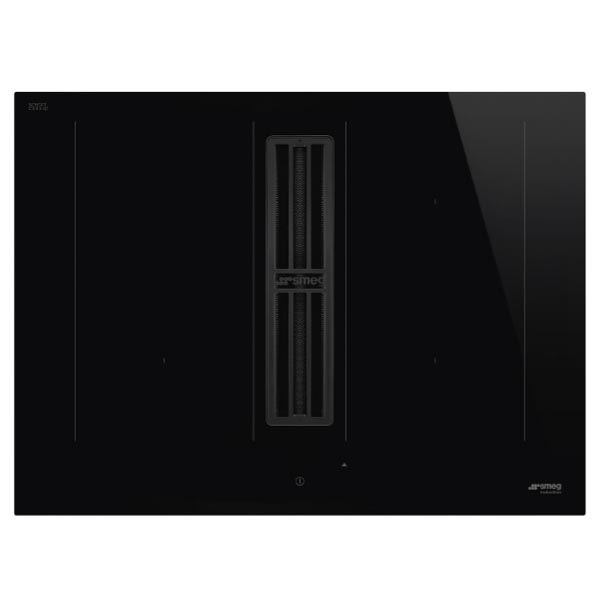

The SMEG HOBD472D2 is a 70 cm built-in, ultra–low profile or fully flushed electric induction hob with integrated hood, designed for universal kitchens seeking a sleek black ceramic glass finish. It offers four induction cook zones, flexible MultiZone cooking, and an efficient A+ energy–rated extraction system. With EVO Slider touch controls, multiple power levels, booster options and comprehensive safety features, it delivers powerful, precise cooking and effective vapour extraction in one appliance.

Key Features

Built-in 70 cm induction hob with integrated hood for ultra–low profile or fully flushed installation.
Four induction cook zones with booster on all zones and a total of two MultiZone flexible areas.
MultiZone flexible cooking allows several pans of different sizes to be used with greater placement freedom.
EVO Slider touch controls with red backlighting on the front for intuitive power adjustment.
Integrated extraction with expulsion system, 8 speeds plus 2 intensive speeds and Auto–Vent.
Energy efficiency class A+ for the appliance and fluid dynamic efficiency class A for the hood.
High extraction performance with free outlet maximum capacity of 650 m³/h and boost airflow up to 630 m³/h.
Grease filtering efficiency 85.1 % with stainless steel anti–grease filter and regenerable charcoal filters included.
Keep warm automatic function to maintain cooked food heated for up to 120 minutes before automatic switch–off.
Quick Start and rapid level selection to reach the chosen temperature faster and simplify power adjustments.
Permanent automatic pot detection with minimum pot diameter of 9 cm and indication of the relative control.
Advanced safety with control lock/child safety, protection against accidental start up and automatic switch–off when overflow occurs.
Residual heat and time indicators to show remaining heat and elapsed cooking time for each zone.
Limited power consumption mode with selectable limits at 2800, 3500, 4500 and 7400 W.
Black ceramic glass surface with straight edge design and stainless steel pan stands.
Filtering kit and charcoal filter included, with additional compatible accessories available separately.

Technical Specifications

Product family	Hob
Model	HOBD472D2
Installation	Built-in, ultra–low profile or fully flushed
Dimensions	70 cm

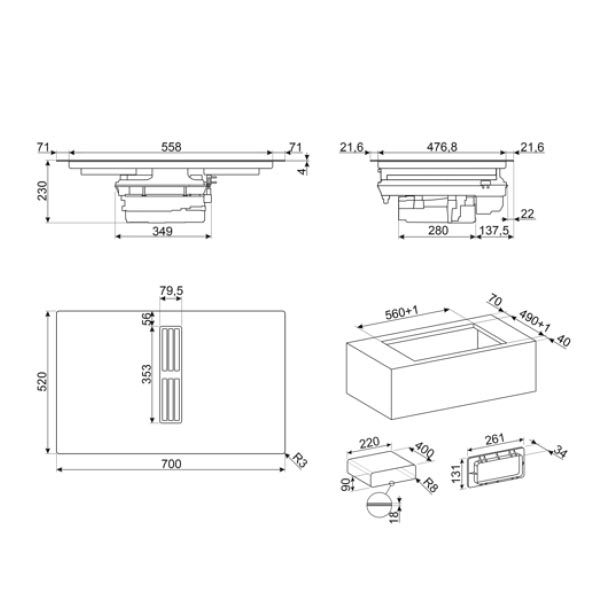

Standard cut-out	490x560 mm
Power supply	Electric, single and double phase cable supplied
Type	Induction with integrated hood, extraction expulsion
Electronic control	Yes
Energy efficiency class (EEC)	A+
Aesthetics	Universal
Colour / finishing	Black, glass
Material / glass type	Glass, ceramic, straight edge
Pan stands	Stainless steel
Controls	EVO Slider, slider red, front control position, touch capacitive hood control, display
Serigraphy / logo	Serigraphy colour grey, silk screen logo
Number of induction cook zones	4 (total cook zones 4)
Zones with booster	4 with booster
Flexible zones	2 MultiZone flexible zones
Front left zone	2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Rear left zone	2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Rear right zone	2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Front right zone	2.10 kW – Booster 3.00 kW – 21.0x19.0 cm
Multizone left	Booster 3.70 kW – 39.5x22.0 cm
Multizone right	Booster 3.70 kW – 39.5x22.0 cm
Power levels	9
Main on/off switch	Yes
Time-setting options	Automatic switch–off, end cooking timer 4, minute minder 1
Showroom demo option	Yes
Nominal power	7620 W
Current	33 A
Voltage	220–240 V; 380–415 V (Voltage 2)
Frequency	50/60 Hz
Power supply cable length	120 cm
Terminal box	6 poles
Free outlet maximum capacity	650 m³/h
Air flow minimum (Qmin)	230 m³/h
Air flow maximum (Qmax)	500 m³/h
Air flow boost (Qboost)	630 m³/h
Motor power (hood)	220 W
Number of speeds	8 speeds + 2 intensive speeds
Noise level minimum (SPEmin)	49 dBA
Noise level maximum (SPEmax)	68 dBA
Noise level boost (SPEboost)	73 dBA
Fluid Dynamic Efficiency (FDE)	32.10 (class A)
Grease Filtering Efficiency (GFE)	85.1 % (class B)
Energy Efficiency Index	44.2
Measured air flow at best efficiency point (Qbep)	320 m³/h
Measured air pressure at best efficiency point (Qbep)	502 Pa
Measured electric power input at best efficiency point (Wbep)	139 W
Sound power level at highest setting (Lwa)	68 dBA
Time increase factor (F)	0.8
Anti-grease filters	Stainless steel
Charcoal filters	Included, regenerable
Filter replacement indicator	Yes
Lighting efficiency class (LEC)	NA (Lighting efficiency 0.0 lux/W)
LED colour (controls)	Red
Accessories included	Filtering kit and charcoal filter included; filter kit included (hood)
Limited power consumption mode	Yes, advanced; 2800, 3500, 4500, 7400 W

Programmes, Functions and Safety

Cooking functions

Keep warm automatic function operates at minimum capacity for 120 minutes, then turns off automatically.
End cooking timer for up to 4 zones and a separate minute minder.
Pause option to temporarily halt cooking.
Quick Start function: heating element works at maximum power until the set temperature is reached.
Rapid level selection for fast adjustment of power levels.
Automatic setting according to pan dimension and automatic pan detection (minimum 9 cm).
Permanent automatic pot detection with indication of the relative control.

Safety features

Control lock / child safety to prevent accidental programme changes.
Protection against accidental start up.
Automatic switch–off when overflow is detected.
Residual heat indicator shows which zones remain hot until temperature drops below 60 °C.
Residual time and time elapsed indicators for precise control.
Limited power consumption mode to set the maximum power absorption of the hob.

Hood controls and functions

Touch capacitive hood control with red LED and display.
8 speeds plus 2 intensive speeds for powerful extraction.
Delay function and hood time setting (delay) to continue extraction after cooking.
Auto–Vent for automatic management of extraction (as stated).
Filter replacement indicator to signal maintenance needs.

Cleaning and maintenance

Cleaning option available on the hob.
Stainless steel anti–grease filters and regenerable charcoal filters included.
Symbol glossary notes that certain high–performance carbon filters (e.g. FLTHOBD2) can be regenerated up to 8 times by dishwasher washing and oven drying at max 70 °C for max 120 minutes.

Frequently Asked Questions

How many cooking zones does the SMEG HOBD472D2 have?

The hob has a total of 4 induction cook zones, all equipped with booster functionality. There are also 2 flexible MultiZone areas that can combine zones for larger cookware.

What is the minimum pot size that can be used?

The automatic pan detection system works with a minimum pot diameter of 9 cm, and permanent automatic pot detection indicates the corresponding control for each pan.

Does the hob include extraction filters?

Yes. A filtering kit and charcoal filter are included, along with stainless steel anti–grease filters. The charcoal filters are regenerable, and a filter replacement indicator is provided.

What safety features are provided for families with children?

The hob includes a control lock/child safety function, protection against accidental start up, automatic switch–off when overflow occurs, and residual heat indicators to show when zones remain hot.

Can the power consumption of the hob be limited?

Yes. There is an advanced limited power consumption mode that allows you to set maximum power absorption at 2800, 3500, 4500 or 7400 W.

What accessories are compatible with this model?

Compatible accessories include duct connectors (CON60H, CON90H), carbon and anti–odour filters (FLTHOBD2, FLTSTDHOBD2), ventilation grilles (GRI60H, GRIX6H, KITREBFLOW, KITSEBL), ducting and mounting kits (KITEHOBD10, KITEHOBD4, KITDT50X10, KITRHOBD6, RED60H), and cooking plates such as GRILLPLATE, TPK and TPKPLATE.
