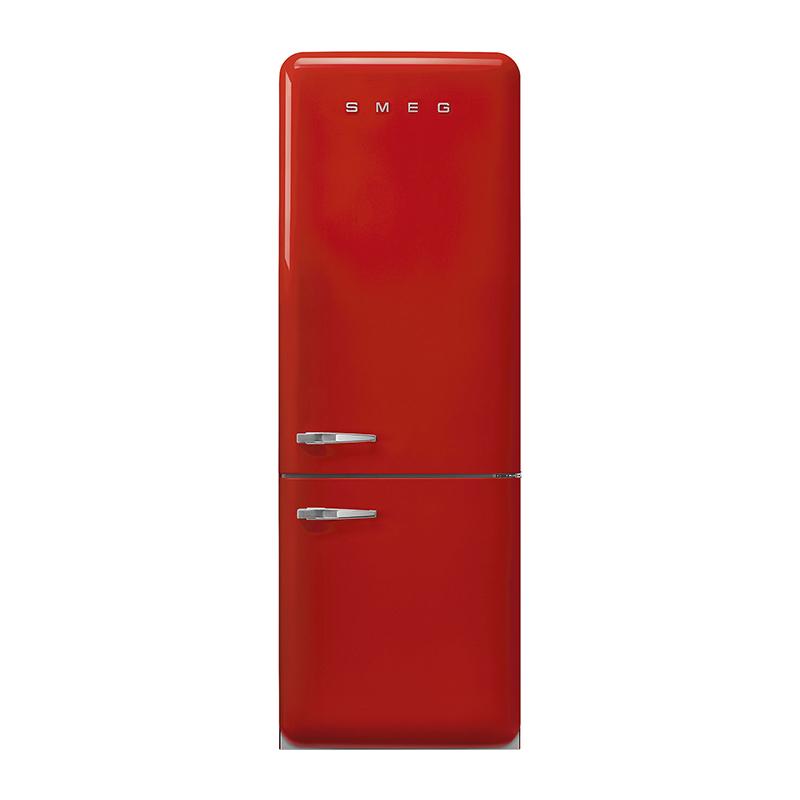

The SMEG FAB38RRD5 is a free standing bottom mount refrigerator in a 50’s Style design with a gloss red finish and chrome details. It offers Total No Frost with a double cooling system, automatic defrost and electronic temperature control. With a 481 l total volume, LED interior lighting, fast freezing and humidity control, it is suited to users seeking generous storage, easy maintenance and distinctive aesthetics in a 60–70 cm width appliance taller than 200 cm.

Key Features

Free standing bottom mount design with refrigerator above and freezer compartment below for convenient everyday access.
Total No Frost – Double Cooling system with automatic defrost to eliminate manual defrosting.
50’s Style aesthetics featuring rounded design, gloss red colour and chrome handle and logo.
Generous 481 l total volume including 344 l chill and unfrozen space and 137 l frozen compartment capacity.
LED display and interior LED lighting for clear visibility of settings and excellent internal illumination.
Electronic temperature control with functions display for fast freezing, ECO mode and temperature alarm.
Flexible refrigerator storage with 3 adjustable glass shelves, 1 fruit and vegetable drawer and low temperature compartment.
Humidity Control and MultiFlow with fan to support even cold air distribution in the fridge compartment.
Freezer with 2 drawers and manual ice maker plus fast freezing compartment and 4 star freezing performance.
Door open and temperature alarms with acoustic and visual alerts for added convenience.
Energy efficiency class E with annual energy consumption of 282 kWh/year.
Quiet operation with a noise level of 41 dB(A) re 1 pW and airborne acoustical noise emission class C.
Variable Speed Compressor using R600a refrigerant and cyclopentane foam agent.
Reversible alternatives in the same family available in white, pastel green, pastel blue, cream and black (all right hinge).

Technical Specifications

Product family	Refrigerator
Model	FAB38RRD5
Installation	Free Standing
Category	Bottom Mount
Reference width	60 – 70 cm
Reference height	Higher than 200 cm
No-Frost system	Total
Cooling type	Total No Frost – Double Cooling system
Defrost	Automatic
Hinge type / position	Standard – Right
EAN code	8017709297916
Aesthetic style	50’s Style
Colour / finish	Red, Gloss
Design	Rounded
Main material	Heat-moulded
Handle	External, fixed, chrome colour
Side material / colour	Steel, Red
Logo	Applied, chrome colour
Door shelves profile colour	Silver
Drawers profile colour	Silver
Glass shelf profile colour	Silver
Display	LED, interior position
Refrigerator compartments	2 – low temperature compartment, fruit and vegetable compartment
Adjustable fridge shelves	3, glass
Fruit and vegetable drawers	1 with glass cover on sliding rails
Crisper cover	Yes, glass
Fridge internal lights	2 LED lights
Humidity Control	Yes
MultiFlow / Fan	MultiFlow, Fan: Yes
Adjustable door shelves	3
Bottle shelves	1
Freezer drawers	2
Freezer shelves	2, glass
Freezer compartments with flap	1
Ice maker	Manual
Fast freezing compartment	Yes
Functions display	Fast freezing, ECO, Temperature alarm
Fast freezing button	Yes
Temperature alarm lamp	Yes
Door open alarm	Acoustic and visual
Temperature control	Electronic
Compressors	1 – Variable Speed Compressor
Refrigerant gas / quantity	R600a, 45 g
Foam agent	Cyclopentane
Annual energy consumption	282 kWh/year
Energy efficiency class	E (EEI 98 %)
Airborne acoustical noise emission class	C
Noise level	41 dB(A) re 1 pW
Total volume	481 l
Frozen compartment volume	137 l
Chill and unfrozen compartments volume	344 l
Thaw time	14 h
Freezing capacity	8 kg/24h (4 star – freezing compartment)
Climatic class	SN, N, ST, T
Nominal power	127 W
Current	1,1 A
Voltage	220–240 V
Frequency	50/60 Hz
Power supply cable length	180 cm
Plug type	(F;E) Schuko
Width	706 mm
Depth without handle	771 mm
Product height with feet	2050 mm
Product width with maximum doors opening	1070 mm
Product depth with handle	811 mm
Product depth with doors open at 90°	1340 mm
Spacer depth	32 mm

Additional Details and Functions

The appliance uses Total No Frost technology with automatic defrost, so manual defrosting is not required. Forced distribution of cold air in the refrigerator compartment ensures even temperature distribution.

Fast freezing reduces the temperature of the freezer compartment when activated a few hours before use, while the 4 star freezing compartment supports better food preservation. An ECO (economical) mode analyses fridge functioning during activation and optimises the operating cycle to reduce power consumption.

LED interior lighting provides an energy efficient, long lasting way of illuminating the interior. Door open and temperature alarms, both acoustic and visual, help alert users to operating conditions.

Frequently Asked Questions

Does this fridge freezer require manual defrosting?

No. It features a Total No Frost system with automatic defrost, which works by automatically defrosting at regular intervals, eliminating the need to defrost altogether.

What is the total capacity of the SMEG FAB38RRD5?

The total volume is 481 l, with 344 l allocated to the chill and unfrozen compartments and 137 l to the frozen compartment.

What is the energy efficiency rating and annual consumption?

The appliance has an energy efficiency class E with an EEI of 98 % and an annual energy consumption of 282 kWh/year.

How noisy is the appliance during operation?

The noise level is 41 dB(A) re 1 pW and it is classified in airborne acoustical noise emission class C.

What special functions are available on the display?

The LED display shows programmes, functions and options. Functions include fast freezing, ECO (economical) mode and a temperature alarm.

What are the main dimensions of this model?

The width is 706 mm, depth without handle 771 mm, product depth with handle 811 mm and product height with feet 2050 mm. With doors open at 90°, the depth is 1340 mm.
