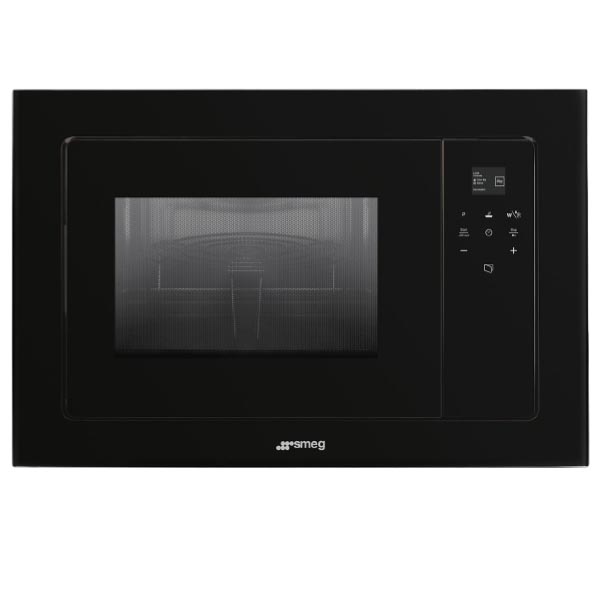

The SMEG FMI120B3 is a built–in electric microwave with grill, designed for installation with a frame. It features a stainless steel cavity with 20 l usable volume, touch electronic controls and a TFT display with electronic timer. With 800 W microwave power, 1000 W quartz grill and quick start option, it offers fast cooking and browning, while child safety lock and double glazed side–opening door enhance everyday safety.

Key Features

Built–in microwave with grill for installation with frame and electric power supply.
Microwave with grill cooking method combining microwave energy and grill element for cooking and browning.
Electronic touch controls with TFT display / clock for easy programming and clear time display.
Quick start option to begin cooking rapidly.
Controls lock / child safety to prevent programmes being accidentally changed.
Stainless steel cavity with 2 shelf positions and usable volume of 20 l.
Quartz grill with 1000 W grill power for grilling smaller and medium portions.
Microwave effective power 800 W to shorten cooking times and support defrosting.
Side–opening door with 2 glazed glasses and microwave screen protection.
Turntable included with 24,5 cm diameter for even cooking.
Electronic timer with end of cooking options and acoustic alarm.
Limited power consumption mode and showroom demo option available.
Internal lighting with 1 incandescent 20 W light.
Tangential cooling system to help manage appliance temperature.
Oven cavity with 2 cooking levels offering flexible shelf positioning.
Microwave stops when door is opened for added safety.

Technical Specifications

Model	FMI120B3
Product family	Microwave
Category	Built–in
Installation	With frame
Power supply	Electric
Cooking method	Microwave with grill
Control type	Electronic – Touch control
Display / clock	TFT
Door opening	Electrical button – Side–opening
Timer	Electronic – Time–setting options: End cooking
End of cooking acoustic alarm	Yes
Limited power consumption mode	Yes
Showroom demo option	Yes
Controls lock / child safety	Yes
Quick start option	Yes
Cavity material	Stainless steel
Shelf positions	2
Shelves type	Rack
Number of lights	1
Light type / power	Incandescent – 20 W
Turntable	Yes – 24,5 cm diameter
Grill type	Quartz
Grill power	1000 W
Total number of door glasses	2 (double glazed doors)
Cooling system	Tangential
Microwave screen protection	Yes
Microwave stops when door is opened	Yes
Usable cavity space dimensions (H×W×D)	210x305x280 mm
Usable volume	20 l
Gross volume	21 l
Microwave effective power	800 W
Nominal power	1300 W
Current	5,2 A
Voltage	230 V
Frequency	50 Hz
Power supply cable length	150 cm
Accessories included	Grid 1 – Frame Yes
Performance / Energy label	Not stated in source

Functions and Usage

Microwave energy shortens cooking times dramatically and produces energy savings. Penetrating straight into the food, microwaves cook very quickly and are suitable for cooking without fat. They are able to thaw and heat food without altering its original appearance and aroma.

The grill element gives excellent results when cooking meat in medium and small portions, and is also ideal for cooking sausages and bacon. The microwave + grill element function allows perfect browning of the surface of the food while microwaves cook the internal part in a short time.

Defrost by time determines the thawing time of foods automatically, while defrost by weight determines the defrosting time based on the weight of the food. The oven cavity has 2 different cooking levels, and the capacity indicates the amount of usable space in litres.

Touch controls allow the appliance to be programmed at the touch of a button. Child lock can be used so the programme or cycle cannot be accidentally changed.

Frequently Asked Questions

What is the usable capacity of the SMEG FMI120B3?

The usable volume of the SMEG FMI120B3 is 20 l, while the gross volume is 21 l. The capacity indicates the amount of usable space in the oven cavity in litres.

Does this microwave have a child lock?

Yes. The appliance is fitted with controls lock / child safety. This device locks the programme or cycle so it cannot be accidentally changed.

What cooking functions are available?

The appliance uses microwave energy for rapid cooking, heating and defrosting, and includes a grill element. It also offers a microwave + grill element function, combining grilling for surface browning with microwaves to cook the internal part of the food quickly.

How does defrosting work on this model?

Two defrost functions are available: defrost by time, where the thawing time is determined automatically, and defrost by weight, where the defrosting time is determined based on the weight of the food.

What safety features are included?

Safety features include controls lock / child safety, double glazed doors, microwave screen protection and automatic stopping of the microwave when the door is opened. The tangential cooling system also helps manage appliance temperature.

Alternative Product

An alternative model listed is FMI120G with colour Neptune Grey. Further details for this model are not stated in source.

FMI120B3

Smeg FMI120 Linea Microwave & Grill
