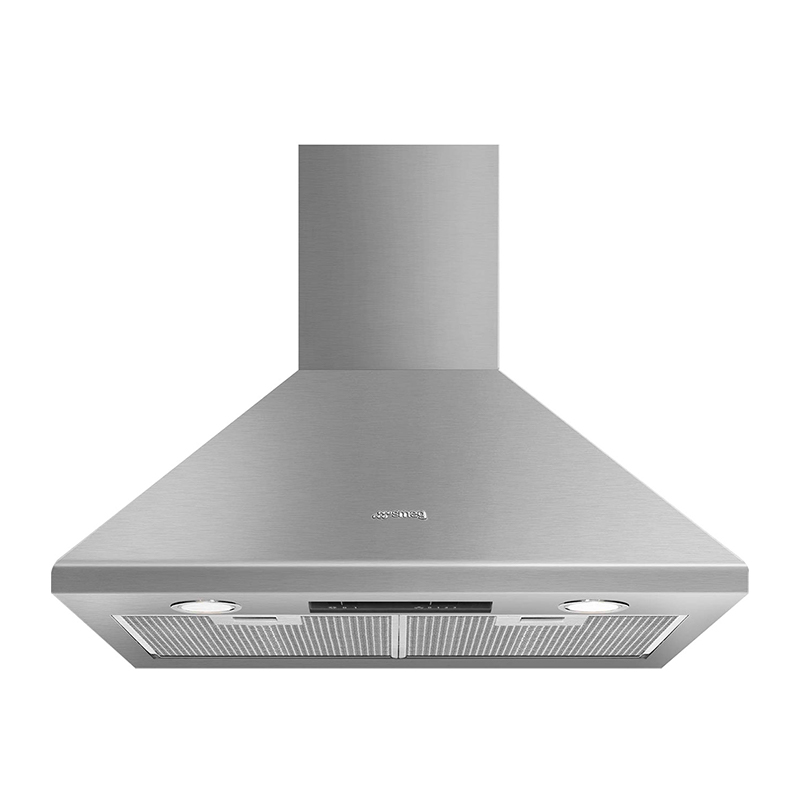

The SMEG KSED65XE is a 60 cm stainless steel chimney cooker hood designed for ducted or re-circulation extraction. With a universal aesthetic and brushed finish, it features slider controls with 3 speeds, efficient LED lighting and aluminium anti-grease filters. Offering a maximum extraction rate of 635 m³/h and B energy efficiency, it is suited to users seeking effective steam and grease removal with clear illumination of the cooking area.

Key Features

60 cm chimney cooker hood in brushed stainless steel with universal aesthetics.
Ducted out or re-circulation extraction possible for flexible installation.
Slider controls with 3 speeds to adjust extraction performance.
Maximum extraction rate 635 m³/h with free outlet maximum capacity 600 m³/h.
LED lighting with 2 lights, 1 W each, 4000 K colour temperature for cooking area illumination.
Aluminium anti-grease filters to help remove grease from steam during cooking.
Energy efficiency class B with annual consumption of 60 kWh/year.
Lighting Efficiency Class A with lighting efficiency of 100,2 lux/W.
Noise levels from 53 to 67 dBA depending on selected speed.
Non return valve included and 150 mm vent outlet.
Minimum installation distances of 750 mm from gas hobs and 650 mm from electric hobs.
Alternative colour options available in White (KSED65BE), Black (KSED65NE) and Cream (KSED65PE).

Technical Specifications

Product family	Hood
Hood type	Chimney Cooker Hoods
Design	Chimney
Aesthetics	Universal
Colour	Stainless steel
Finishing	Brushed
Material / type of steel	Stainless steel, brushed
Logo	Embossed
Model	KSED65XE
EAN code	8017709206079
Hood width	60 cm
Controls	Slider
Number of speeds	3
Number of lights	2
Light type	LED
Light power	1 W
Light colour temperature	4000 K
Normal power of the light system (Wl)	2 W
Average illumination on cooking surface (Emiddle)	221 lux
Extraction	Ducted out or re-circulation possible
Free outlet maximum capacity	600 m³/h
Air flow at minimum speed (Qmin)	351 m³/h
Maximum extraction rate	635 m³/h
Extraction rate IEC 61591 – speed 1	351 m³/h
Extraction rate IEC 61591 – speed 2	420 m³/h
Extraction rate IEC 61591 – speed 3	635 m³/h
Noise level IEC 60704-2-13 – speed 1	53 dBA
Noise level IEC 60704-2-13 – speed 2	57 dBA
Noise level IEC 60704-2-13 – speed 3	67 dBA
Airborne acoustical A–weighted sound power emission at minimum speed (SPEmin)	53 dBA
Airborne acoustical A–weighted sound power emission at maximum speed (SPEmax)	67 dBA
Sound power level at highest setting (Lwa)	67 dBA
Motor power	200 W
Measured air flow rate at best efficiency point (Qbep)	355 m³/h
Measured air pressure at best efficiency point (Qbep)	385 Pa
Measured electric power input at best efficiency point (Wbep)	146 W
Number of filters	2
Anti-grease filters	Aluminium
Vent outlet	150 mm
Non return valve	Yes
Minimum distance from gas hob	750 mm
Minimum distance from electric hob	650 mm
Annual efficiency consumption (AEChood)	60 kWh/year
Energy efficiency class (EEC)	B
Fluid Dynamic Efficiency (FDE)	26
Fluid Dynamic Efficiency class (FDEC)	B
Lighting Efficiency (LE)	100,2 lux/W
Lighting Efficiency Class (LEC)	A
Grease Filtering Efficiency (GFE)	74,4 %
Grease Filtering Efficiency Class (GFEC)	D
Time increase factor (F)	1,1
Energy Efficiency Index per first cavity	62,2
Nominal power	202 W
Voltage	220–240 V
Frequency	50–60 Hz
Power supply cable length	1000 mm
Alternative colours available	White, Black, Cream
Available colour models	KSED65BE – KSED65NE – KSED65PE

Additional Details and Usage

The hood includes aluminium anti-grease filters to help remove grease from the steam emanating from pans during cooking. All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen, and this model uses LED lighting.

When installing, the minimum distance from a gas hob should be 750 mm, and the minimum distance from an electric hob should be 650 mm. The unit is suitable for ducted extraction via a 150 mm vent outlet or for use in re-circulation mode.

A non return valve is provided to help prevent backflow of air when the hood is not in operation.

Compatible Accessories

FLT6 – Round charcoal filters (kit 2 pieces).
KITALLFC – Universal charcoal filter, Stainless Steel AISI 304. The filter can be washed in a dishwasher at 50 °C (water and suitable detergent) and to dry it, put in the oven at 180 °C for 25 minutes.

Frequently Asked Questions

Can this hood be used with both ducted and recirculation setups?

Yes. Extraction can be ducted out or operated in re-circulation mode. The hood has a 150 mm vent outlet and is compatible with charcoal filter accessories such as FLT6 and KITALLFC for recirculation use.

What are the minimum installation heights above the hob?

The minimum distance from a gas hob is 750 mm, and the minimum distance from an electric hob is 650 mm.

How many speeds and what extraction rates does it offer?

The hood has 3 speeds controlled by a slider. Extraction rates are 351 m³/h at speed 1, 420 m³/h at speed 2 and 635 m³/h at speed 3 (IEC 61591).

How loud is the SMEG KSED65XE during operation?

Noise levels are 53 dBA at speed 1, 57 dBA at speed 2 and 67 dBA at speed 3 according to IEC 60704-2-13. The airborne acoustical A–weighted sound power emission ranges from 53 dBA at minimum speed to 67 dBA at maximum speed.

What is the energy efficiency rating of this hood?

The hood has an energy efficiency class B with an annual efficiency consumption of 60 kWh/year. Lighting Efficiency Class is A, and Fluid Dynamic Efficiency Class is B.

What lighting does the hood use?

It uses 2 LED lights rated at 1 W each, with a colour temperature of 4000 K. The normal power of the light system is 2 W, providing an average illumination of 221 lux on the cooking surface.
